Nitecore UT32 Ultra Compact Coaxial Dual Output Headlamp Specially Designed for Trail Running
4.5 out of 5 based on 212 user ratings

Nitecore UT32 Ultra Compact Coaxial Dual Output Headlamp Specially Designed for Trail Running

by: Nitecore

CAD USD

Please notify us if you want to pay in USD. We will email you a separate Paypal invoice in USD.



Secure payments by:Pay with Paypal, Visa or Mastercard


Don't Forget your battery

Combo #1  No Battery.

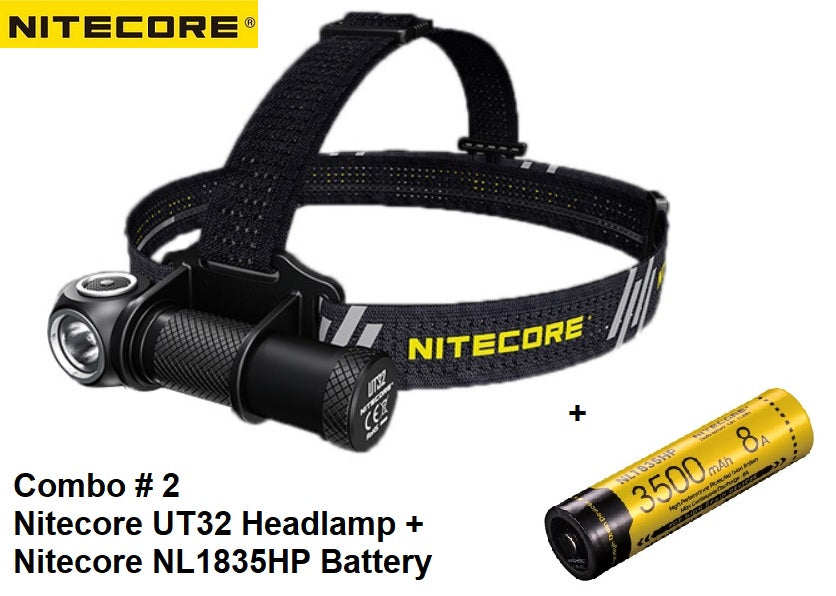

Combo #2 : with Nitecore NL1835HP 3500mAh

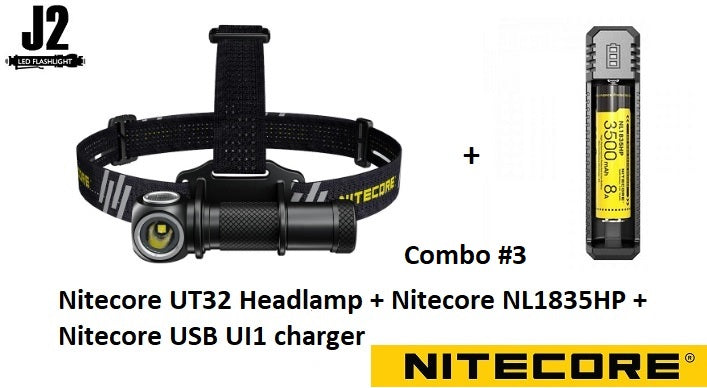

Combo #3 : with Nitecore NL1835HP 3500mAh    &    Nitecore UI1 USB charger



Better run time than the Nitecore NL1835 3500 mAh.




Please select combo #2 if you want the battery.





Please select combo # 3 if you want the battery and Nitecore USB charger.

Overview

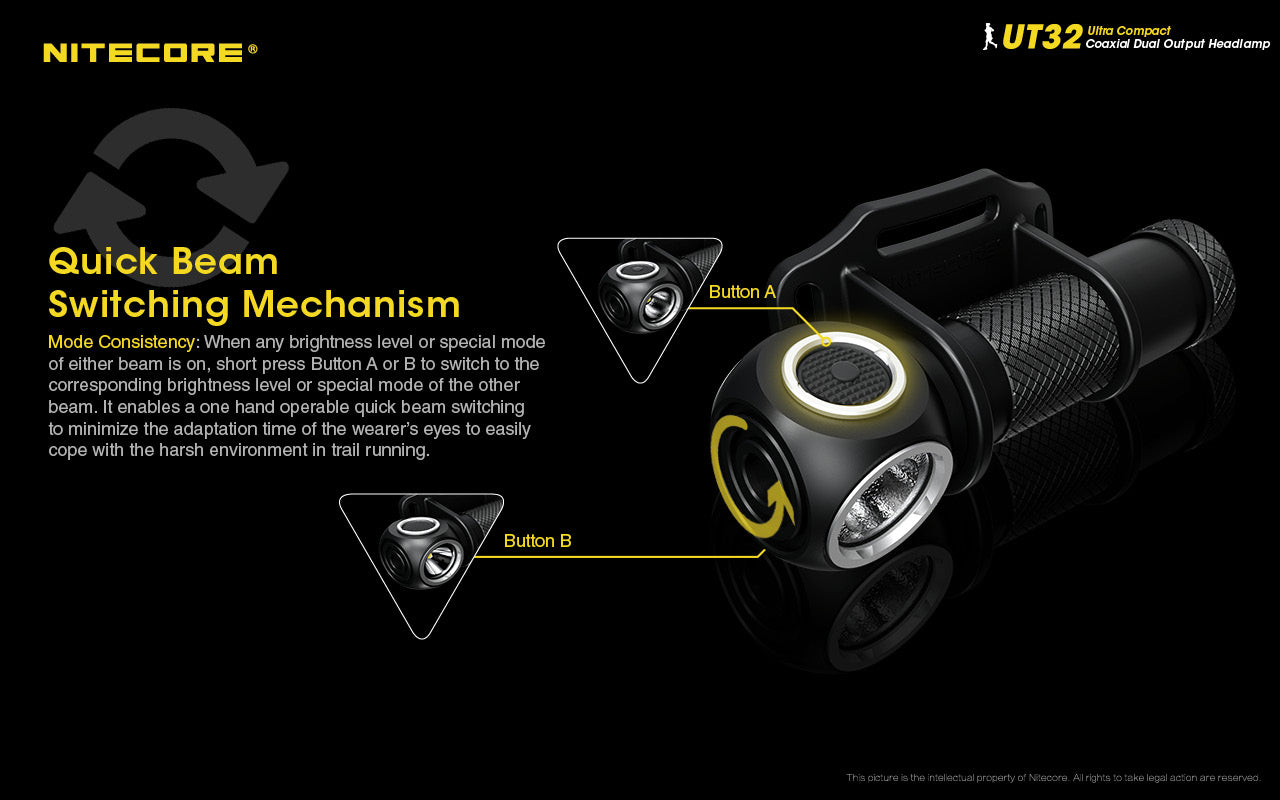

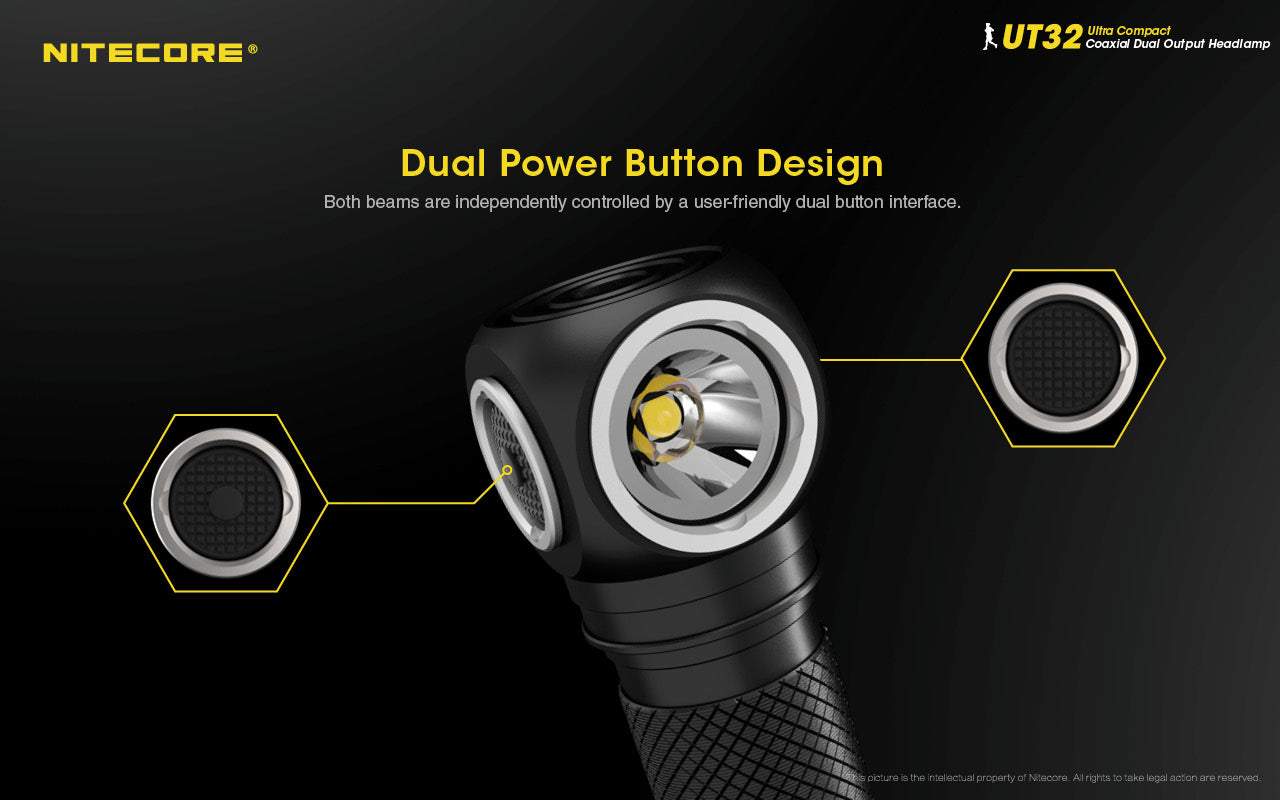

With an ultra smooth TrueVision cool white flood beam, the NITECORE UT32 is officially released specially for trail running with a coaxial dual output design. With a dual button interface, it makes the beam switching one hand operable to meet various needs in the harsh trail running environment.

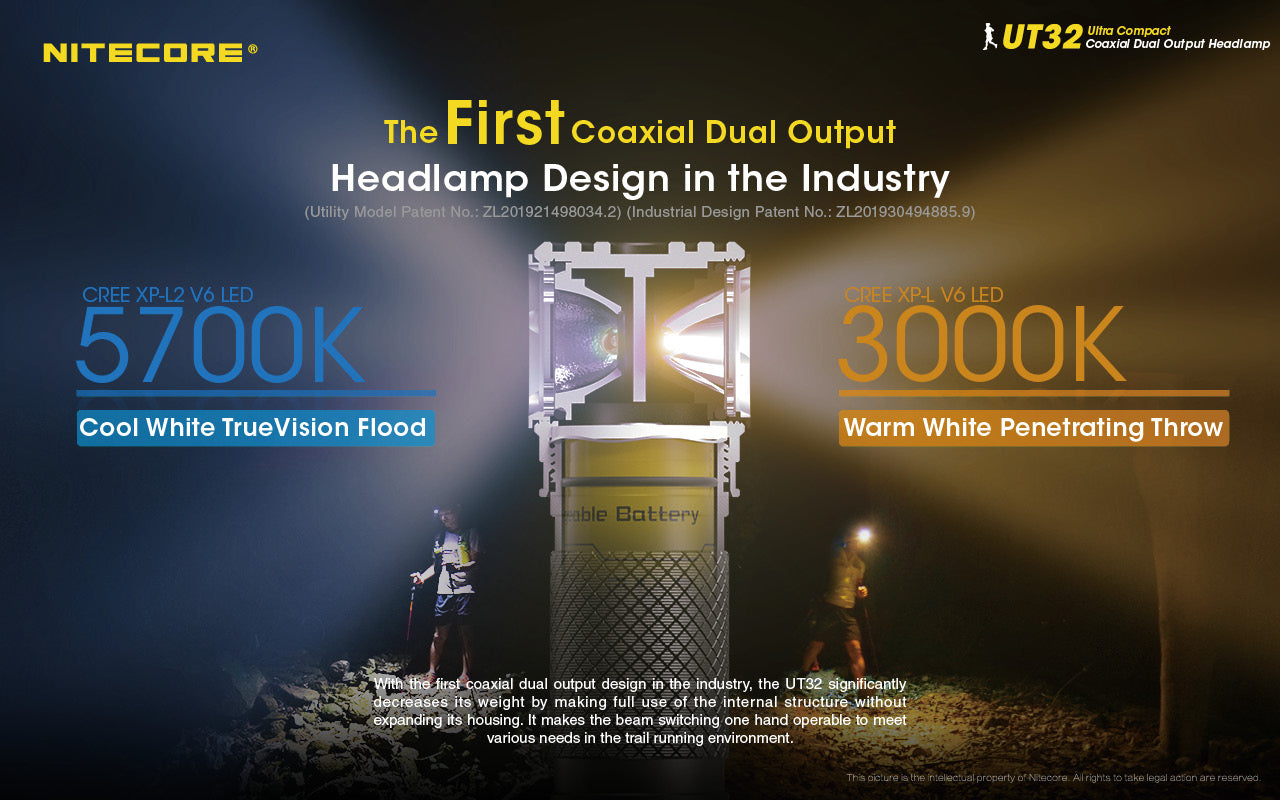

Thanks to the first coaxial dual output design in the industry, the UT32 significantly decreases its weight by making full use of the internal structure without expanding its housing. It makes the beam switching one hand operable to meet various needs in the trail running environment. As a simulation of the natural sunlight, the cool white beam of the UT32 offers an unprecedented illumination experience for trail runners. The reflector is precisely calculated to provide a consistent illuminance in order to eliminate the central hotspot and perfectly cover the human vision of 100°. It greatly eases the visual fatigue and facilitates a clear view over the road condition.

The primary Cool White Beam uses a CREE XP-L2 V6 LED (5700K) for a max output of 1,100 lumens combined with an OP reflector with TrueVision Technology, ideal for wide range illumination for trail runners. The auxiliary Warm White Beam uses a CREE XP-L V6 LED (3000K) for a max throw of 117 meters, combined with an optical system with crystal coating and “Precision Digital Optics Technology” (PDOT) for better penetrating ability in rain, snow or fog.

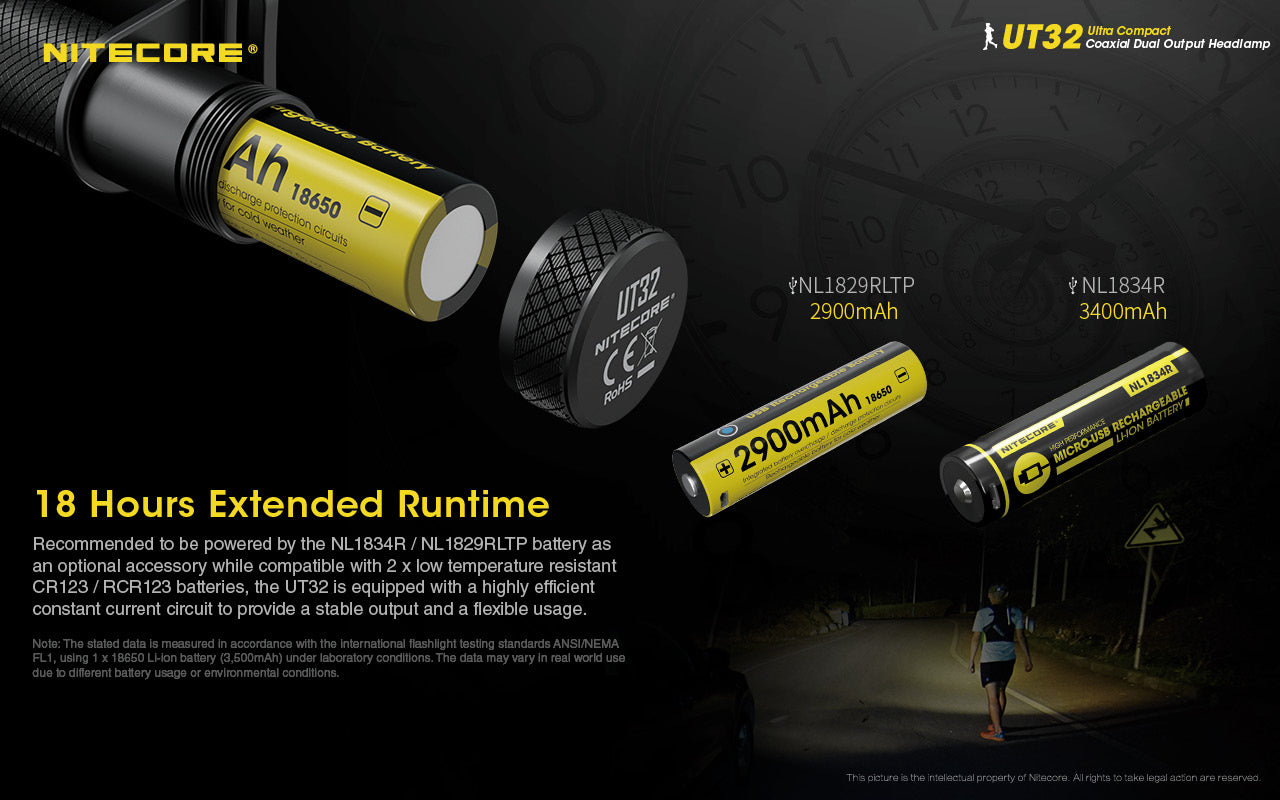

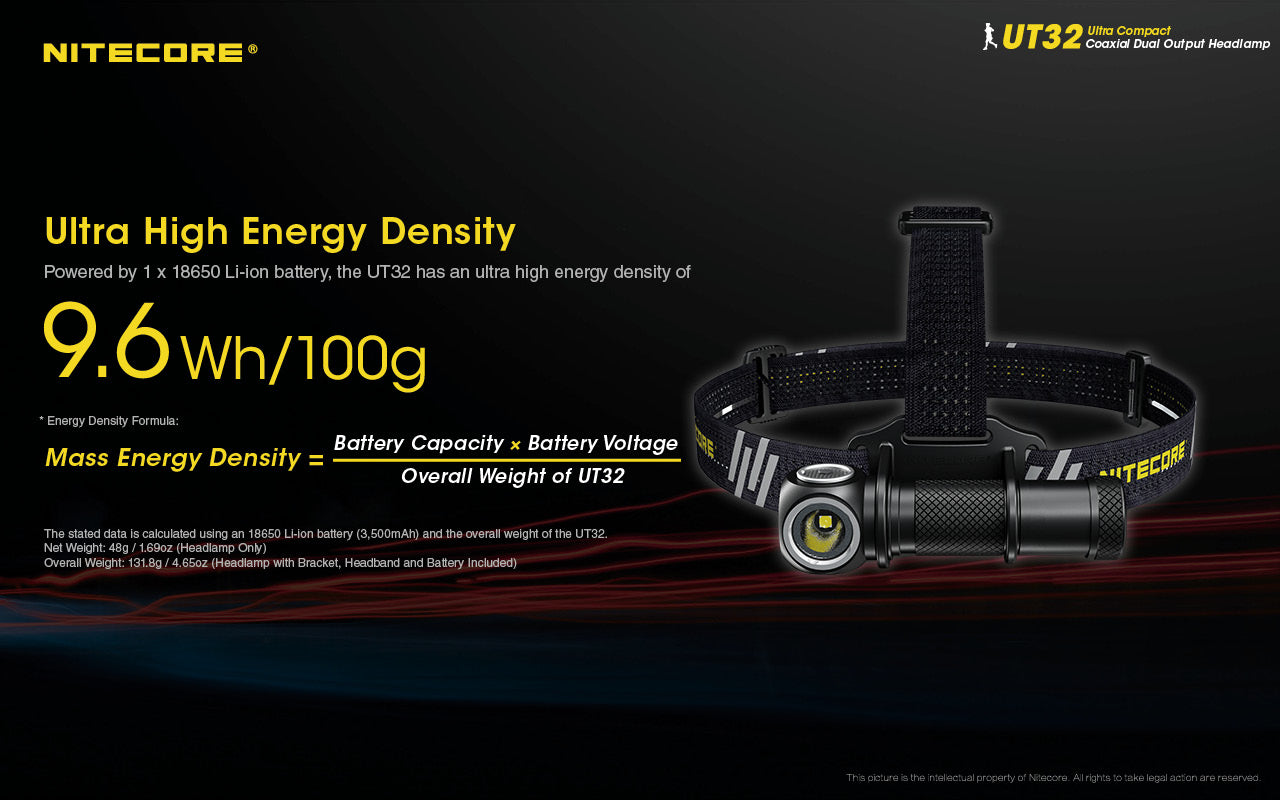

Powered by 1 x 18650 Li-ion battery, the UT32 has an ultra high energy density of 9.6Wh/100g. With a max runtime of 18 hours and recommended to be powered by the NL1834R / NL1829RLTP battery as an optional accessory while compatible with 2 x low temperature resistant CR123 / RCR123 batteries, the UT32 is equipped with a highly efficient constant current circuit to provide a stable output and a flexible usage.

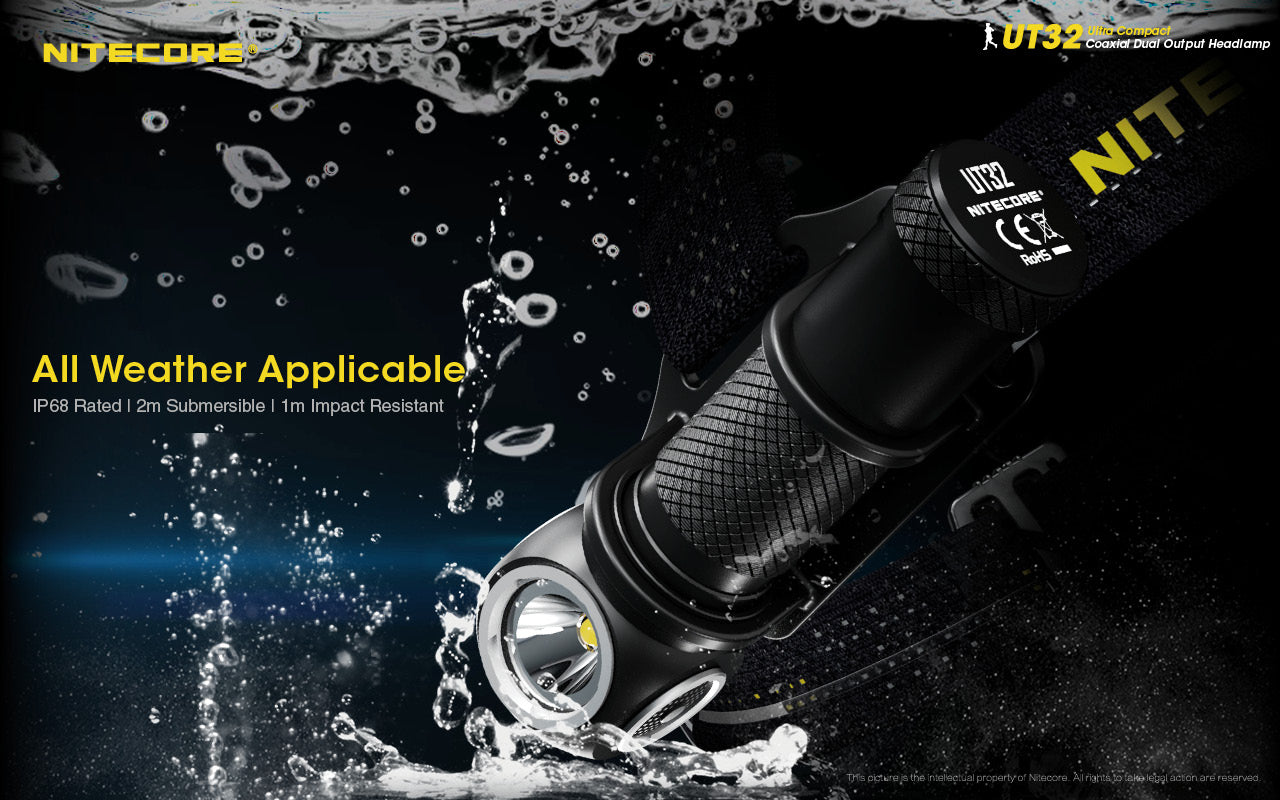

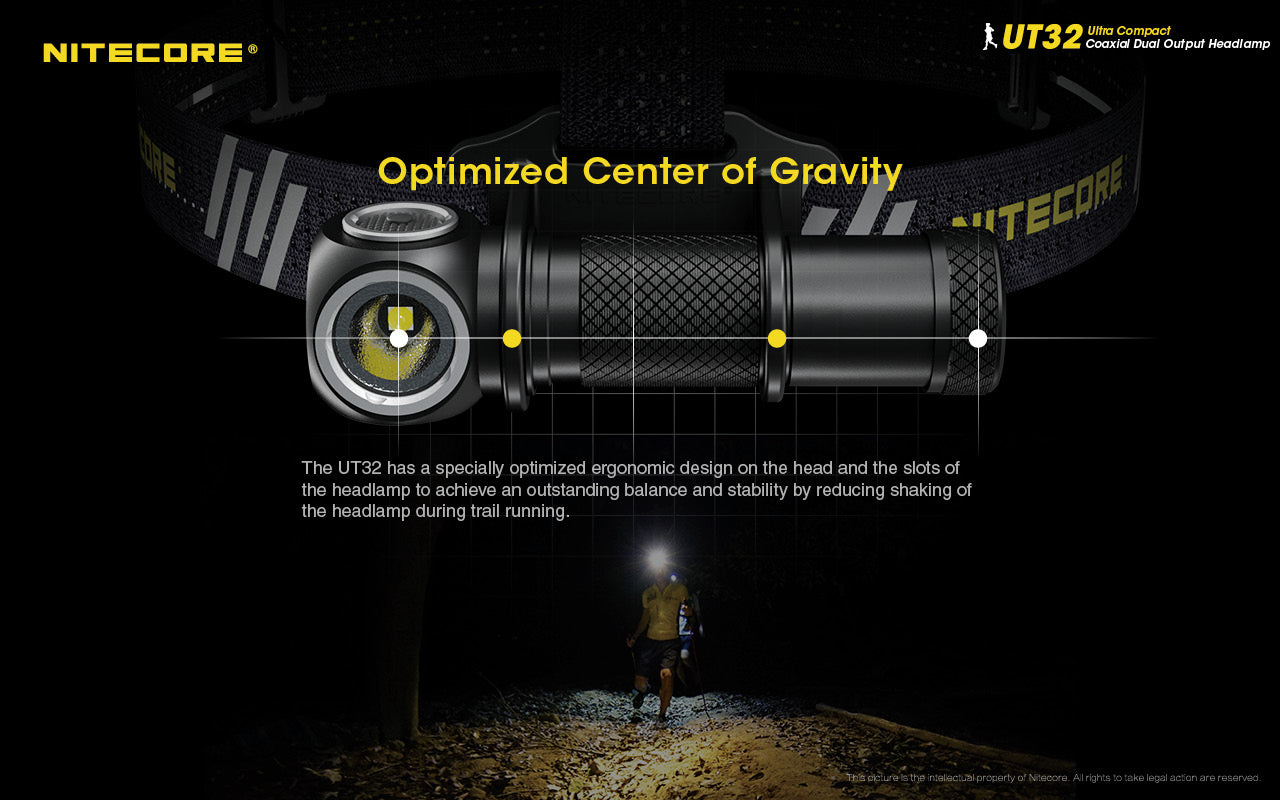

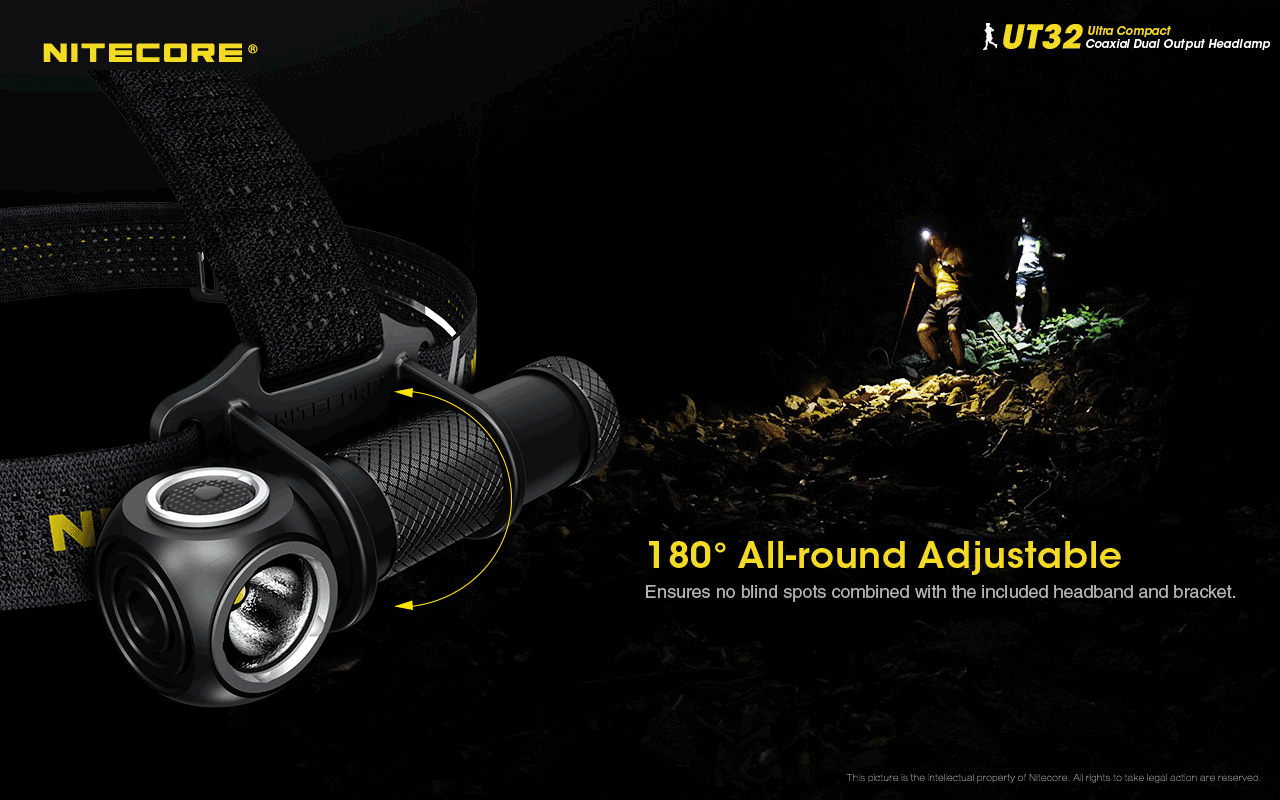

The UT32 has a specially optimized ergonomic design on the head and the slots of the headlamp to achieve an outstanding balance and stability by reducing shaking of the headlamp during trail running. It is 180° all-round adjustable and ensures no blind spots combined with the included headband and bracket. It is all weather applicable as IP68 rated, 2m submersible and 1m impact resistant.

Nitecore UT32 Specs

LED Brightness Level Waterproof Specifications (Width, Length, Diameter) Weight Battery

CREE XP-L2 V6 LED (5700K)

+

CREE XP-L V6 LED (3000K)

4 output levels +

3 special modes

IP68

Head Dimension: (27.6 mm × 26.8 mm )

Tail Diameter : (23.8 mm) (0.94")

82.5 g (2.91 oz) Bracket Headlamp included , Battery not included 18650 Rechargeable Li-ion Battery (Button Topped)



Primary Cool White Beam ( 5700K)

FLI STANDARD TURBO HIGH MID LOW BEACON SOS
1,100 Lumens 410 Lumens 200 Lumens 70 Lumens 1,100
Lumens
1,100
Lumens
*1 h 30 min 3h 45 min 8 h 18 h ----------- -----------
80 m 49 m 33 m 23 m ---------- ----------
1,600cd 600cd 270cd 130cd ----------- ----------
1 m ( Impact Resistance )
IP68, 2m ( Waterproof and Submersible )



Auxiliary Warm White Beam ( 3000K)

FLI STANDARD TURBO HIGH MID LOW BEACON SOS
920 Lumens 370 Lumens 170 Lumens 60 Lumens 920
Lumens
920
Lumens
*1 h 30 min 3h 45 min 8 h 18 h ----------- -----------
117 m 75 m 46 m 31 m ---------- ----------
3,460cd 1400cd 530cd 250cd ----------- ----------
1 m ( Impact Resistance )
IP68, 2m ( Waterproof and Submersible )

Note: The stated data Is measured In accordance with the International flashlight testing standards ANSI NEMA FL1, using 1 x 18650 Li-lon battery (3,500mAh) under laboratory conditions. The data may vary in real world use due to different battery usage or environmental conditions.

• The run time for TURBO mode Is tested with fan cooling, as a simulation of the trail running environment.



    • Dual output headlamp specially designed for the unpredictable weather and harsh outdoor environment in trail running.
    • Primary Cool White Beam uses a Cree XP-L2 V6 LED (5700K) for a maximum output of 1,100 lumens and a throw of 80 meters, combined with an OP reflector with TrueVision Technology for 100° wide range flood illumination with uniform and soft light.
    • Auxiliary Warm White Beam uses a Cree XP-L V6 LED (3000K) for a maximum output of 920 lumens and a throw of 117 meters, combined with an optical system with crystal  coating and "Precision Digital Optics Technology" (PDOT) for better penetrating ability in rain, snow or fog .
    • High efficiency constant circuit provides a stable output of 18 hours.
    • 4 brightness levels and 2 special modes available for both beams.

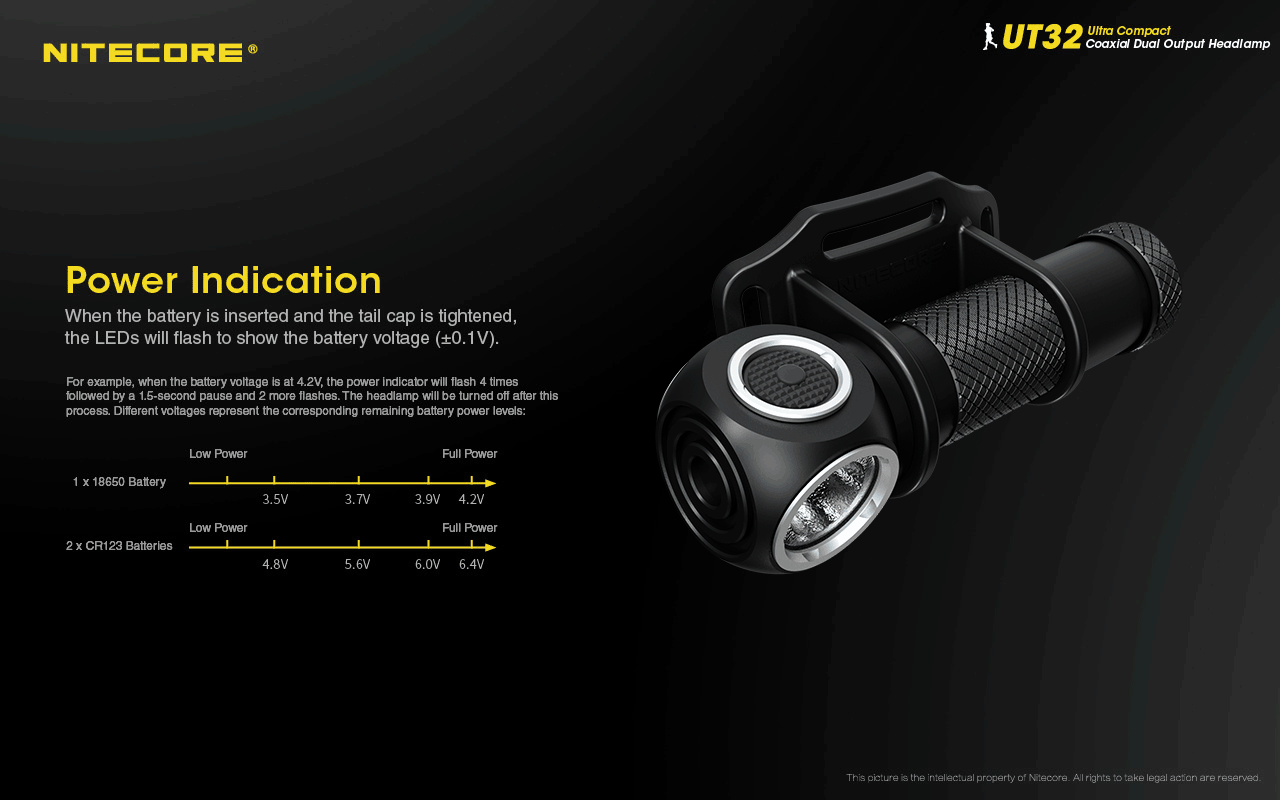

    • Both LEDS can indicate the battery power by displaying the battery voltage (± 0.1 V)

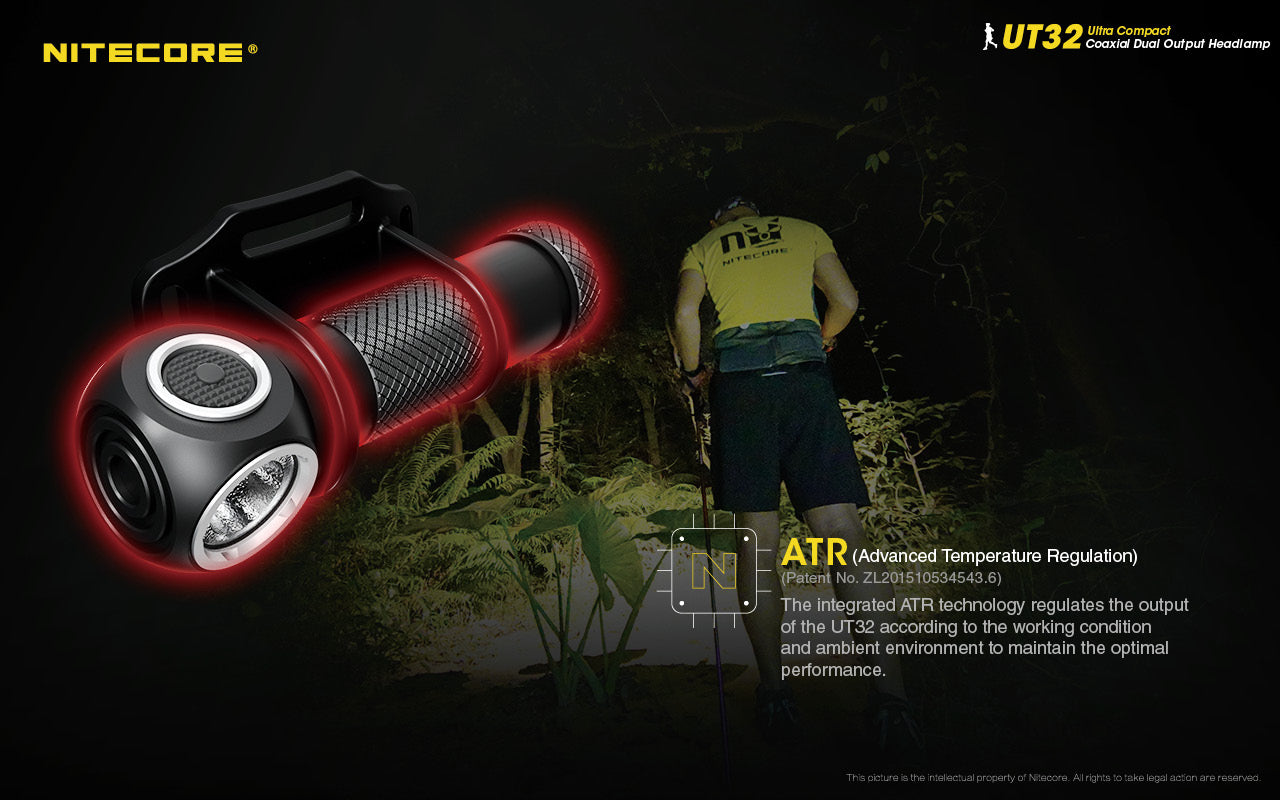

    • Incorporated Advanced Temperature Regulation (ATR) module. ( Patent No. ZL20151053453.6)
    • Specially designed lightweight and breathable headband included.
    • Optical lenses with double sided scratch resistant coating.

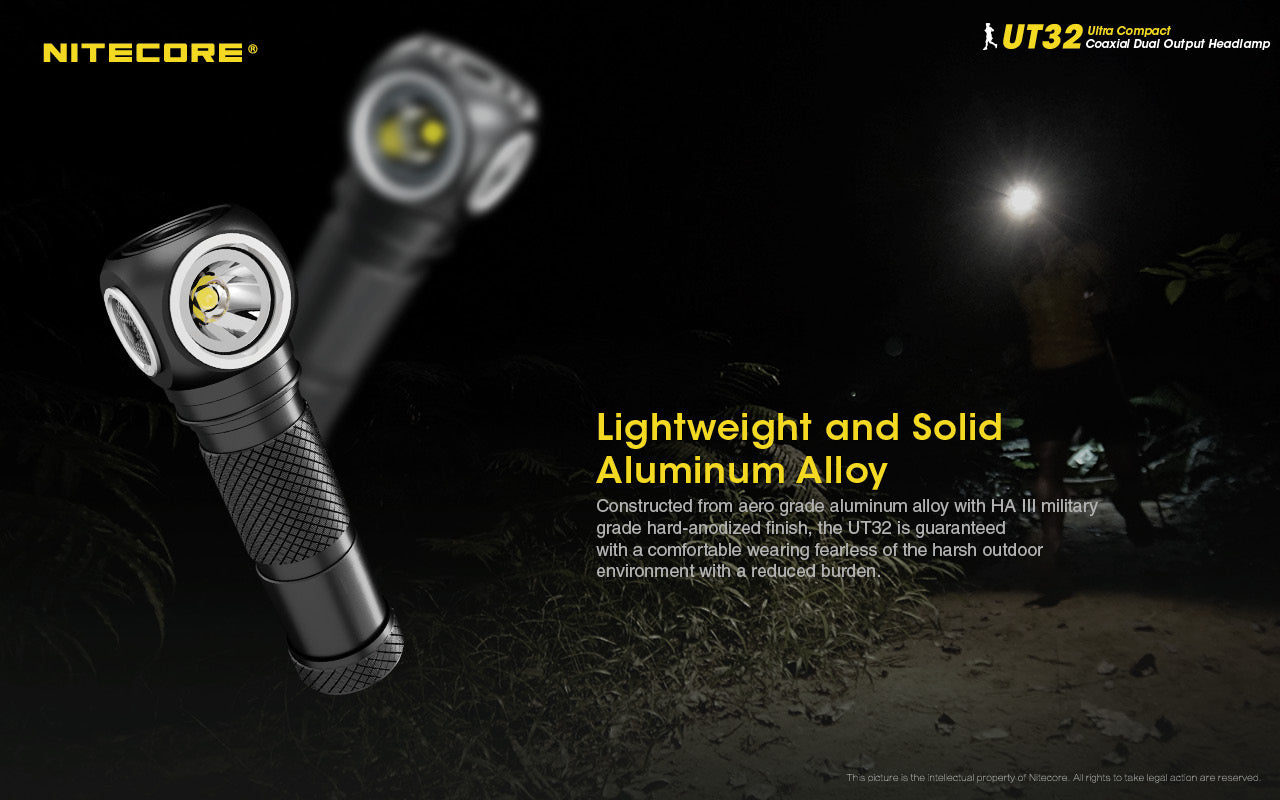

    • Constructed from aero grade aluminum alloy.
    • HA III military grade hard anodized finish
    • Rating in accordance with IP68 ( 2 meters submersible )
    • Impact resistant to 1 meters.

    • Tail Diameter : 23.8 mm ( 0.94 ″)
    • Head Dimensions :  27.6 mm × 26.8 mm (1.09″ x 1.06 ″)
    • Length :  95.9 mm (3.78″)
    • Weight : 82.5 g (2.91 oz) (Bracket ,Headband and Battery not Included)
    • 48 g (1.69 oz) (Bracket, headband and Battery not included)

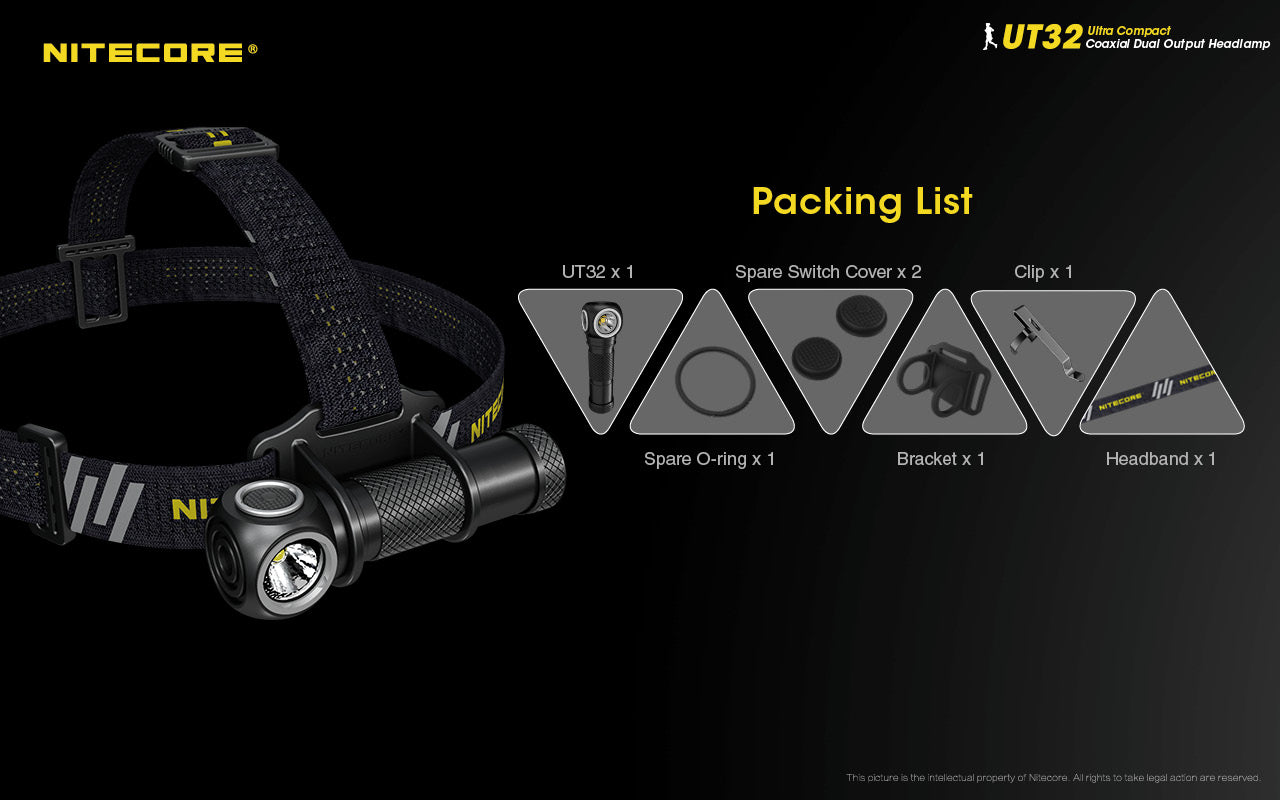

    • Spare Switch Covers
    • Clip
    • Headband
    • Spare O rings
    • Bracket
