NITECORE P20iX i-Generation Flashlight



Overview:

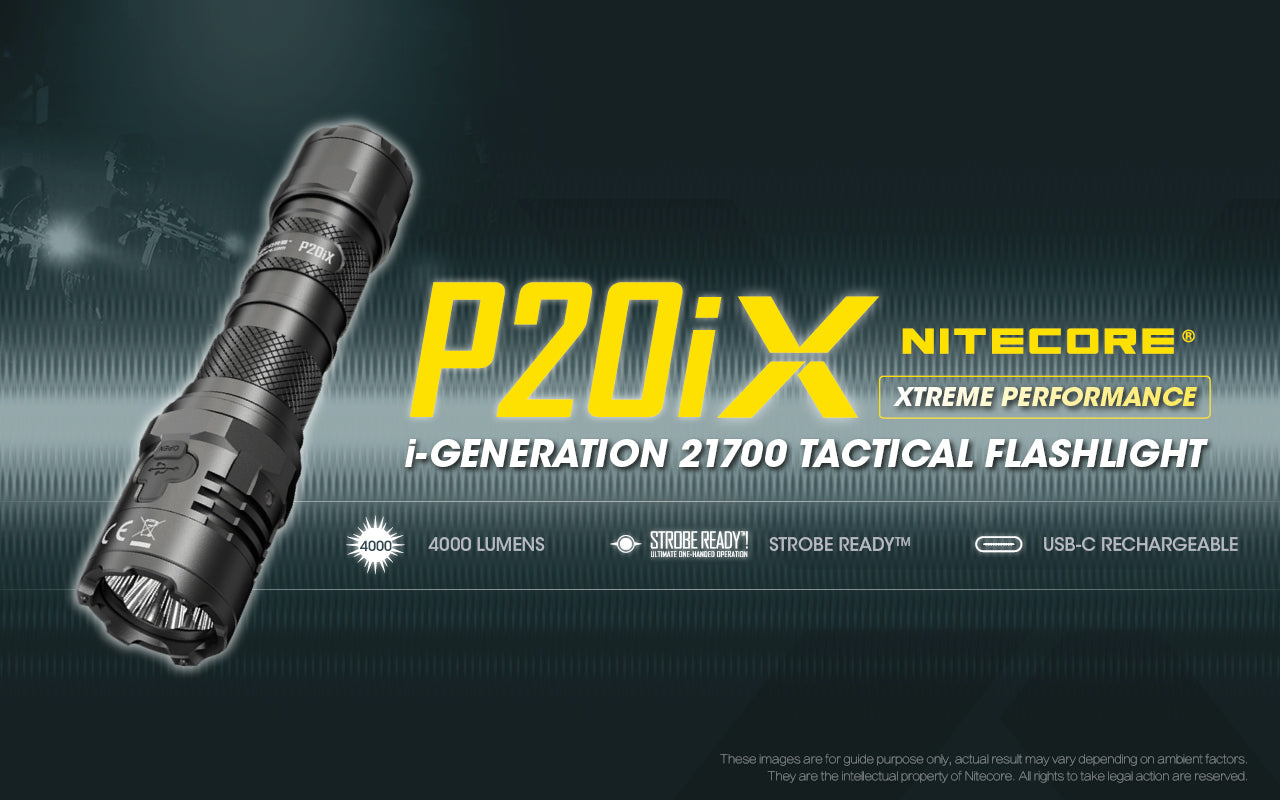

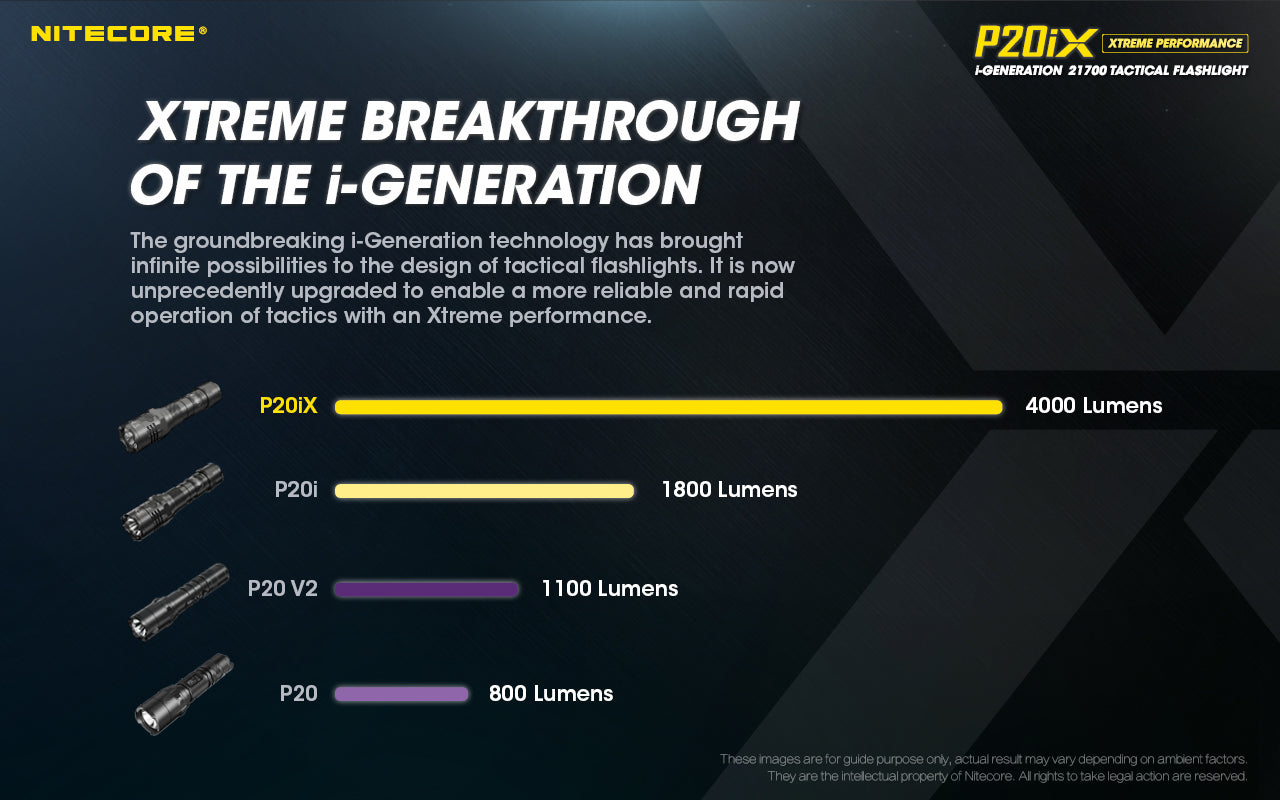

The P20iX is the Xtreme Performance i-Generation 21700 Tactical Flashlight designed with the i-generation ultimate revolution. The groundbreaking i-Generation technology has brought infinite possibilities to the design of tactical flashlights. It is now unprecedently upgraded to enable a more reliable and rapid operation of tactics with an Xtreme performance.

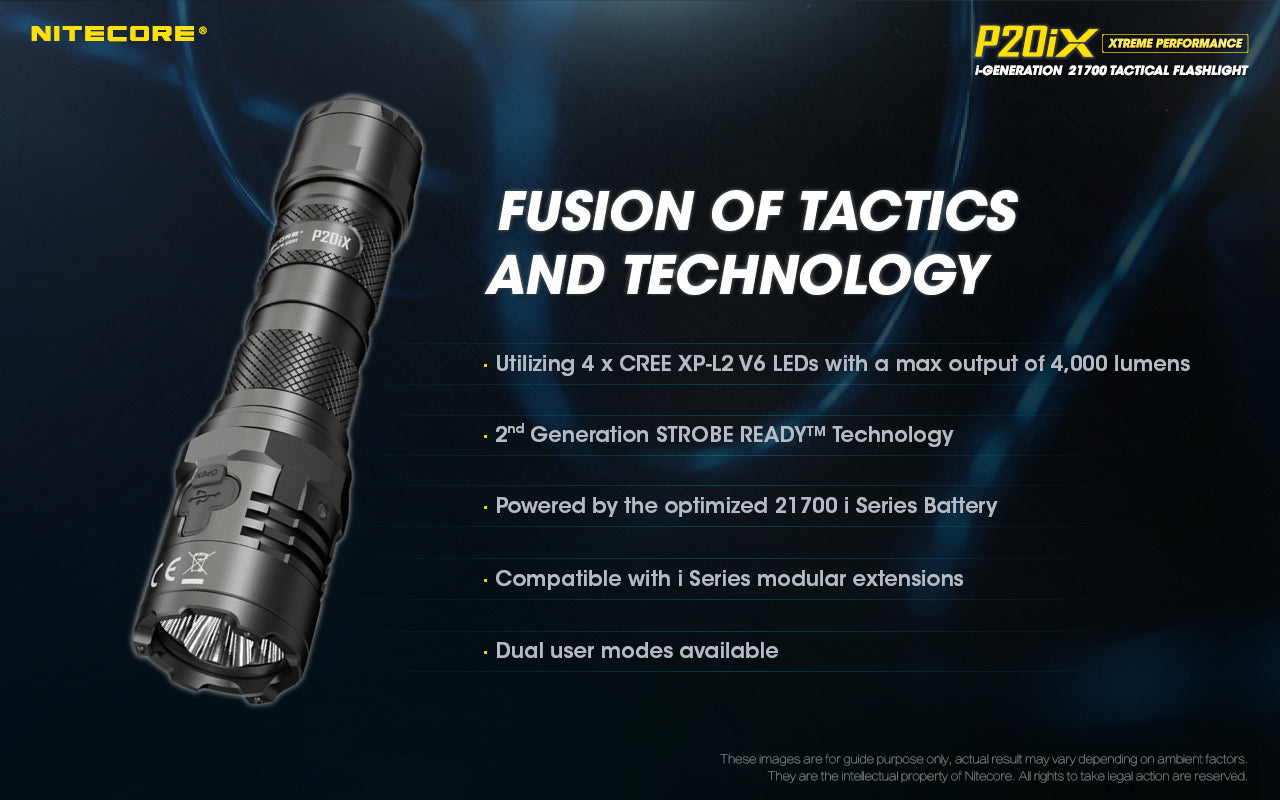

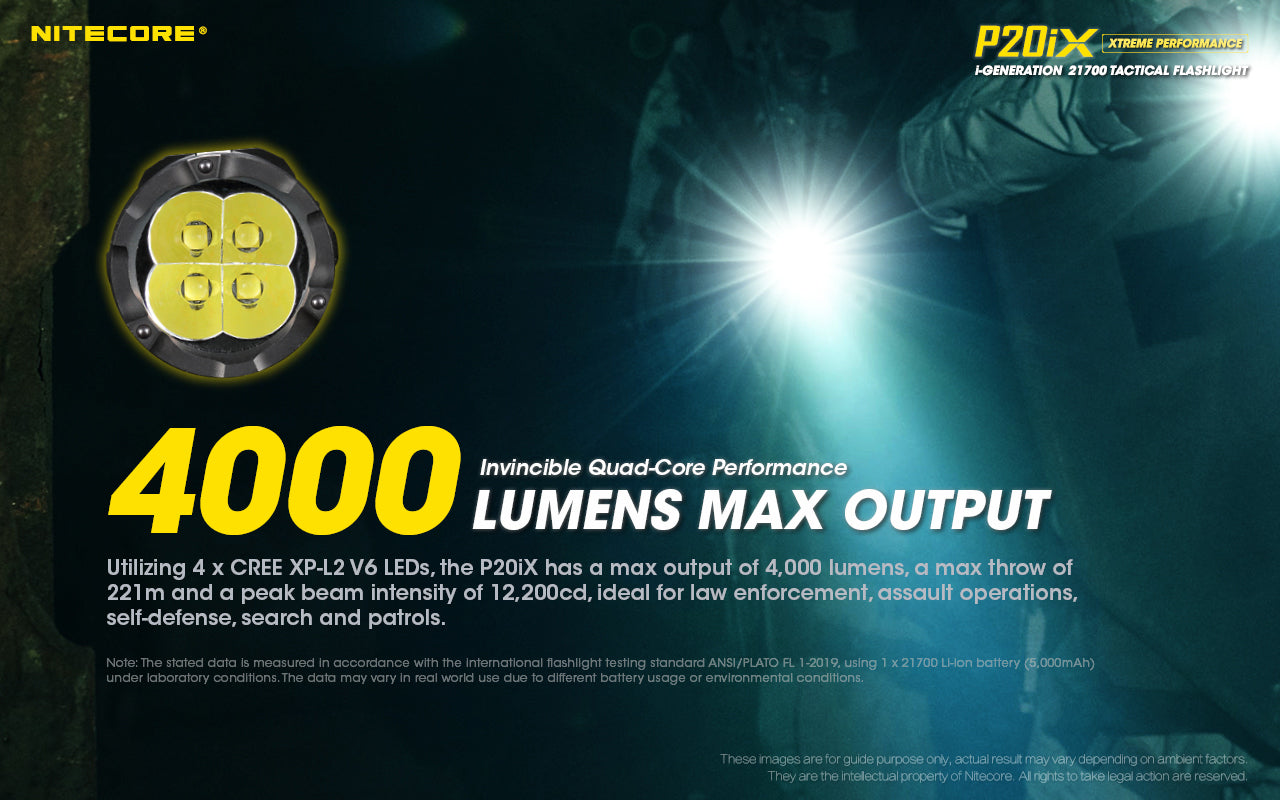

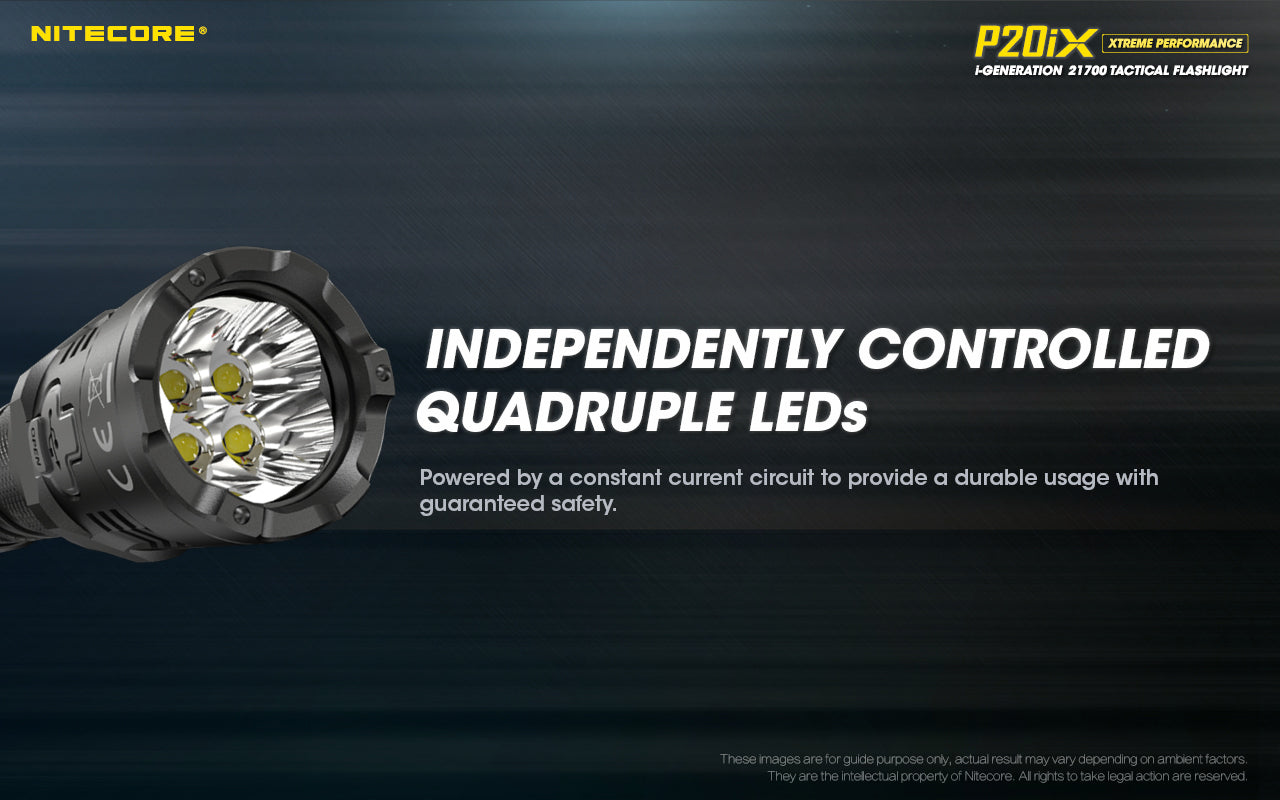

Utilizing 4 x CREE XP-L2 V6 LEDs, the P20iX has a max output of 4,000 lumens, a max throw of 221m and a peak beam intensity of 12,200cd, ideal for law enforcement, assault operations, self-defense, search and patrols. The independently controlled quadruple LEDs are powered by a constant current circuit to provide a durable usage with guaranteed safety.

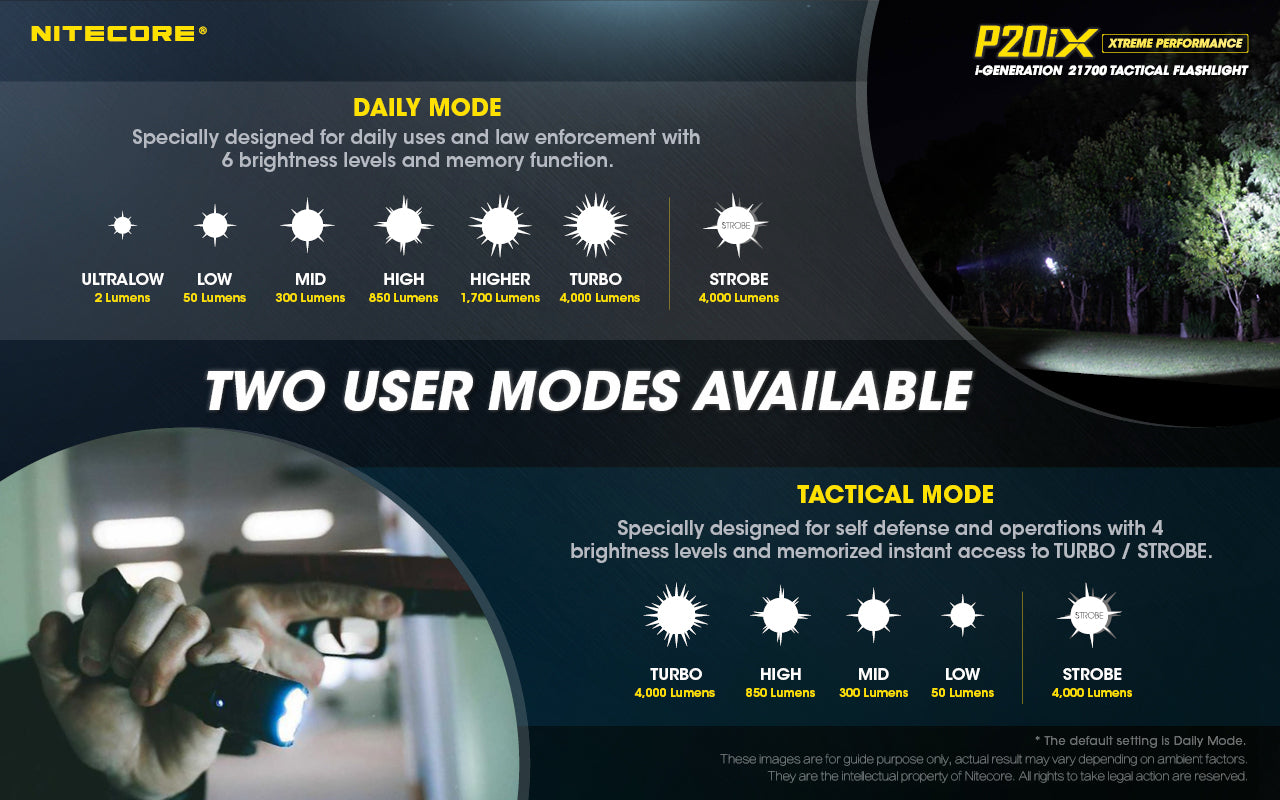

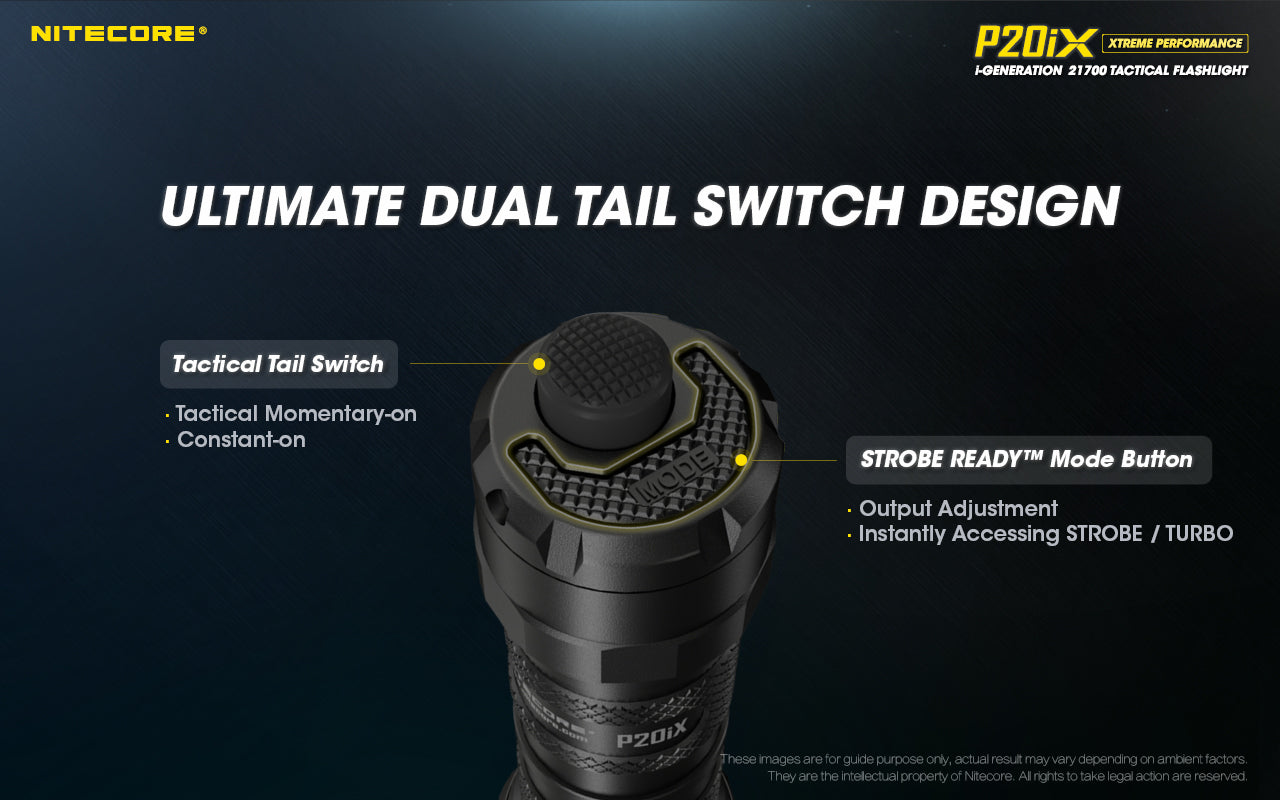

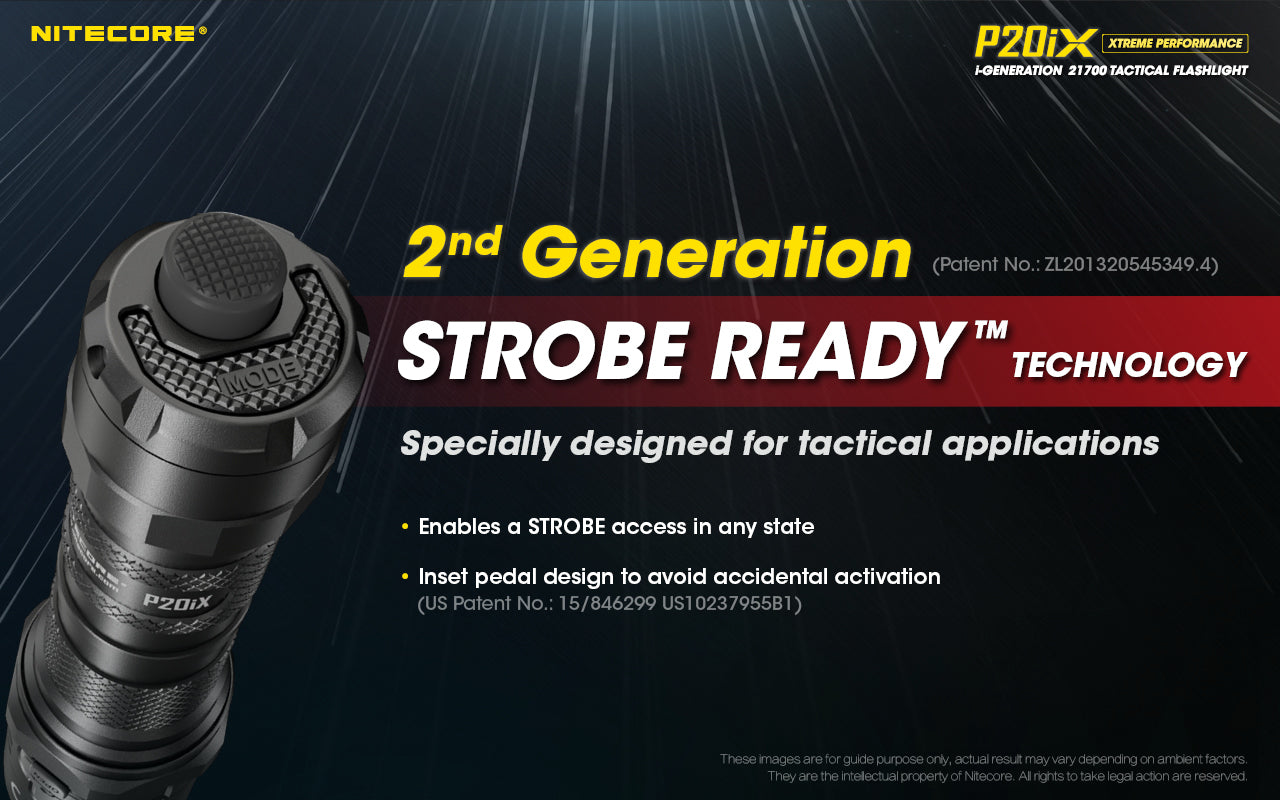

The ultimate dual tail switch design includes the Tactical Tail Switch for momentary-on and constant-on illumination and the STROBE READY™ Mode Button for output adjustment and instantly accessing STROBE / TURBO. The randomly changing STROBE Mode with randomly changing frequencies can cause stronger dizzying effects due to the inadaptability of the naked eyes. With two user modes available, it has the Daily Mode specially designed for daily uses and the Tactical Mode for self-defense and operations. When the light is off in Tactical Mode, half press or full press the Power Button to directly access TURBO when STROBE is not memorized. The instant dazzle strike of 4,000 lumens enables an abrupt disturbance to your adversary, ideal for self-defense and law enforcement.

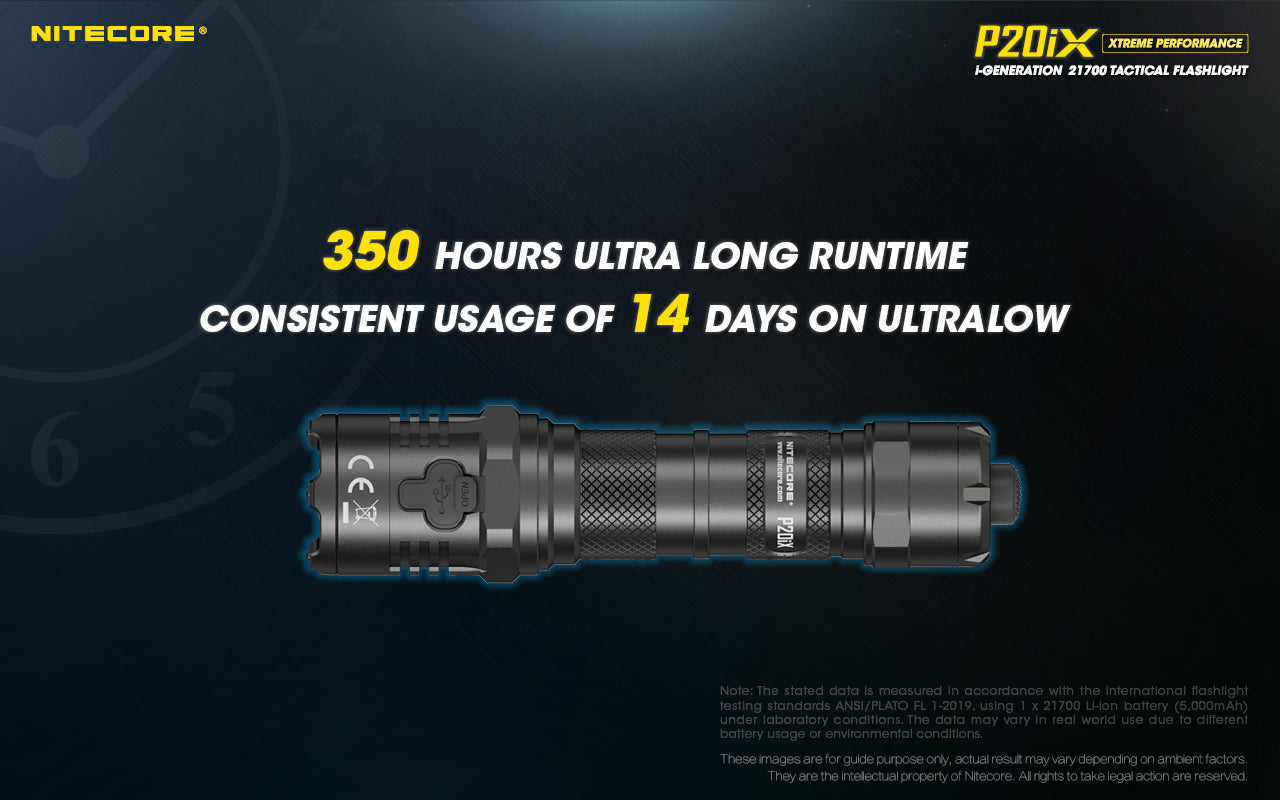

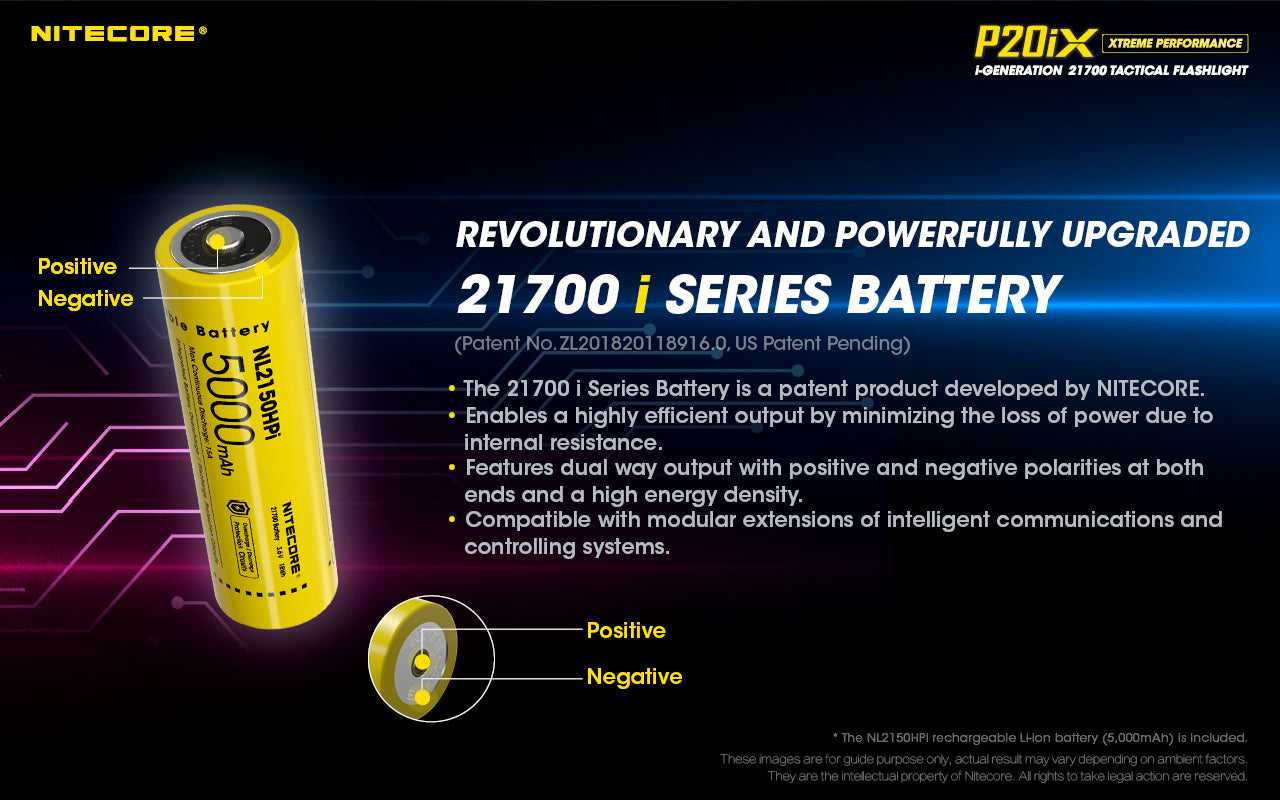

The P20iX is powered by a 21700 i Series Battery and compatible with 2 x CR123/RCR123 batteries. As a patent product developed by NITECORE, the 21700 i Series Battery is a proprietary 21700 rechargeable Li-ion battery featuring dual way output with positive and negative polarities at both ends and a high energy density. Thanks to the groundbreaking technology and techniques, it enables a highly efficient output by minimizing the loss of power due to internal resistance and is compatible with modular extensions of intelligent communications and controlling systems. It offers 350 hours ultra long runtime which enables a consistent usage of 14 days on ULTRALOW.

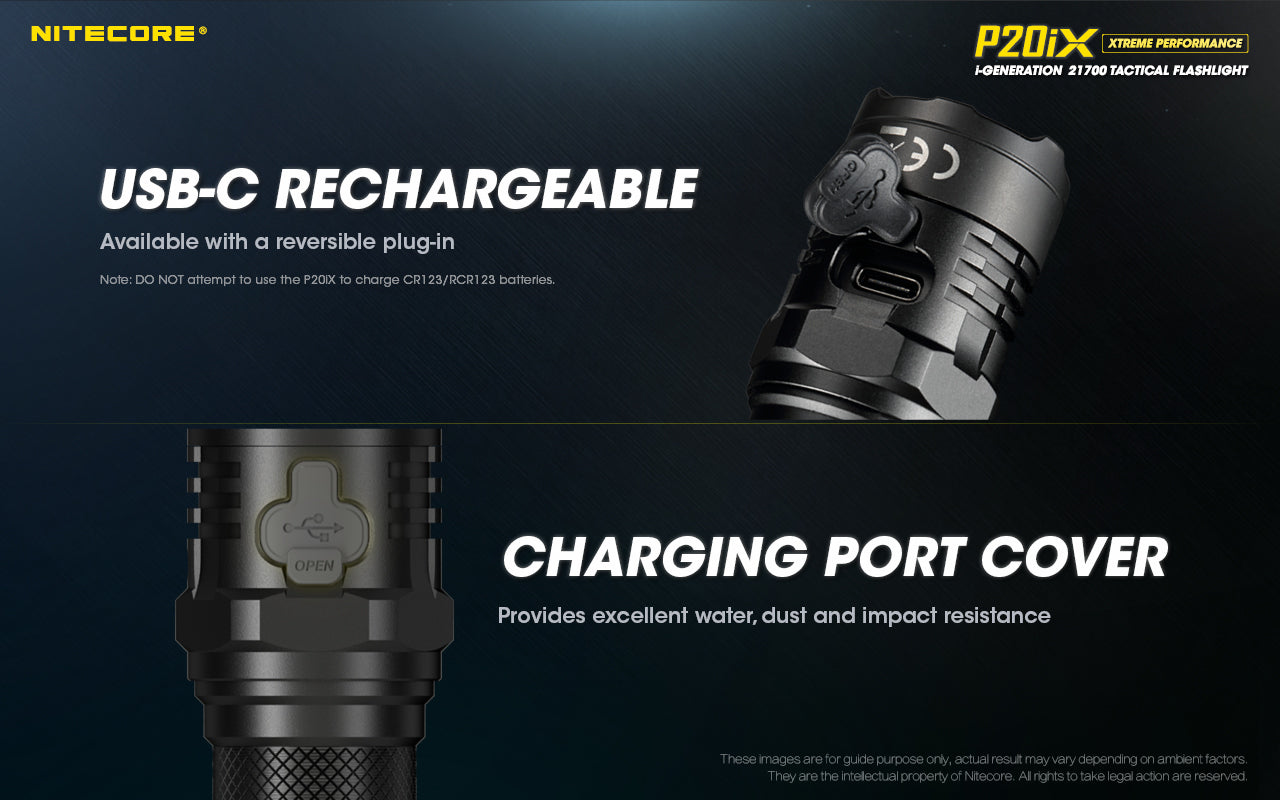

The USB-C charging port is available with a reversible plug-in. The charging port cover provides excellent water, dust and impact resistance. The integrated ATR technology regulates the output of the P20iX according to the working condition and ambient environment to maintain the optimal performance. The strike bezel is upgraded with high hardness silicon nitride ceramics, which enable a quick and easy operation for self-defense and glass breaking with a smooth surface to prevent accidental scratches on the clothes or the backpack.

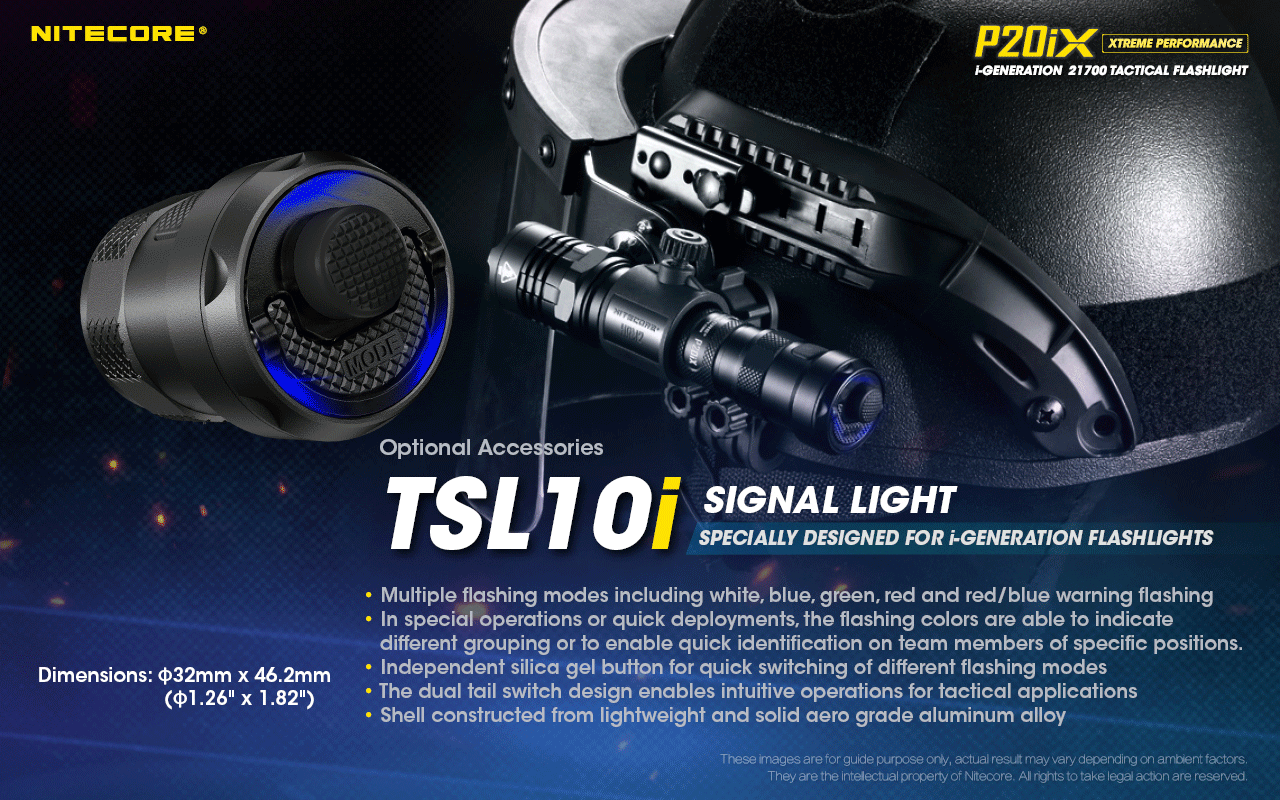

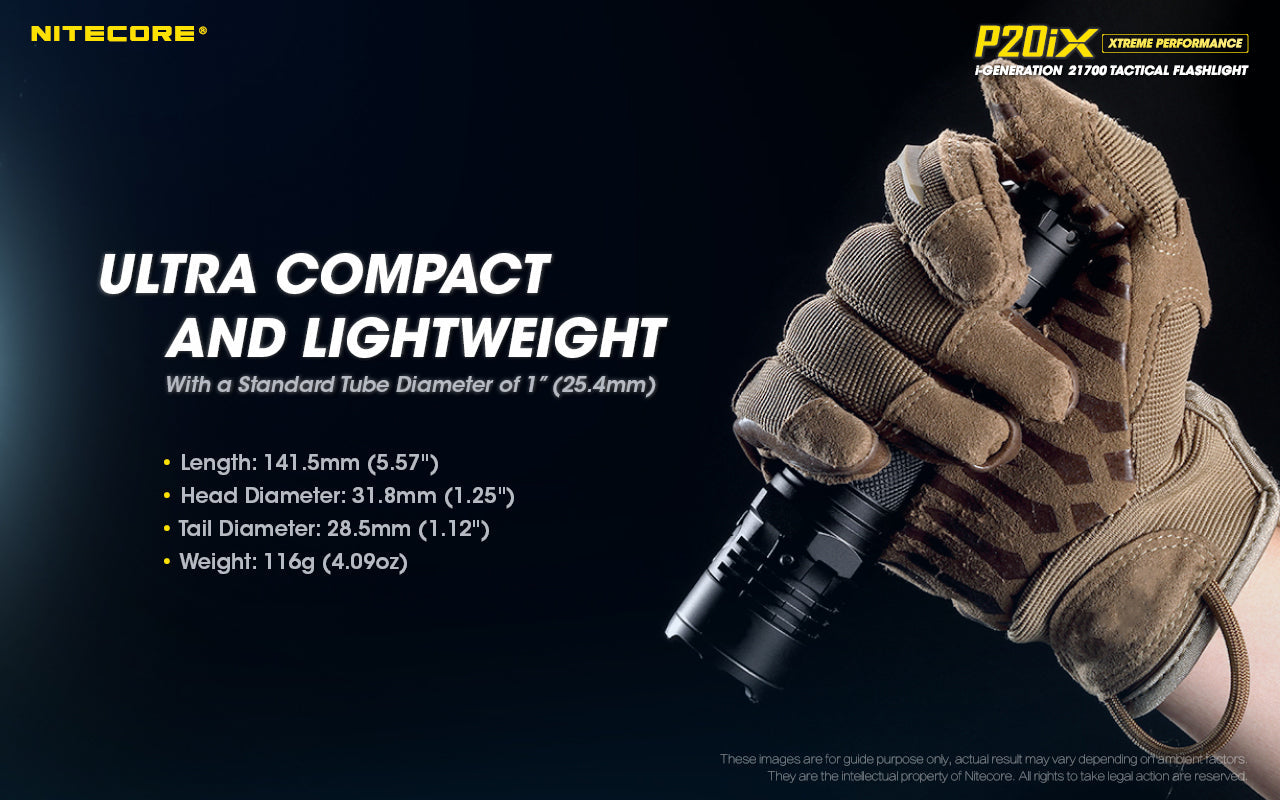

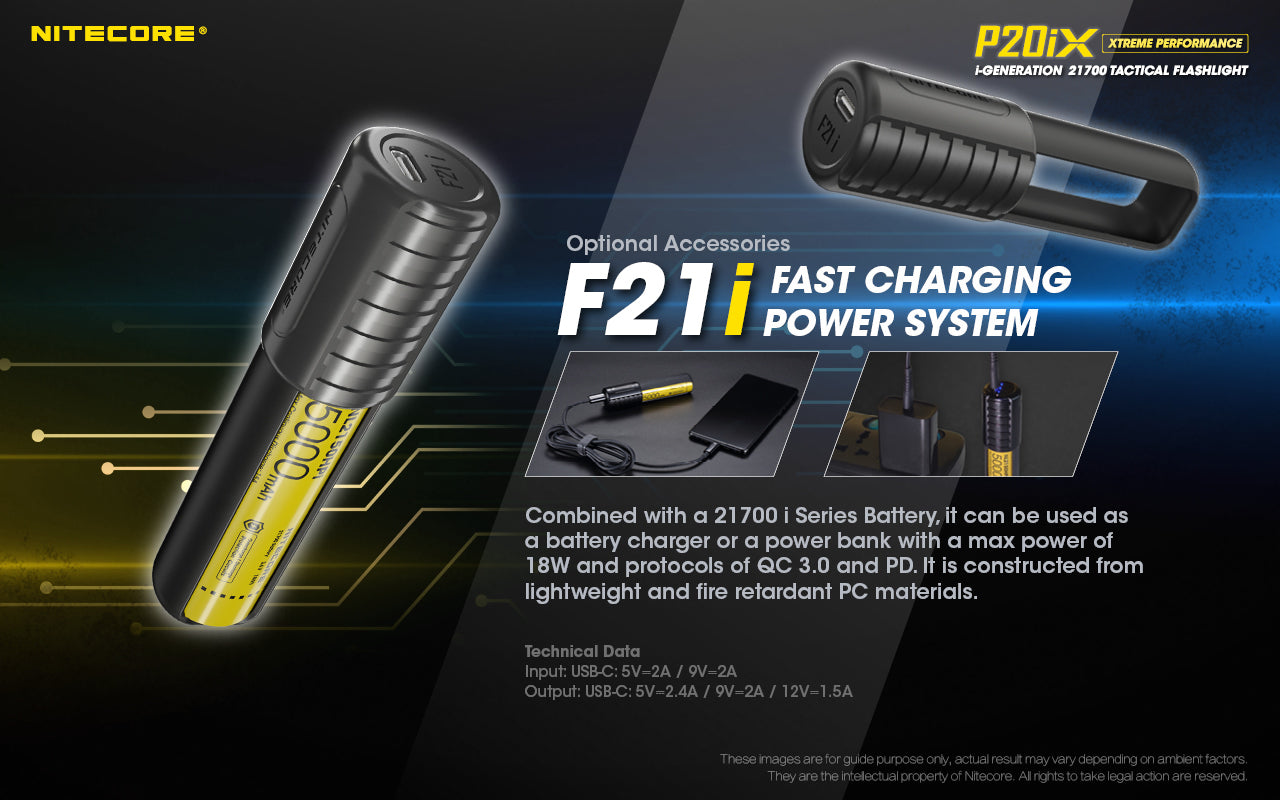

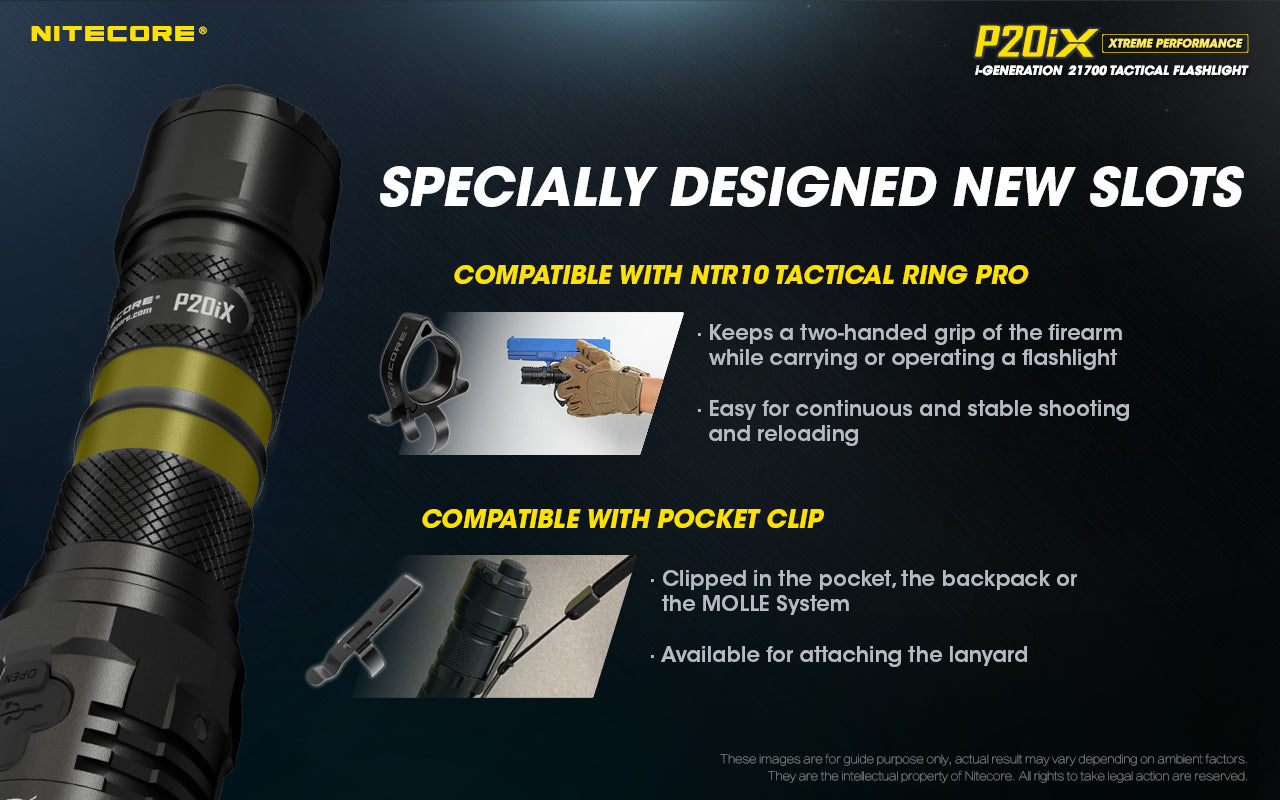

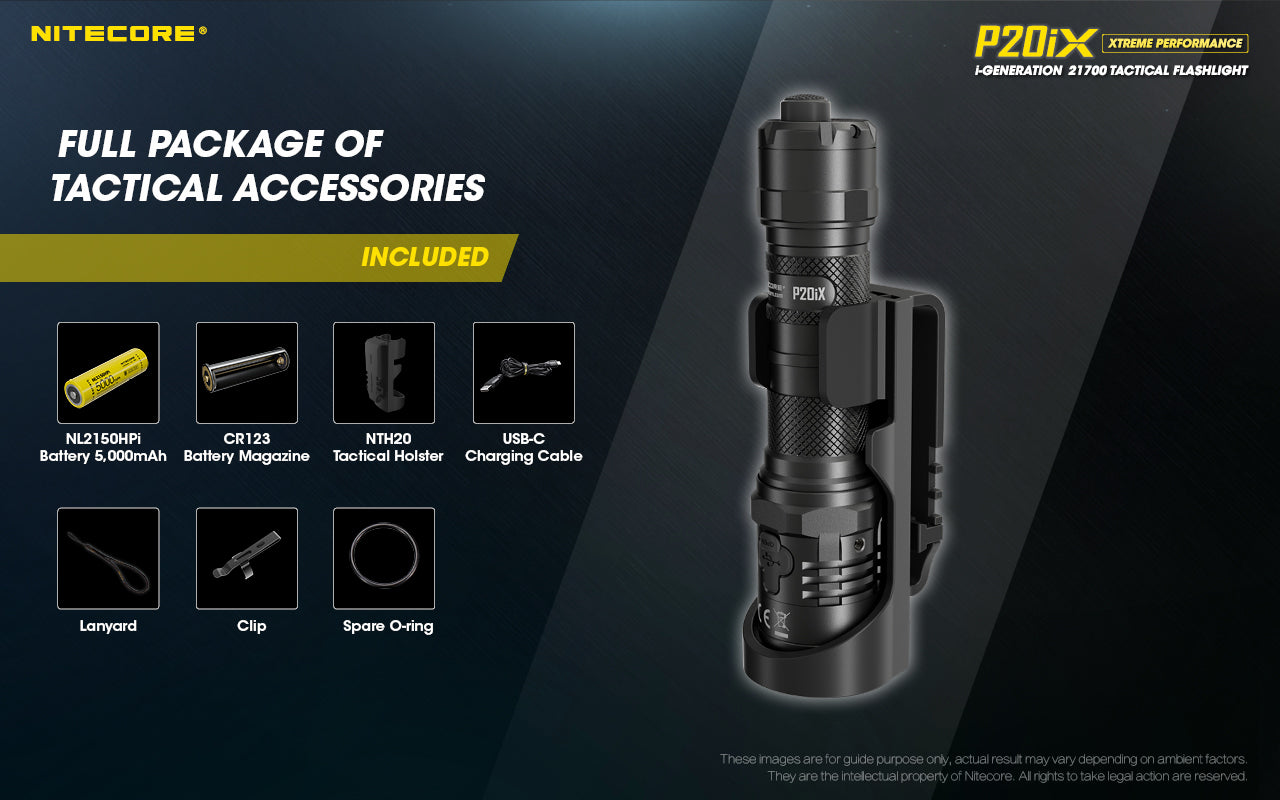

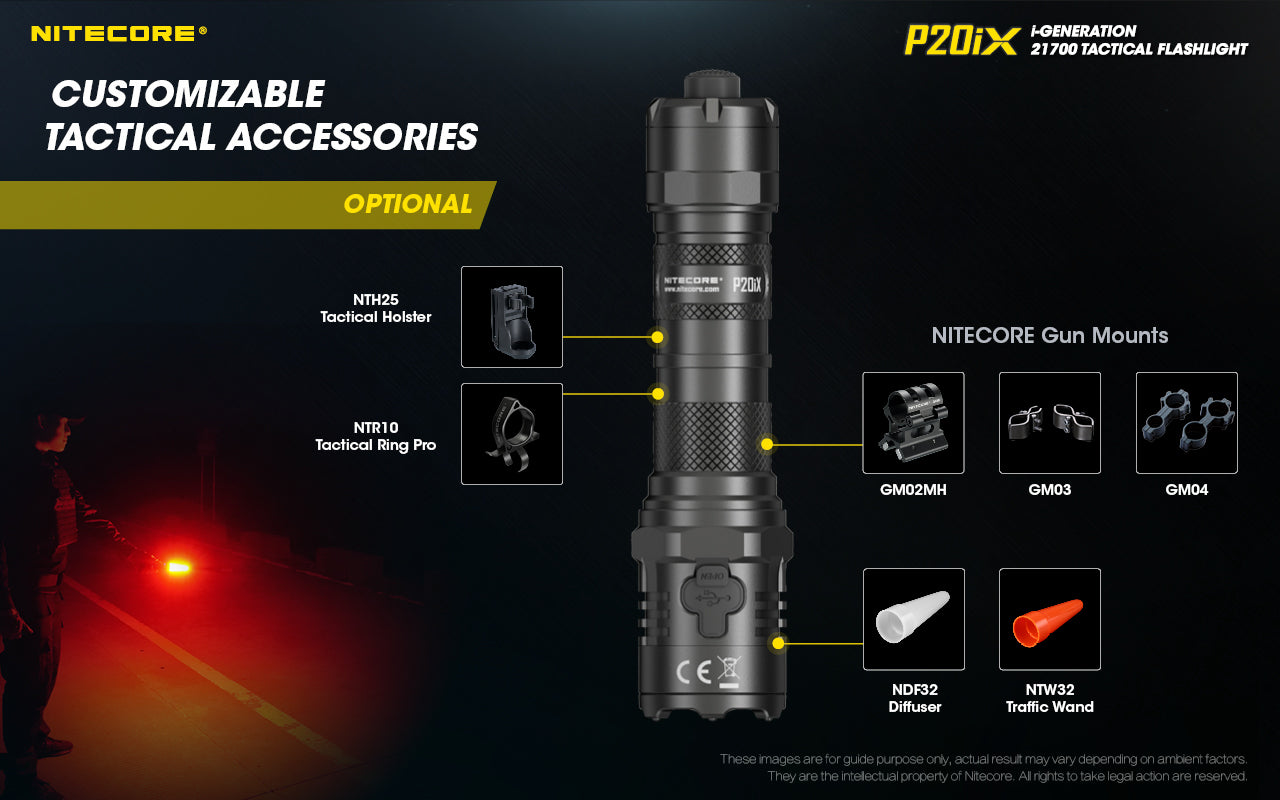

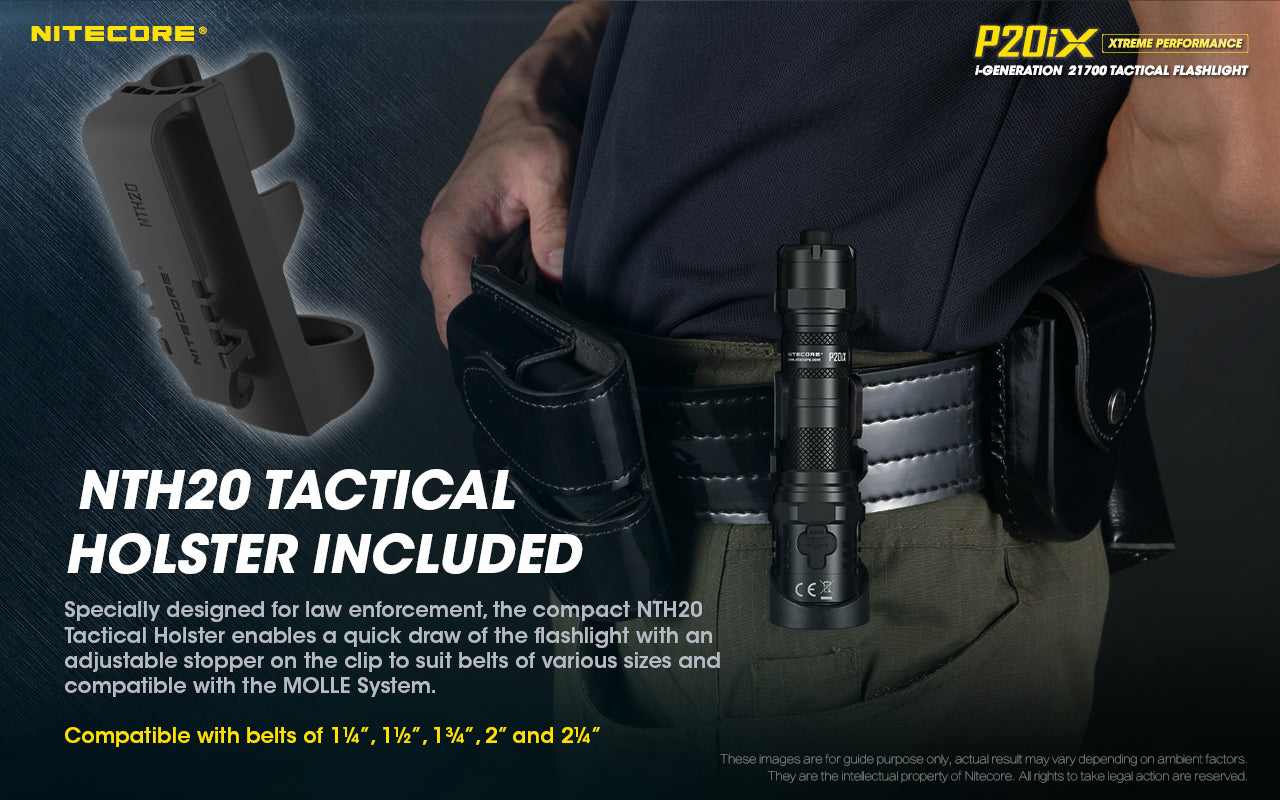

The P20iX is ultra compact and lightweight with a standard tube diameter of 1” (25.4mm) and compatible with NITECORE gun mounts including GM02MH, GM03, GM04 and more. Specially designed for law enforcement, the included compact NTH20 Tactical Holster enables a quick draw of the flashlight with an adjustable stopper on the clip to suit belts of various sizes and compatible with the MOLLE System. It can be used combined with NTR10 Tactical Ring Pro, which can keep a two-handed grip of the firearm while carrying or operating a flashlight, easy for continuous and stable shooting and reloading. Other optional accessories include the TSL10i signal light and F21i fast charging power system. It is all-weather applicable, IP68 rated, 2m submersible and waterproof, and 2m impact resistant.

Nitecore P20iX Specs

Tactical Flashlight	YES

LED	Brightness Level	Waterproof	Specifications (Width, Length, Diameter)	Weight	Battery
Cree XP-L2 V6 LED	5 output level	IP68	141.5 mm (Length) x 31.8mm (Head Diameter) x 28.5mm (Tail Diameter)	113.5 g	1x 21700 / 2x CR123

Using a 5,000mAh 21700  Li-ion Battery:

FLS1 Standard	Turbo	Higher	High	Mid	Low	Ultralow	Strobe
	4000 Lumens	1,700 Lumens	850 Lumens	300 Lumens	50 Lumens	2 Lumens	4000 Lumens
	*30 min	2 h	2 h 30 m	7 h 15 min	38 h	350 h	-------
	221 m	145 m	103 m	60 m	25 m	5 m	-------
	12,200 cd	5,250 cd	2,670cd	920 cd	150 cd	5 cd
	2 m (Impact Resistance)
	IP68, 2m (Waterproof and Submersible)

Note: The stated data is measured in accordance with the international flashlight testing standard ANSI/PLATO FL 1-2019, using 1 x 21700 Li-ion battery (5,000mAh) under laboratory conditions. The data may vary in real world use due to different battery usage or environmental conditions.



Using 2 x CR123 Batteries:

FLS1 Standard	High	Mid	Low	Ultralow	Strobe
	1,060 Lumens	300 Lumens	50 Lumens	2 Lumens	1,060 Lumens
	1 h	3 h 30 min	14 h	120 h	---------
	116 m	60 m	25 m	5 m	----------
	3,360cd	920 cd	150 cd	5cd	----------
	2 m (Impact Resistance)
	IP68, 2m (Waterproof and Submersible)

Note: The stated data is measured in accordance with the international flashlight testing standard ANSI/PLATO FL 1-2019, using 2 x CR123 lithium batteries (1,700mAh) under laboratory conditions. The data may vary in real world use due to different battery usage or environmental conditions.
