Description

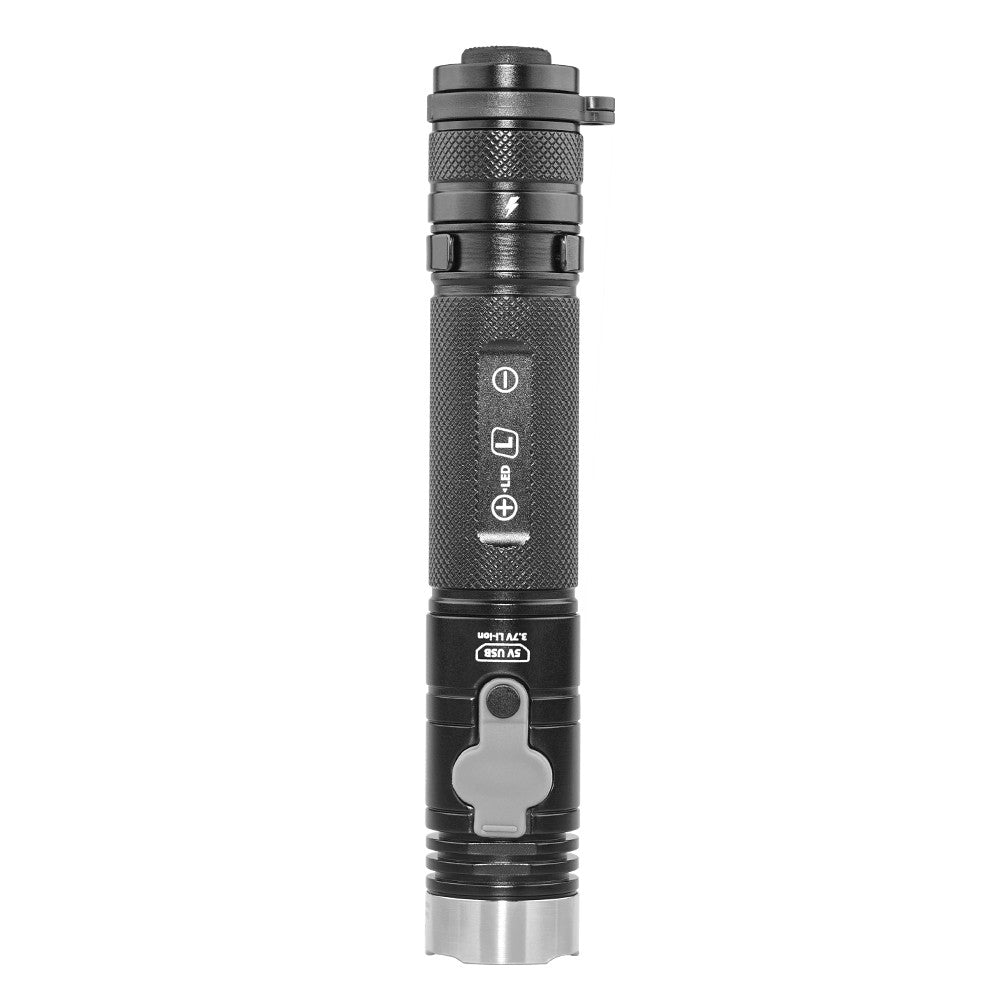

EagleTac DX3L MKII
| LED | Brightness Level | Waterproof | Specifications (Width, Length, Diameter) | Weight | Battery |
|---|---|---|---|---|---|
| CREE SST70 Cool White LED | 5 brightness levels | IPX-8 | 131mm (L)x22 mm (Body Dia.)x22.5mm(Head Dia.) | 106.3 grams | EAGTAC li-ion 18650 3400mAh |
-
- LED: Luminus SST70, Cool White LED

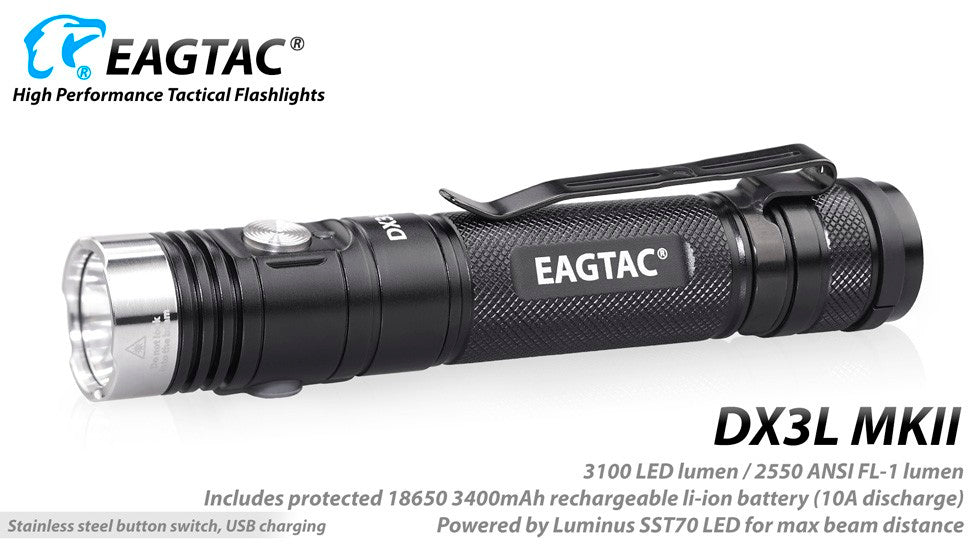

- Max output: 3100 LED lumen, ANSI 2550 lumen

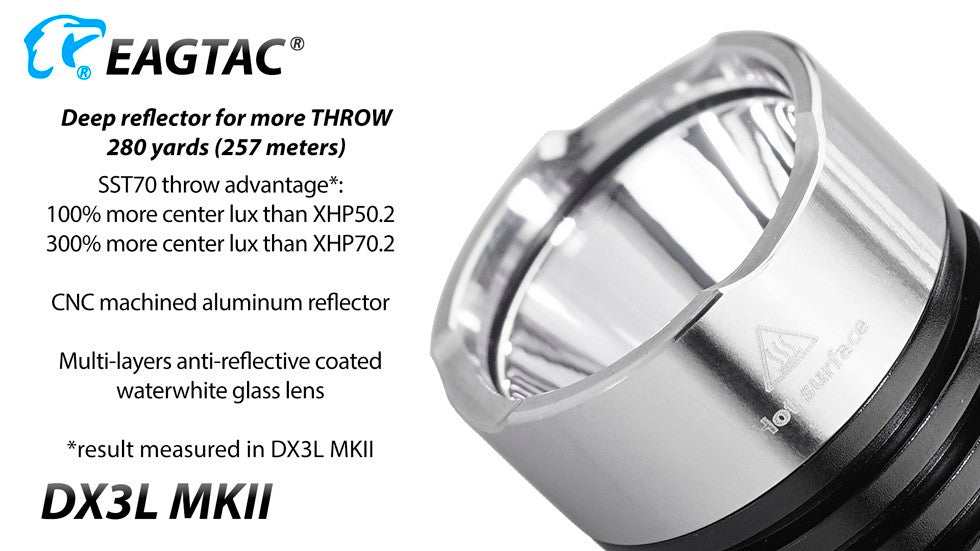

- Reflector: Aluminum reflector with smooth coating
- Material: HAIII hard anodization aerospace aluminum
- Waterproof: IPX-8 standard
- Lens : Harden water white glass lens w/ anti-reflective coating on both side
- LED direct soldering on copper for maximum heatsink ability
- User replaceable glass lens
- Battery reverse polarity protection
- Ultra low internal resistance phosphor bronze springs (silver coated)
- Spring loaded positive and negative terminal
- Bi-directional pocket clip design

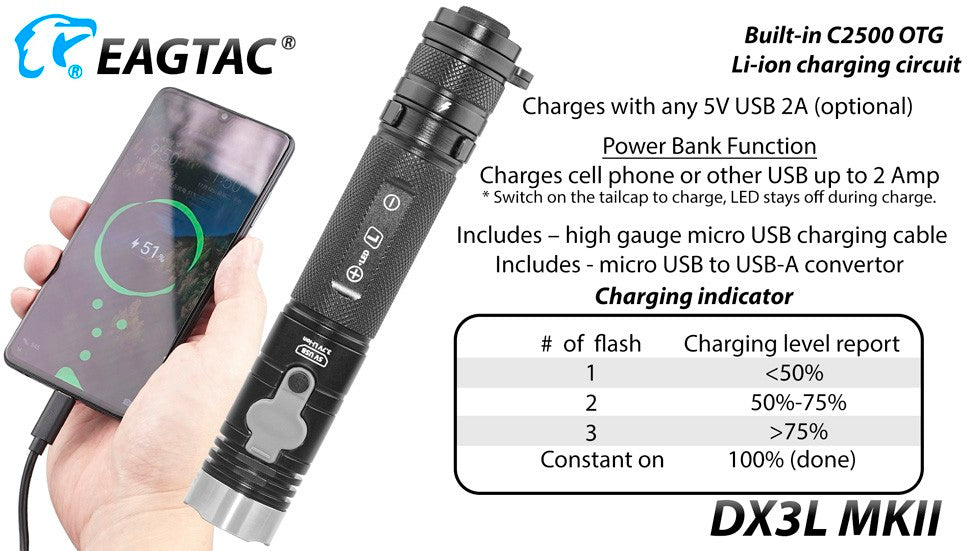

- Built-in li-ion charger
-

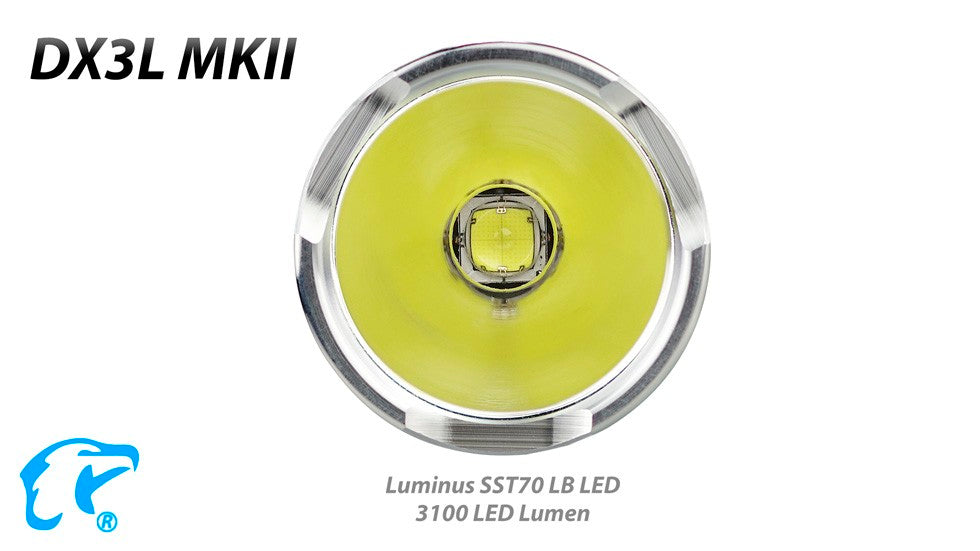

- Luminus SST70 LB LED
- Center lux : 16,500 lux
- Beam distance : 280 yards / 257 meters
- Led lumen : 3100-1100/1100/480/190/25 LED lumen
- ANSI FL-1 lumen : 2550-950/950/400/160/22 ANSI lumen
- 0.7-1.1/1.6/5.4/18/190 hours
- Hidden auxiliary outputs : Disorienting Strobe / Beacon (1.67Hz)

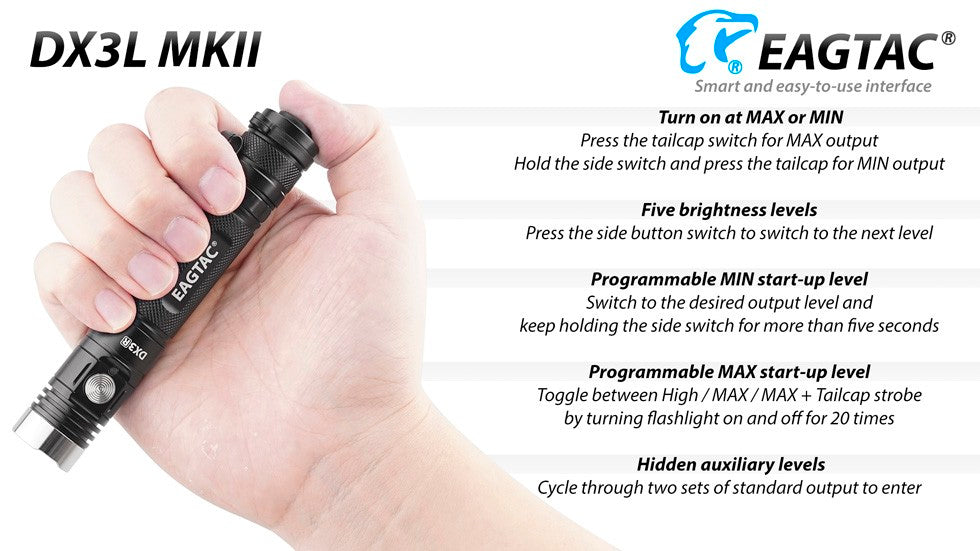

- Control Type : Side switch | Tactical forward clicky tail cap switch
-
- Head Diameter : 0.9 inches (22.5 mm)
- Body Diameter : 0.85 inches (22 mm)
- Length : 5.1 inches (131 mm)
-
Weight ( with battery ) : 3.8 ounces (106.3grams)
-
-

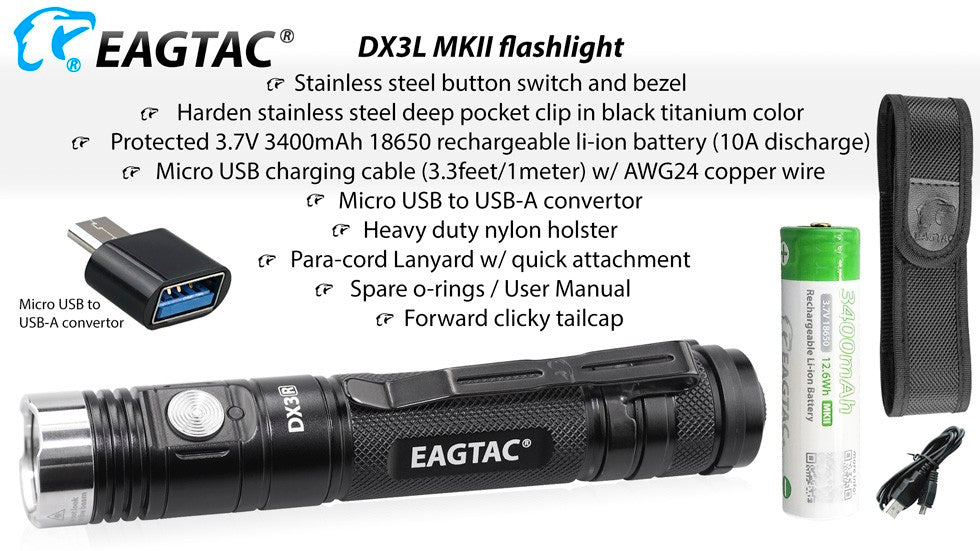

EagleTac DX3L MKII
- User Manual
- Crenulated stainless steel bezel
- Harden stainless steel deep pocket clip in titanium alloy dark vacuum coated finish
- USB cord
- O ring
- USB Cover
- Holster
- Mil-Spec Para-cord Lanyard w/ quick attachment clip
- EAGTAC 3.7V 18650 3400mAh rechargeable protected li-ion battery (10A discharge) included
- Micro USB charging cable
-
-
Always use proven EAGTAC batteries for best performance and reliability.
All EAGTAC flashlights are designed to use button-top battery (battery with protruding positive terminal). For rechargeable li-ion battery, use only EAGTAC li-ion battery, or other protected li-ion battery with compatible length and diameter. Before using the battery, check and ensure the battery outer wrapping (the isolating plastic film that wraps around the metal housing of the battery) is complete. Broken battery wrapping may lead to short circuit and damage to the flashlight.
Lithium and Li-ion battery can explode or cause burns if disassembled, shorted, or exposed to high temperature. Do not mix new and used batteries. Do not mix batteries with different brand, capacity, voltage, or install batteries backwards.
NiMH rechargeable battery may release gas during discharge. If you experience an inflated switch boot or find high pressure being built inside the flashlight, switch off the flashlight immediately. Slowly loosen the tail-cap to reduce the internal pressure and replace all batteries.
