Description
Overview

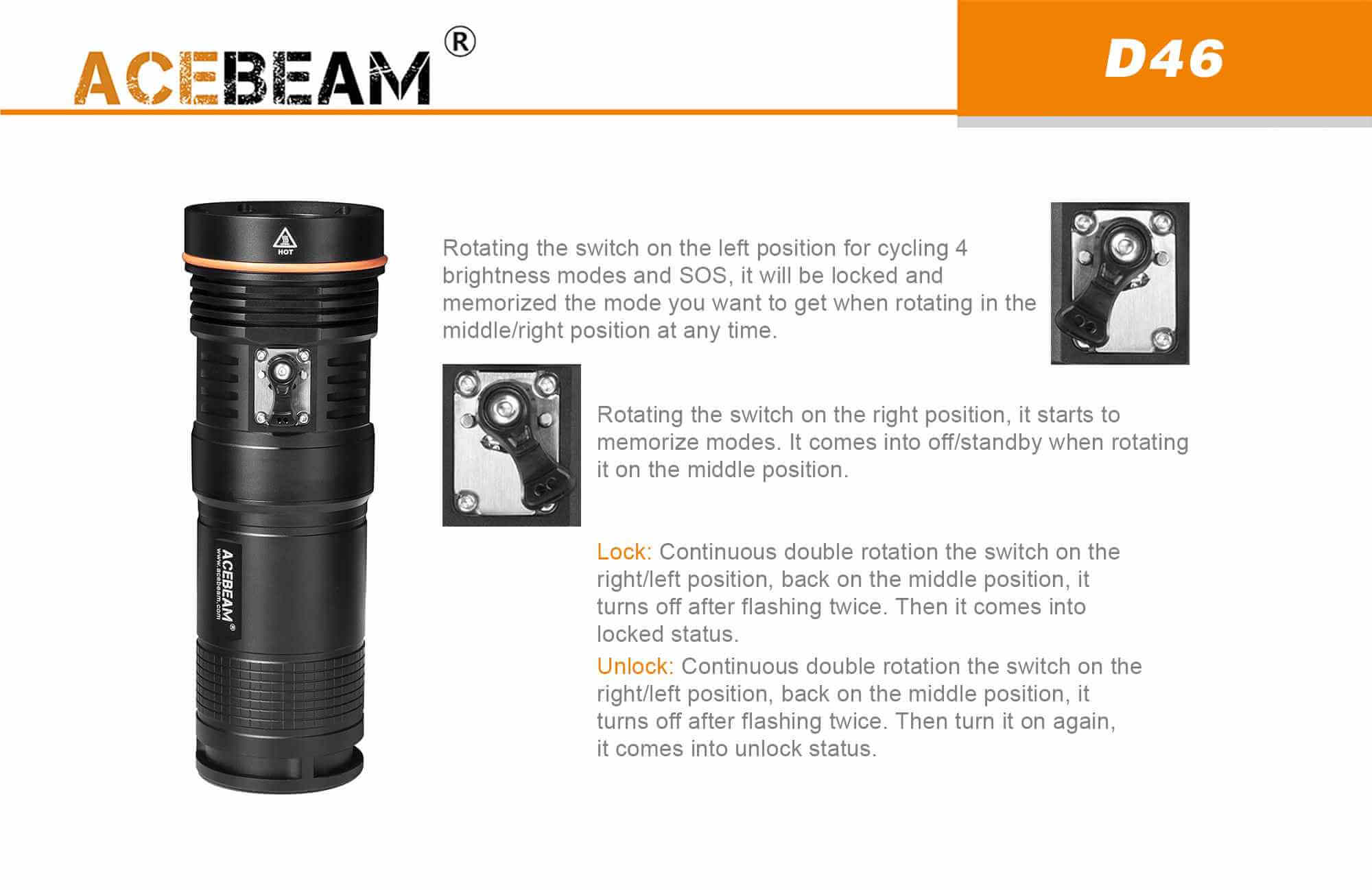

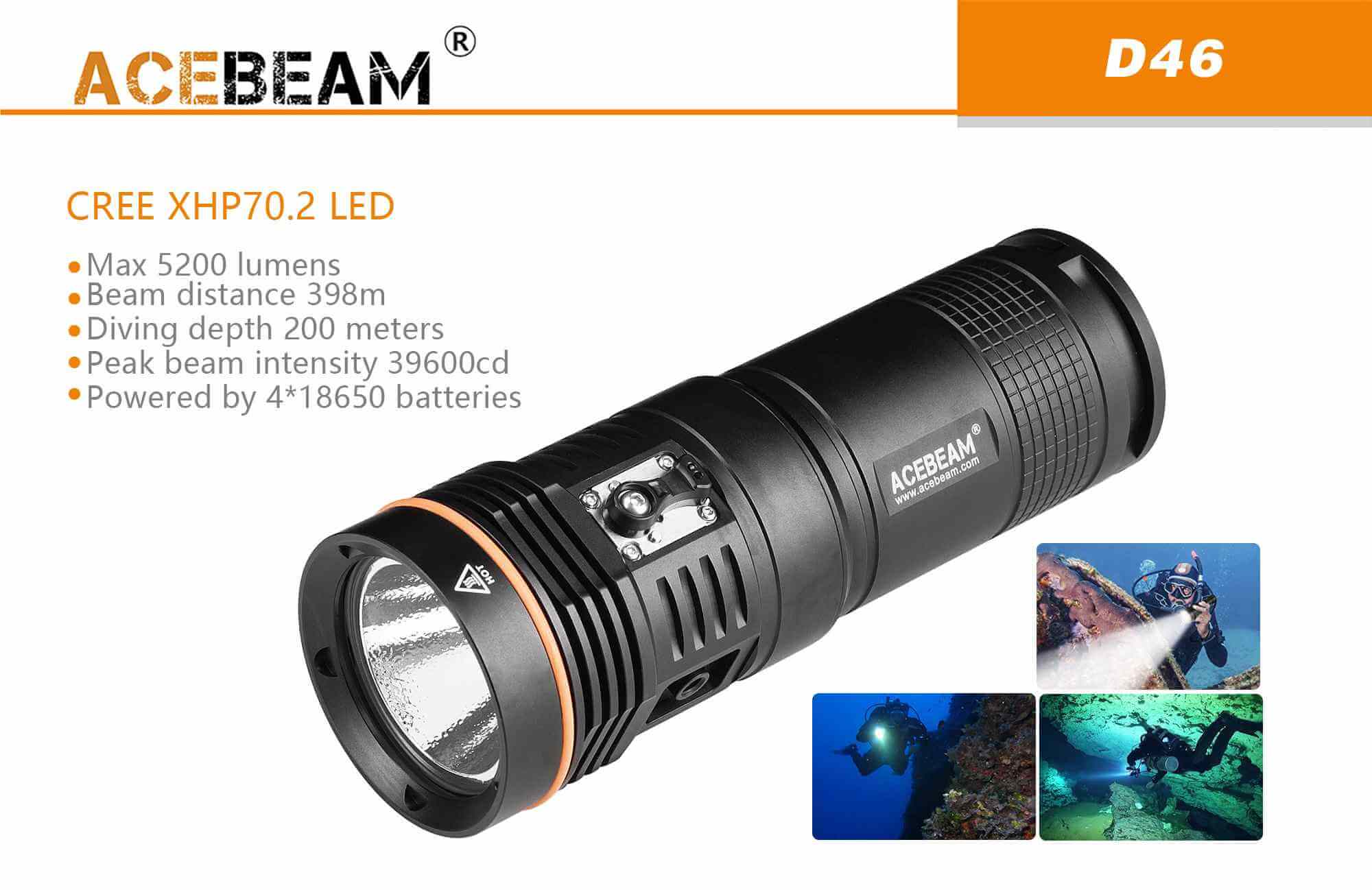

The solid and compact ACEBEAM D46 is a powerful dive light which is equipped with a CREE XHP70.2 LED, and generates the excellent brightness up to 5200 lumens. It emits the max beam distance of 398 meters. D46 is powered by 4*18650 batteries, which allows a maximum runtime of up to 15 hours at the lowest brightness level of 450 lumens. The versatile modes of output (Mode 1 - Mode 4, SOS) are easily accessible by simply rotating the side switch. D46 is designed for a depth of up to 200 meters . There is a standard 1 ball joint diving arm for easy camera set-up. D46 is not only a diving light, but also can be used on land as searchlight too. D46 is a perfect light for different illumination.
Acebeam D46 Specs
| LED | Brightness Level | Waterproof | Specifications (Width, Length, Diameter) | Weight | Battery |
|---|---|---|---|---|---|
| ·CREE XHP70.2 | 4 output level | 200 meters | 167.2mm (length) x 58mm (bezel) x 53.6mm (body dia.) | 511g | 4 x 18650 |

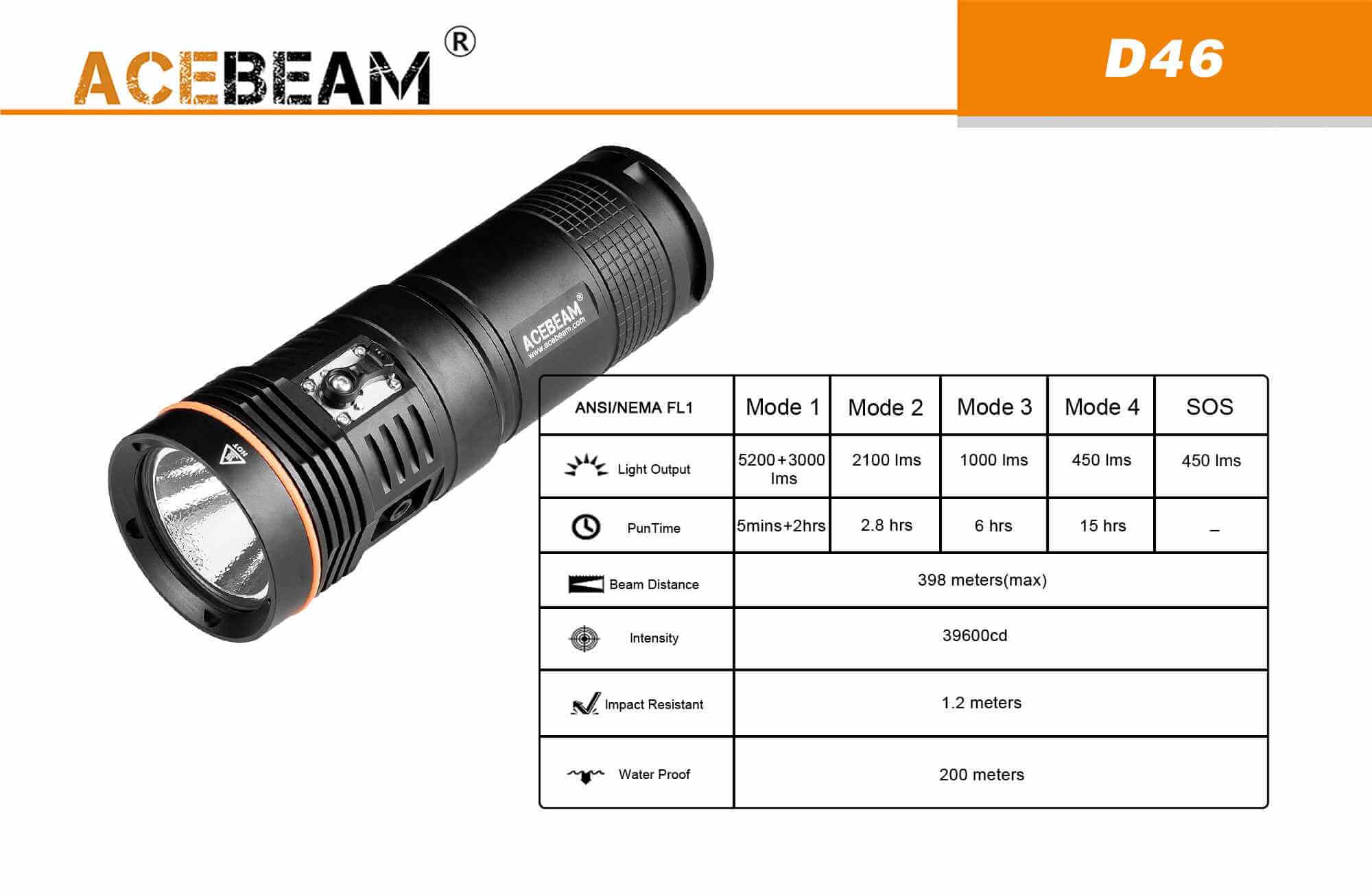

| ANSI / NEMA FL1 | General Mode | ||||
|---|---|---|---|---|---|
| Mode 1 | Mode 2 | Mode 3 | Mode 4 | SOS | |
| Output (lumens) | 5200 + 3000 | 2100 | 1000 | 450 | 450 |
| Runtime | 5min + 2hrs | 2.8h | 6h | 15h | - |
| Max Distance (398m) | |||||
| Intensity ( 39,600cd ) | |||||
|
Impact Resistant (1.2 m) Water Proof (200m) |
|||||
-
- LED: CREE XHP70.2 with a lifespan of 50,000 hours
- Use 4*18650 batteries
- Rated operation voltage 12V to 16.8V
- Copper base plate for more efficient heat dissipation

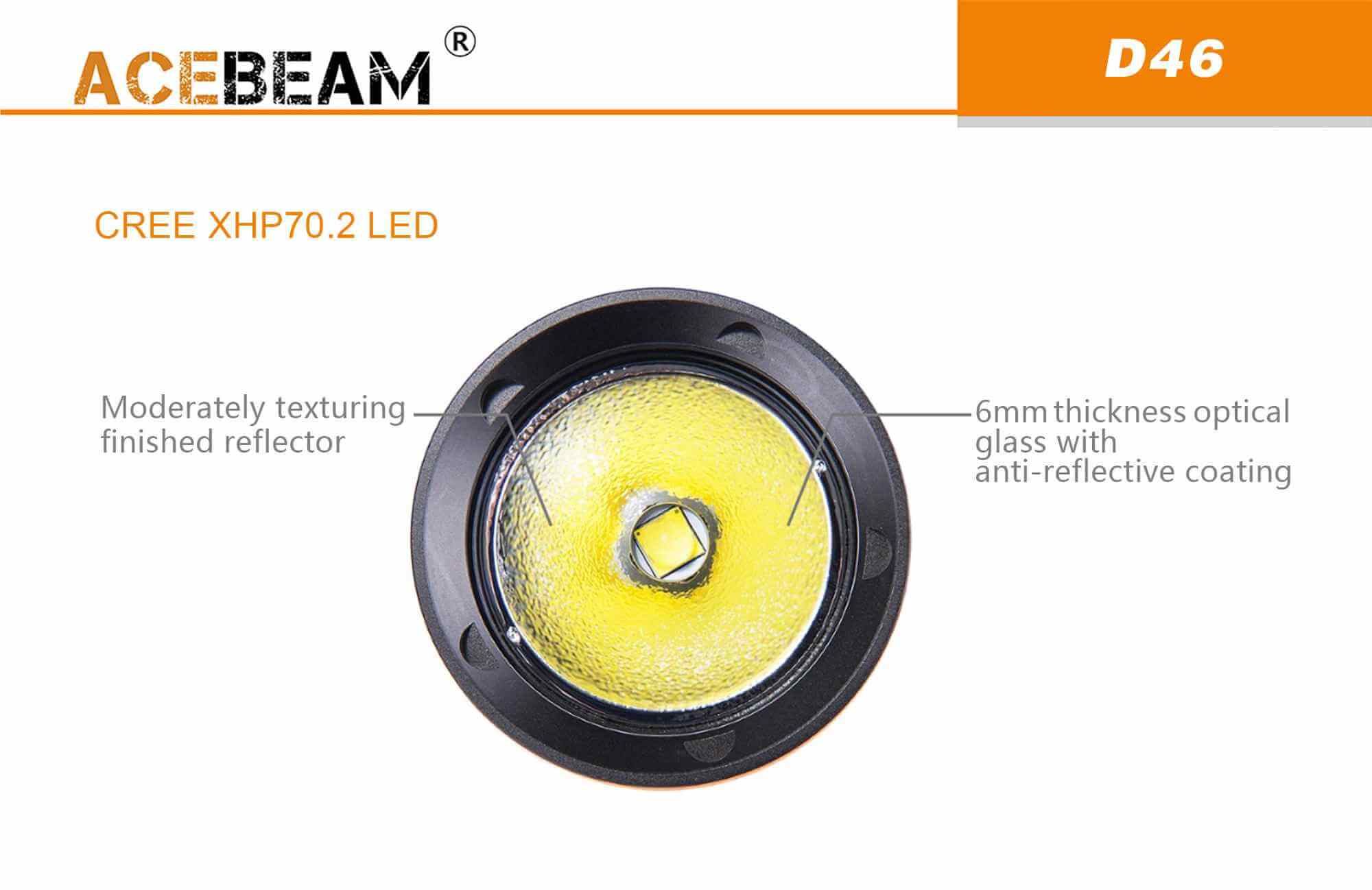

- Moderately texturing (orange peel) finished reflector
- Max. Runtime: 15 hours (450 lumens)
-
Total 4 modes output:
Mode 1: 5200 lms + 3000 lms (5mins + 2 hours)
Mode 2: 2100 lms (2.8 hours)
Mode 3: 1000 lms (6 hours)
Mode 4: 450 lms (15 hours)
SOS Mode: 450 lms
-
Max. Beam distance: 398 meters
-
Peak beam intensity: 39600cd
-
Impact resistance: 1.2 m
-
Depth underwater: 200 meters
-

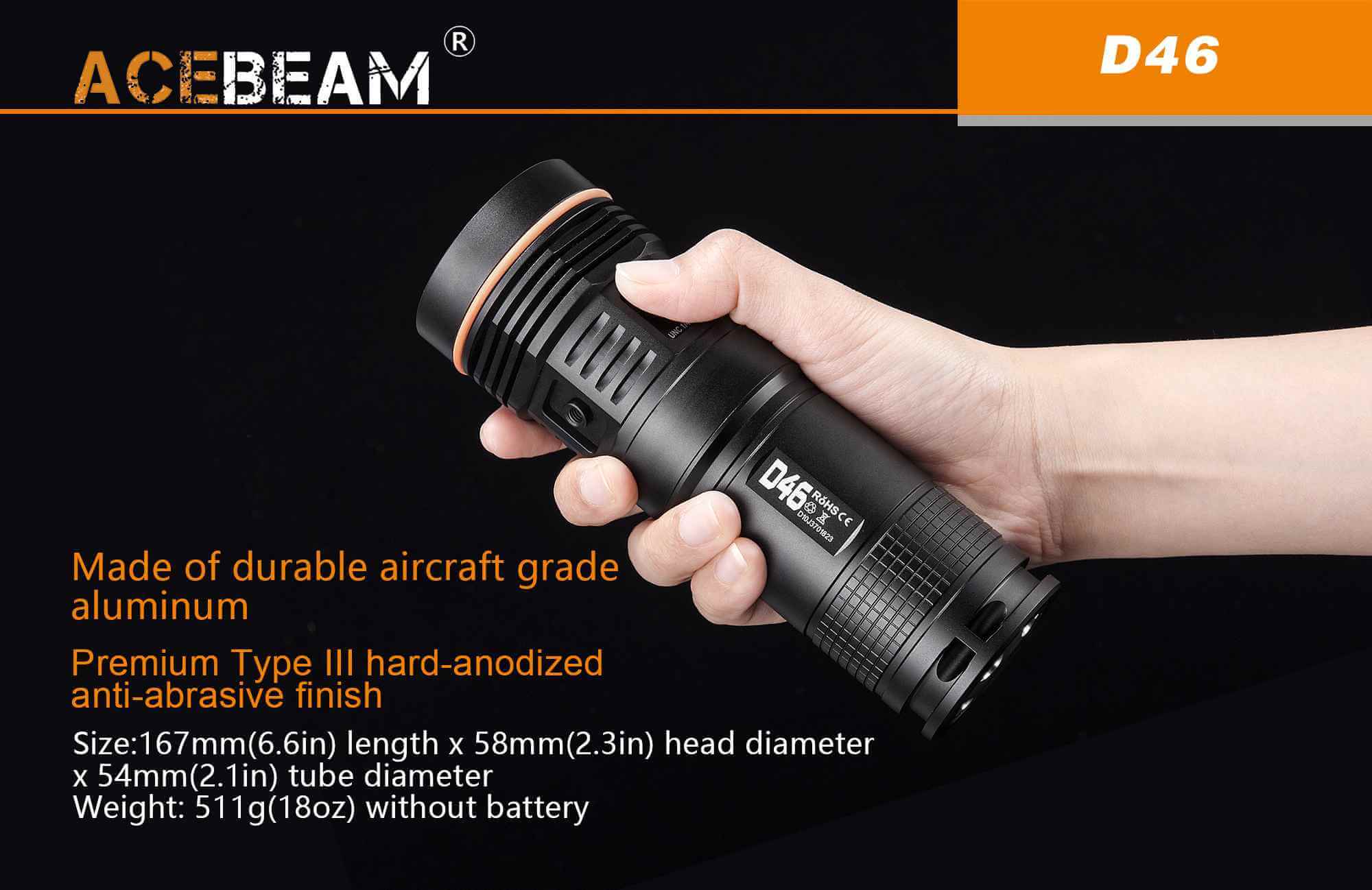

Made of durable aircraft grade aluminum
-
Premium Type III Hard-anodized anti-abrasive finish
-
Toughened ultra-clear glass lens with anti-reflective coating

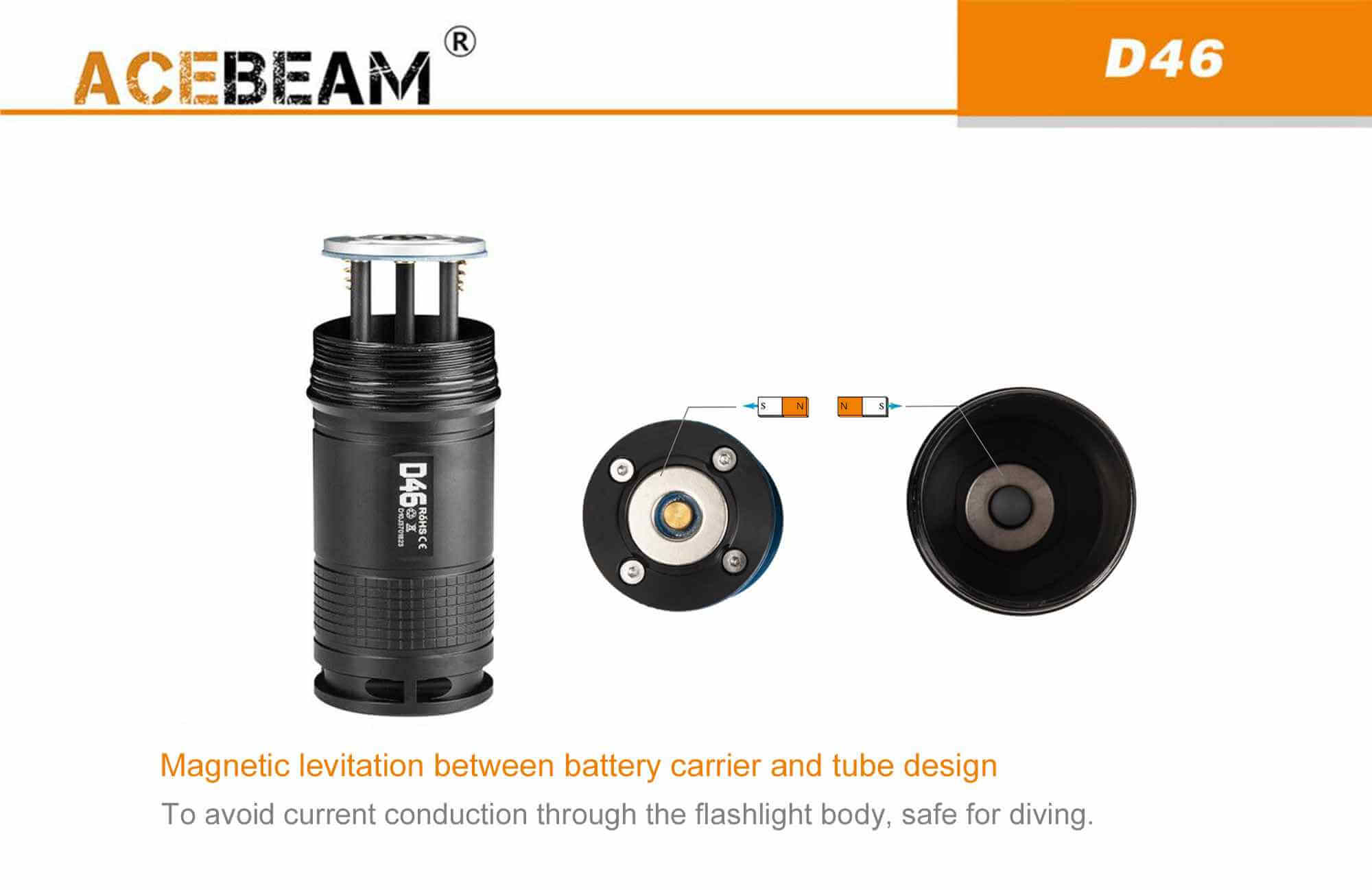

- Battery protection function; and battery low indication (it will flash when voltage down to 12.8V or so)
-
Dimension
-
- Length:167.2mm
- Bezel: 58mm
- Body Diameter: 53.6 mm
- Weight: 511g (w/o battery)

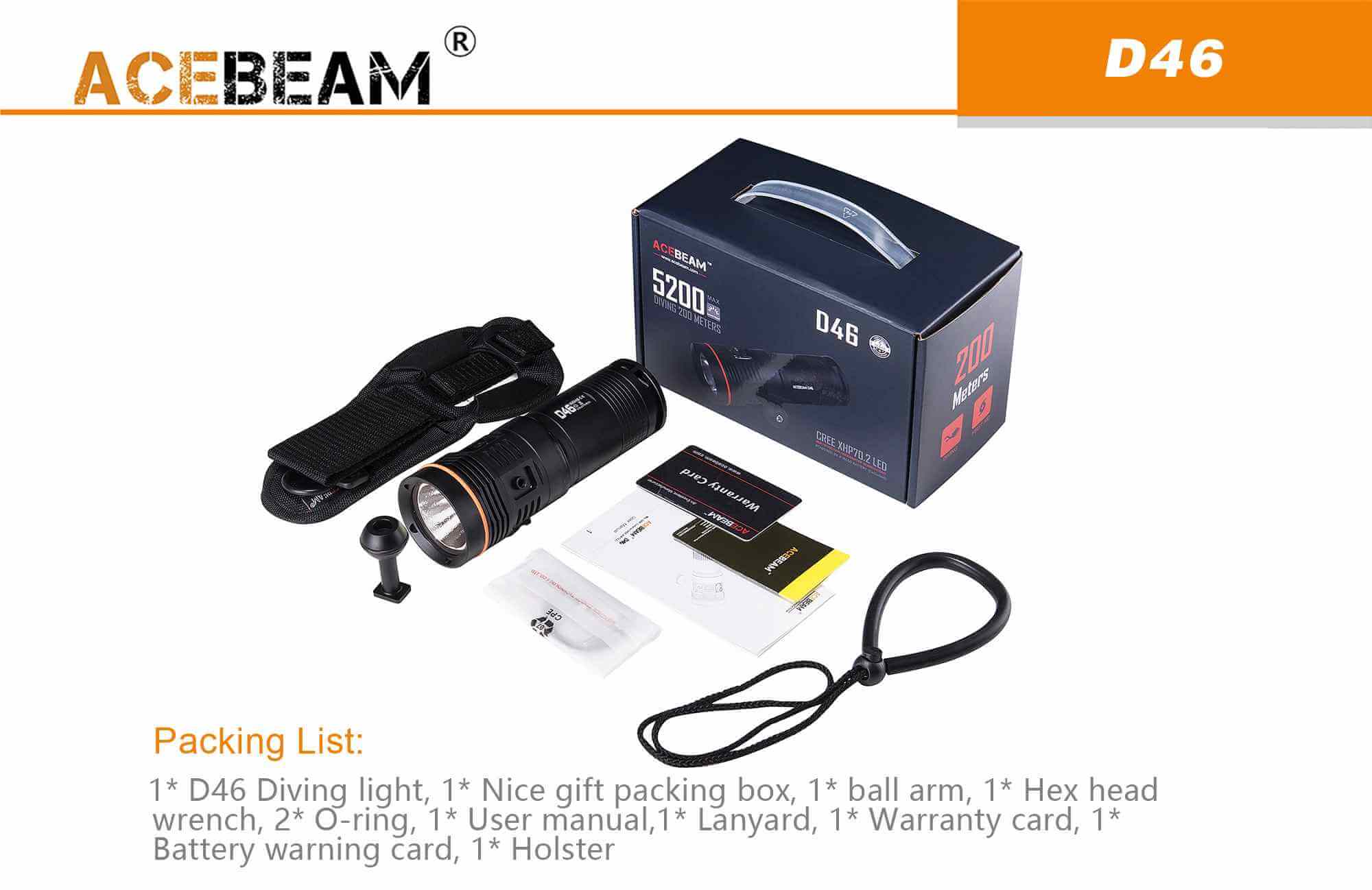

- Included Accessories :
-
- Nice gift packing box
- ball arm
- Hex Head wrench
- 2 x Spare O-ring
- Lanyard
- Holster
- User Manual
- Battery Warning card
- Warranty Card
- 4 x Eagtac 18650 3400 mAh batteries
