Upgraded to Nitecore NL2150HPi

5000 mAh 21700 Battery,

Overview

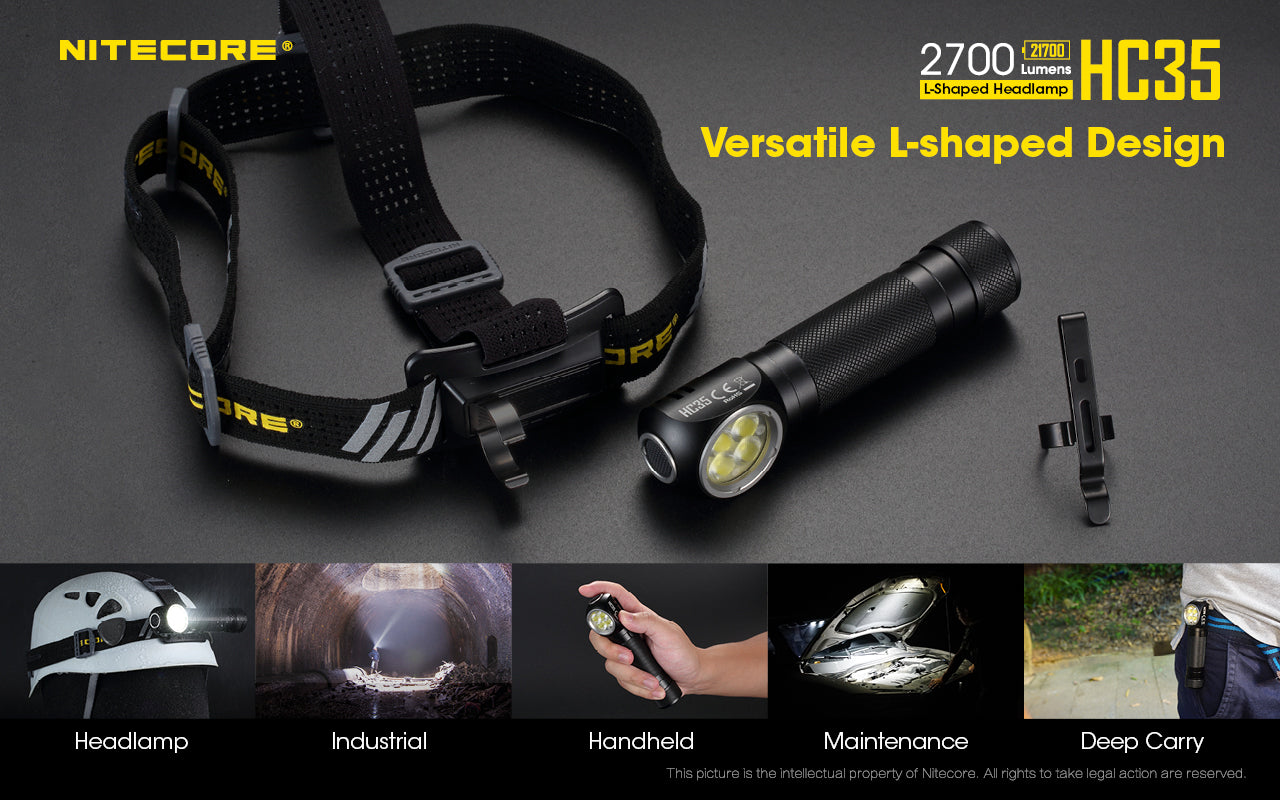

As a powerful upgraded L-shaped headlamp, the HC35 is released for industrial uses, handheld, maintenance, deep carry and more. Equipped with 4 x CREE

XP-G3 S3 LEDs with a lifespan of 50,000 hours, the HC35 has an ultra high performance of a max peak beam intensity of 4,500cd and a max throw of 134

meters. Specially designed for outdoor applications, the 100° wide range flood optic system ideally covers the field of view of human eyes. The bead surface

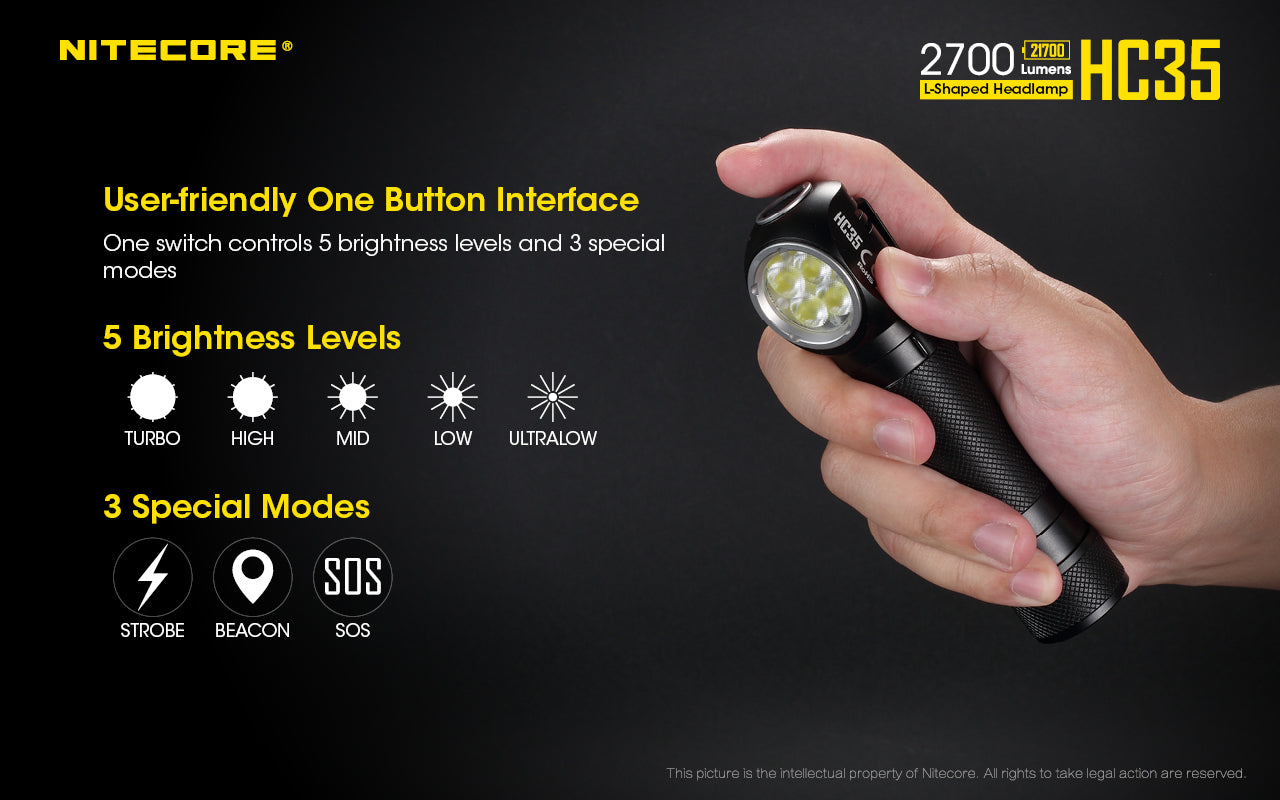

total reflective optic lens is precisely calculated to form a soft and comfortable beam. A single switch controls 5 brightness levels and 3 special modes.

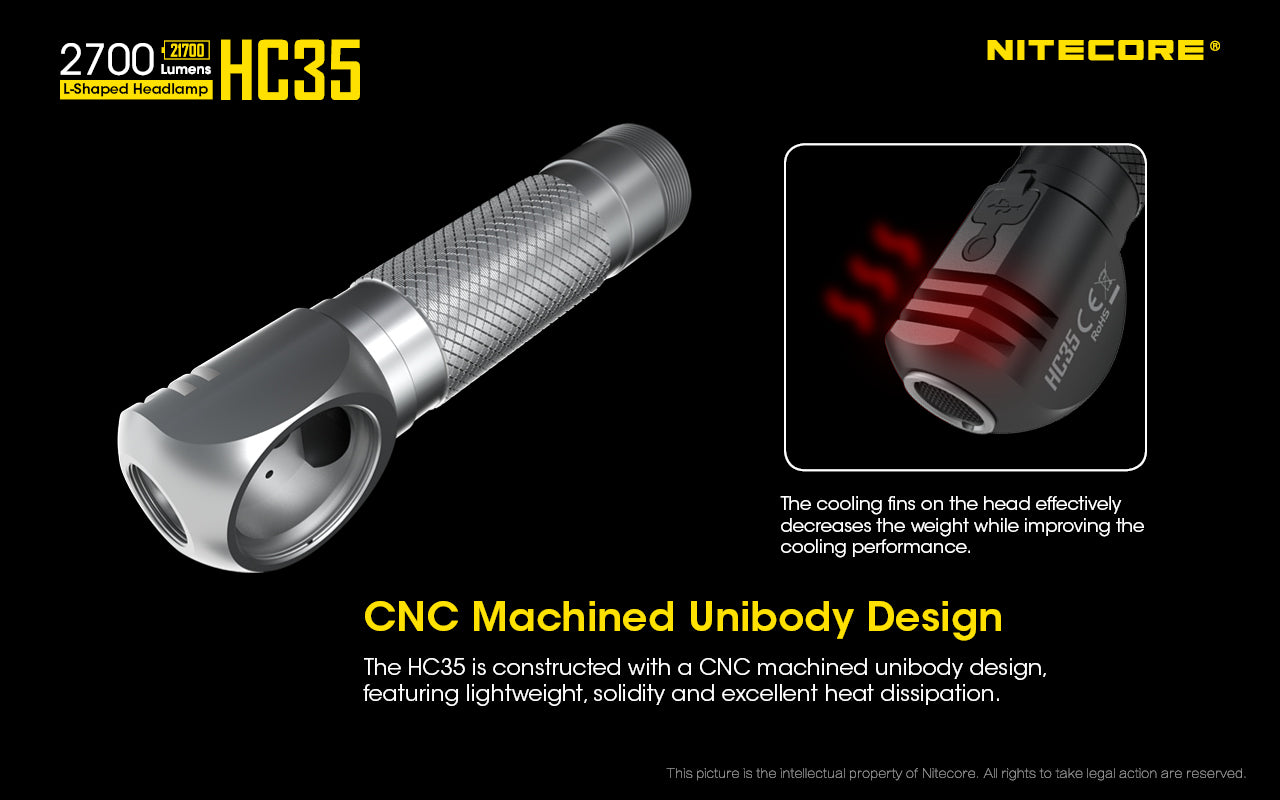

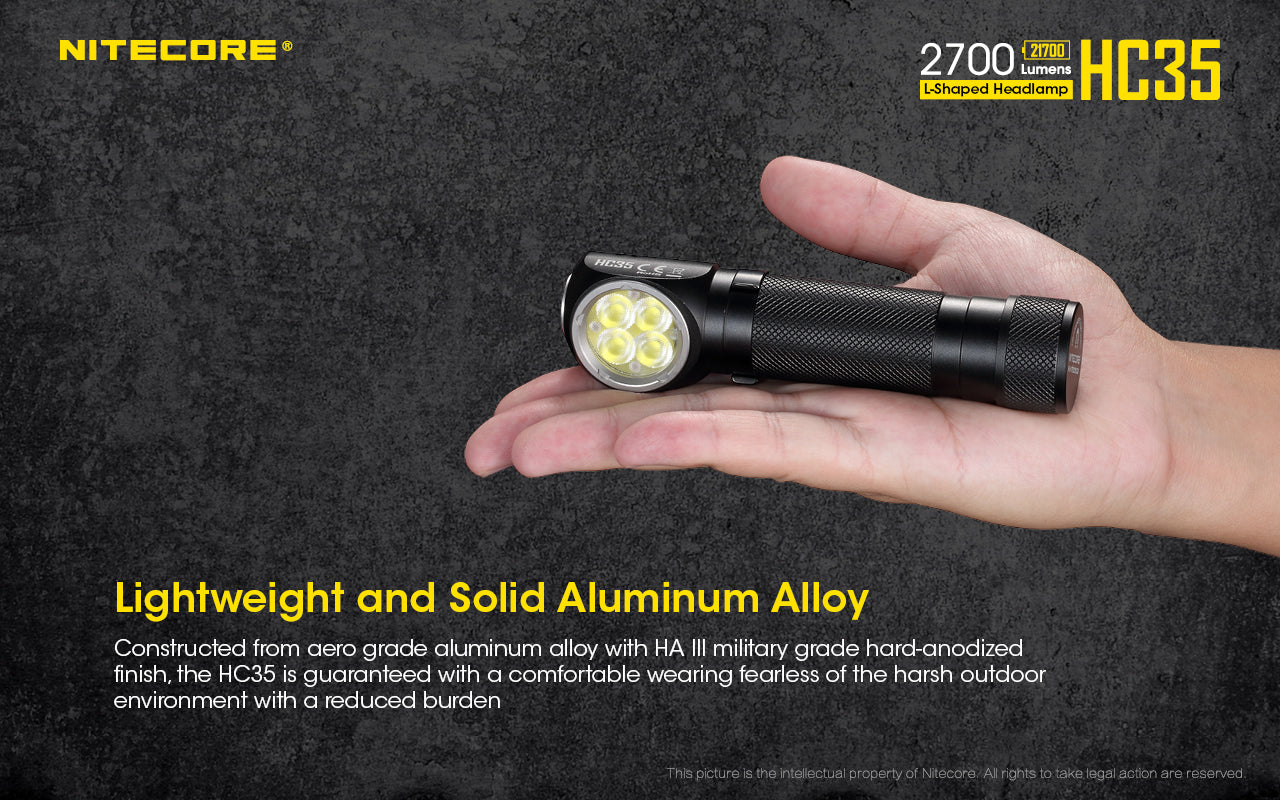

The HC35 is constructed with a CNC machined unibody design, featuring lightweight, solidity and excellent heat dissipation. Constructed from aero grade

aluminum alloy with HA III military grade hard-anodized finish, the HC35 is guaranteed with a comfortable wearing fearless of the harsh outdoor environment

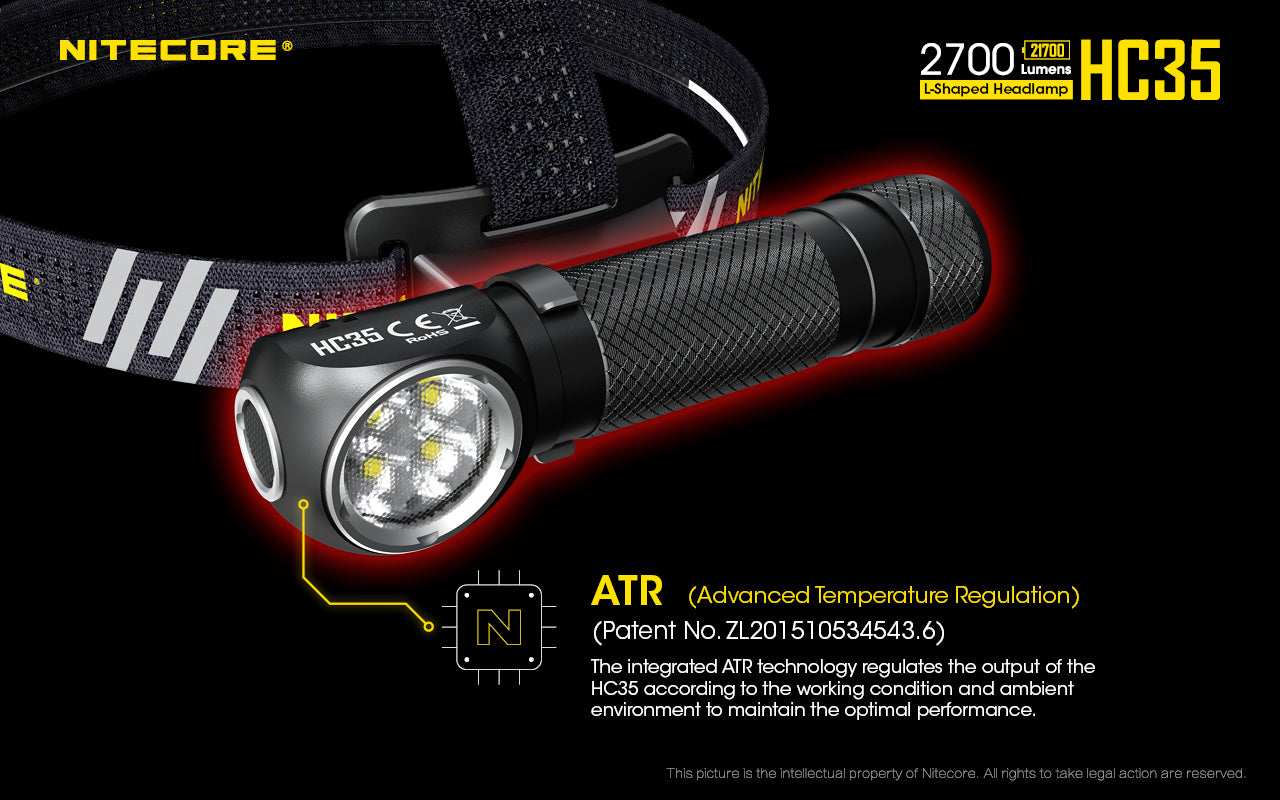

with a reduced burden. The cooling fins on the head effectively decreases the weight while improving the cooling performance. The integrated ATR technology

regulates the output of the HC35 according to the working condition and ambient environment to maintain the optimal performance.

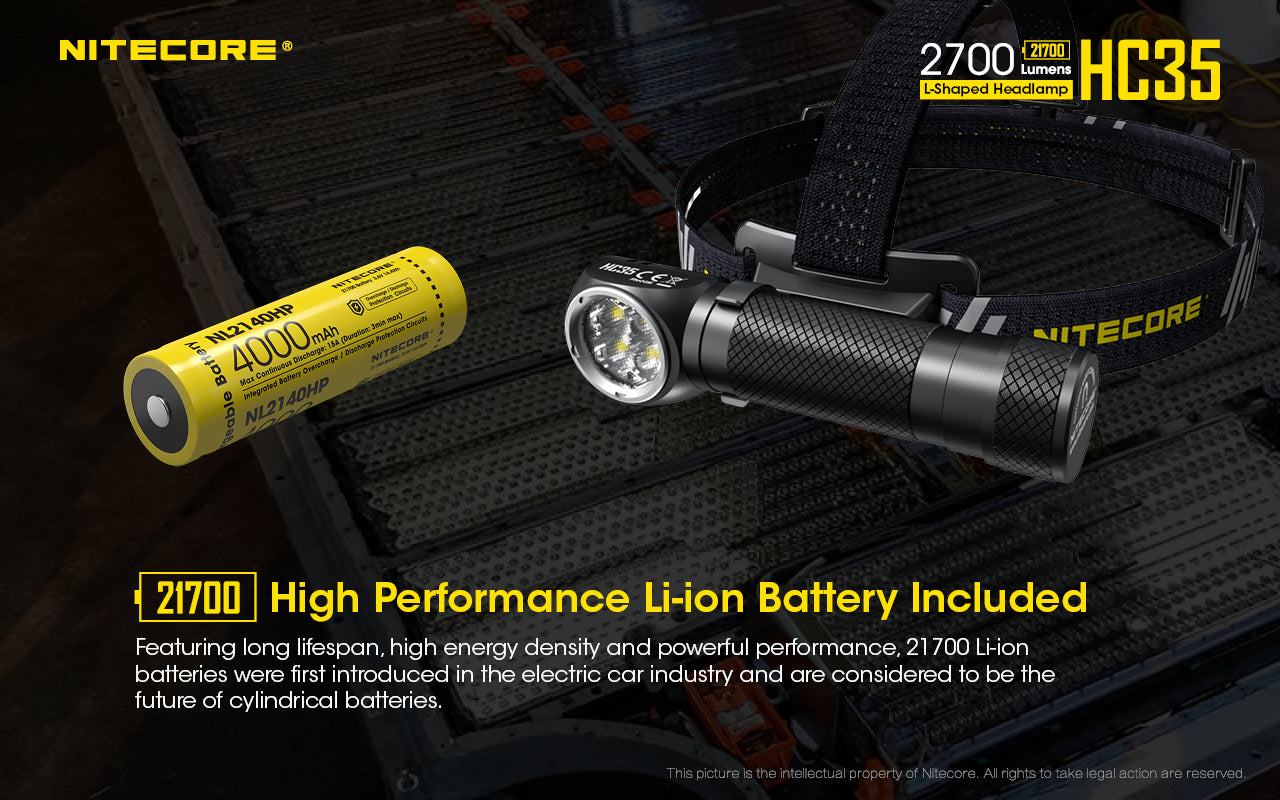

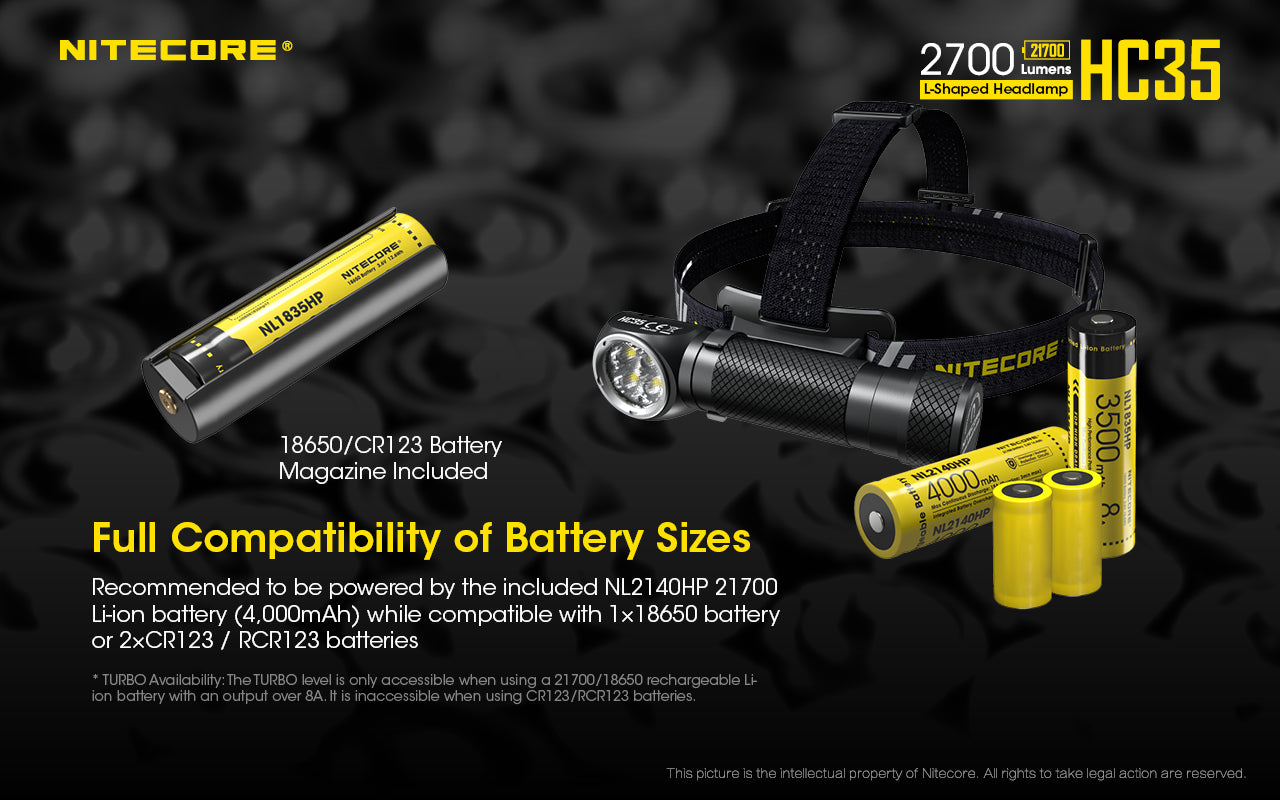

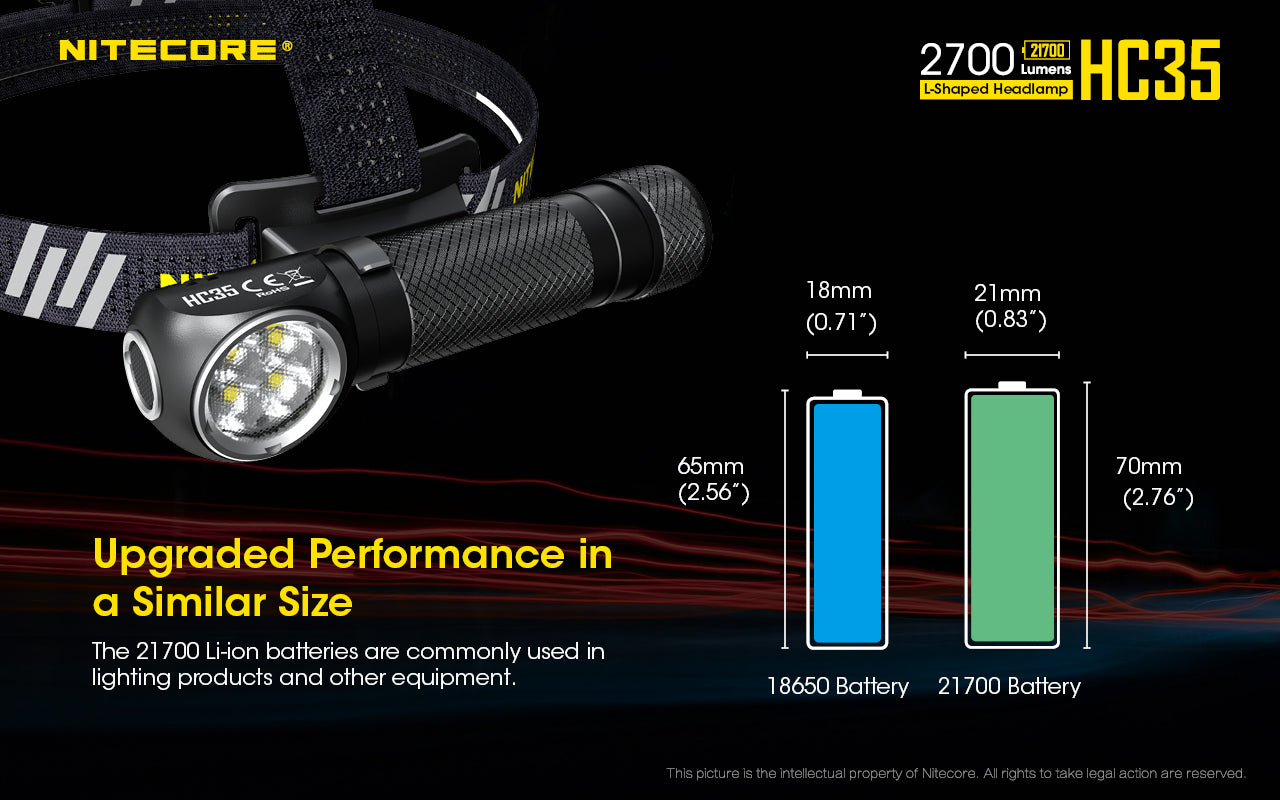

Powered by the next generation 21700 battery, the HC35 has an ultra long run time of 1,200 hours with consistent usage of 50 days on ULTRALOW. It is

recommended to be powered by the included NL2140HP 21700 Li-ion battery (4,000 mAh) while compatible with 1 x 18650 battery or 2 x CR123 / RCR123 batteries with the included 18650 battery magazine.

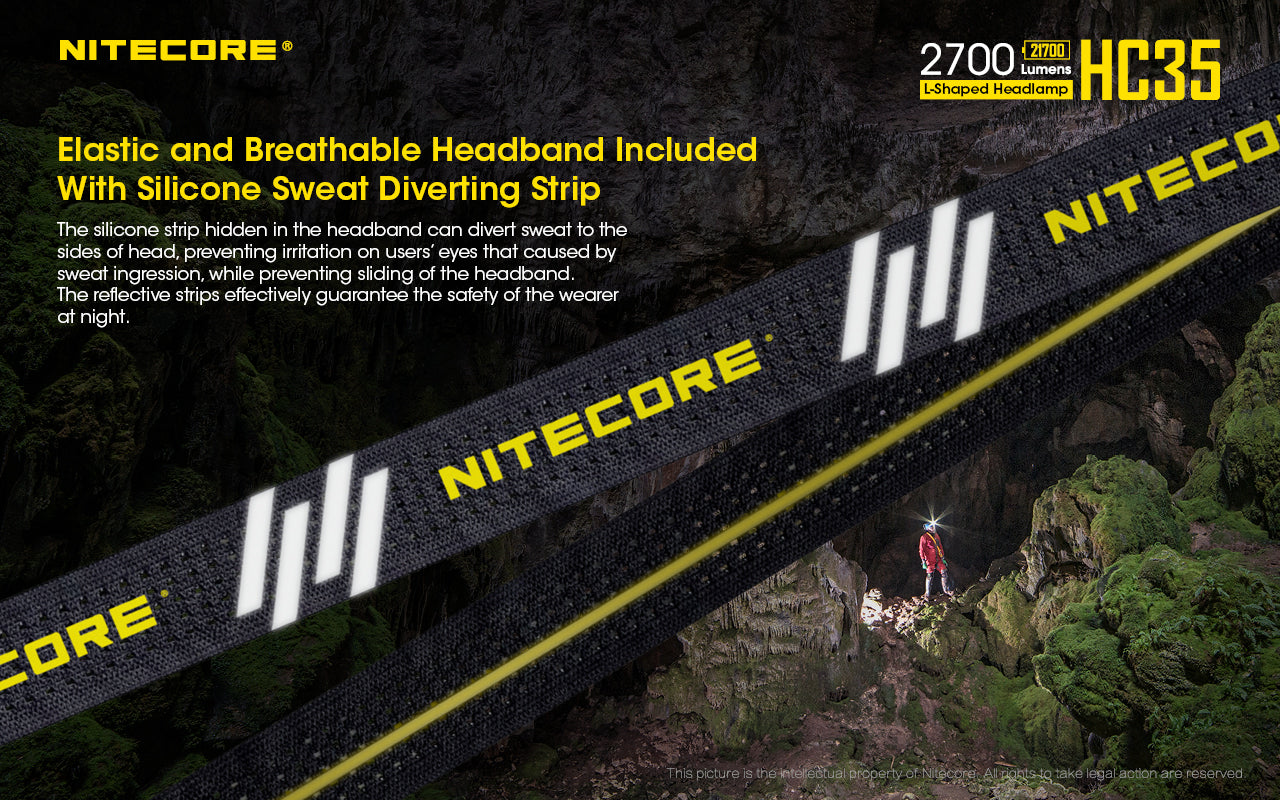

The elastic and breathable headband is included with the silicone strip hidden in the headband to divert sweat to the sides of head, preventing irritation on

users’ eyes that caused by sweat ingression, while preventing sliding of the headband. The reflective strips effectively guarantee the safety of the wearer at

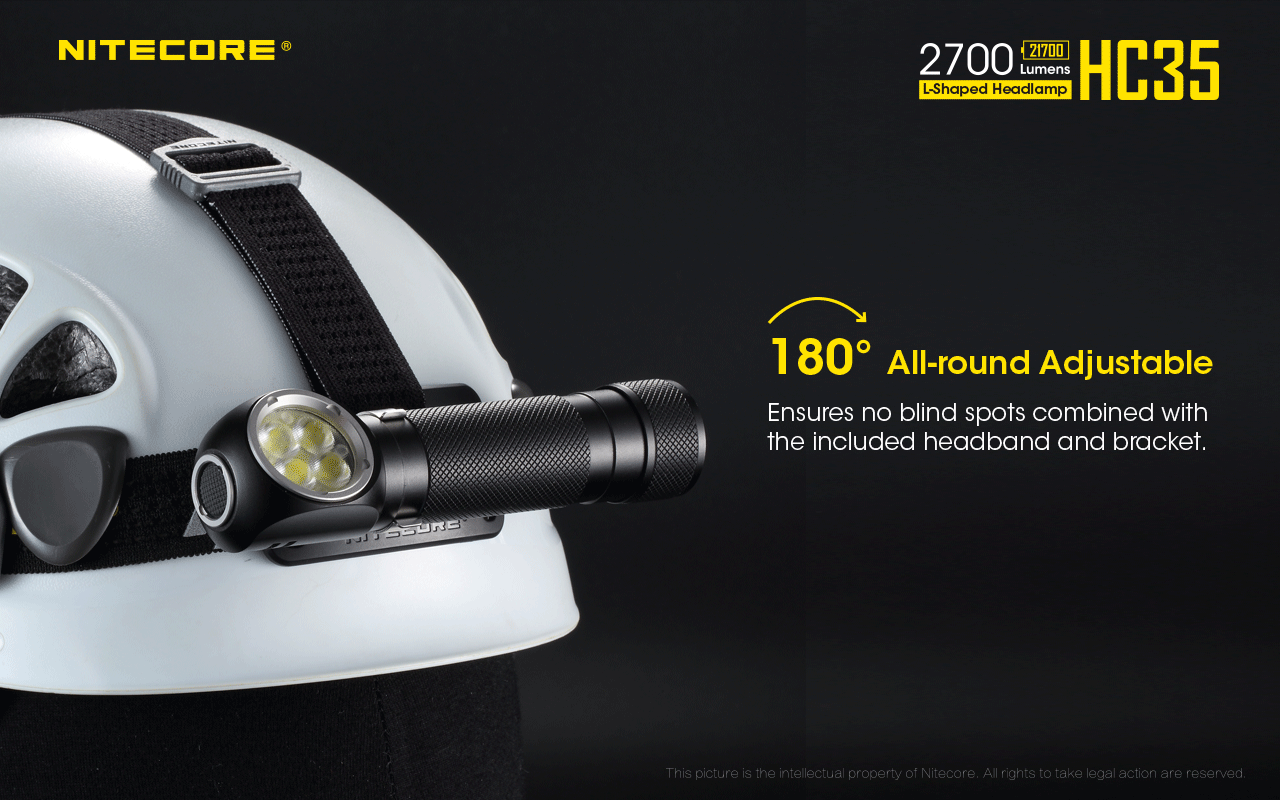

night. The HC35 is 180° all-round adjustable to ensure no blind spots combined with the included headband and bracket. The magnetic tail design enables

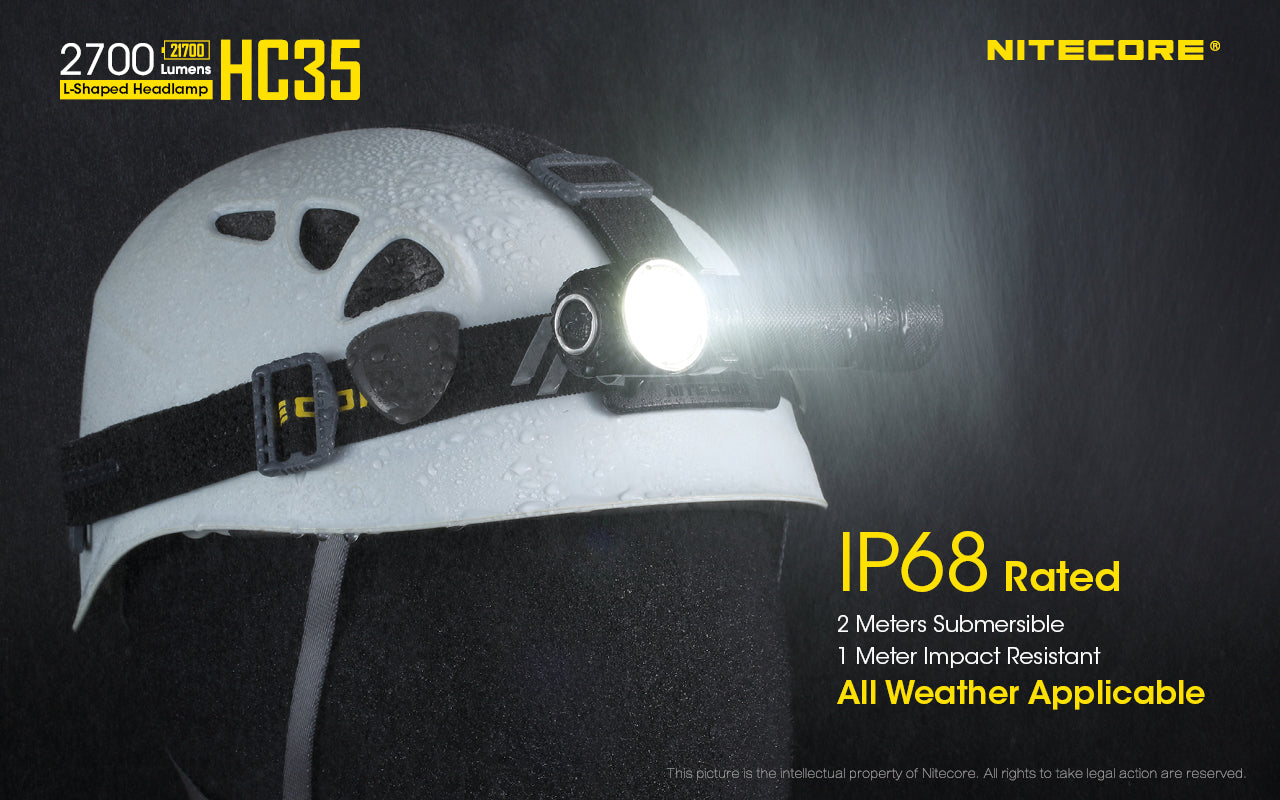

hands-free operations in outdoor or emergencies such as power cutoff or natural disasters. It is all weather applicable while IP68 rated, 2 meters submersible and 1 meter impact resistant.

Nitecore HC35 Technical Data

FLI STANDARD	TURBO	HIGH	MID	LOW	ULTRALOW	STROBE	BEACON	SOS
	2,700 LUMENS	800 Lumens	270 Lumens	40 Lumens	1 Lumens	2,700 Lumens	2,700 Lumens	2,700 Lumens
	45 min*	3 h	8 h 15 min	52 h	1,200 h	----------	-----------	---------
	134 m	73 m	40 m	14 m	3 m	-----------	------------	---------
	4,500cd	1,300cd	400cd	52cd	2cd	---------	------------	---------
	1 m ( Impact Resistance )
	IP68 , 2m ( Waterproof and Submersible )

 Note : The stated data is measured in accordance with the international flashlight testing standards  ANSI / NEMA FL1, using 1 x 21700 Li-ion Battery (5000 mah) under laboratory conditions. Th data may vary in real world use due to different battery usage or environmental conditions.

* The runtime for Turbo mode is tested without the temperature regulation.

* TURBO Availability : The TURBO level is only accessible when using a 21700 / 1865 rechargeable Li-ion battery with an output over 8A. It is inaccessible when using CR123 / RCR123 batteries.
