Overview:

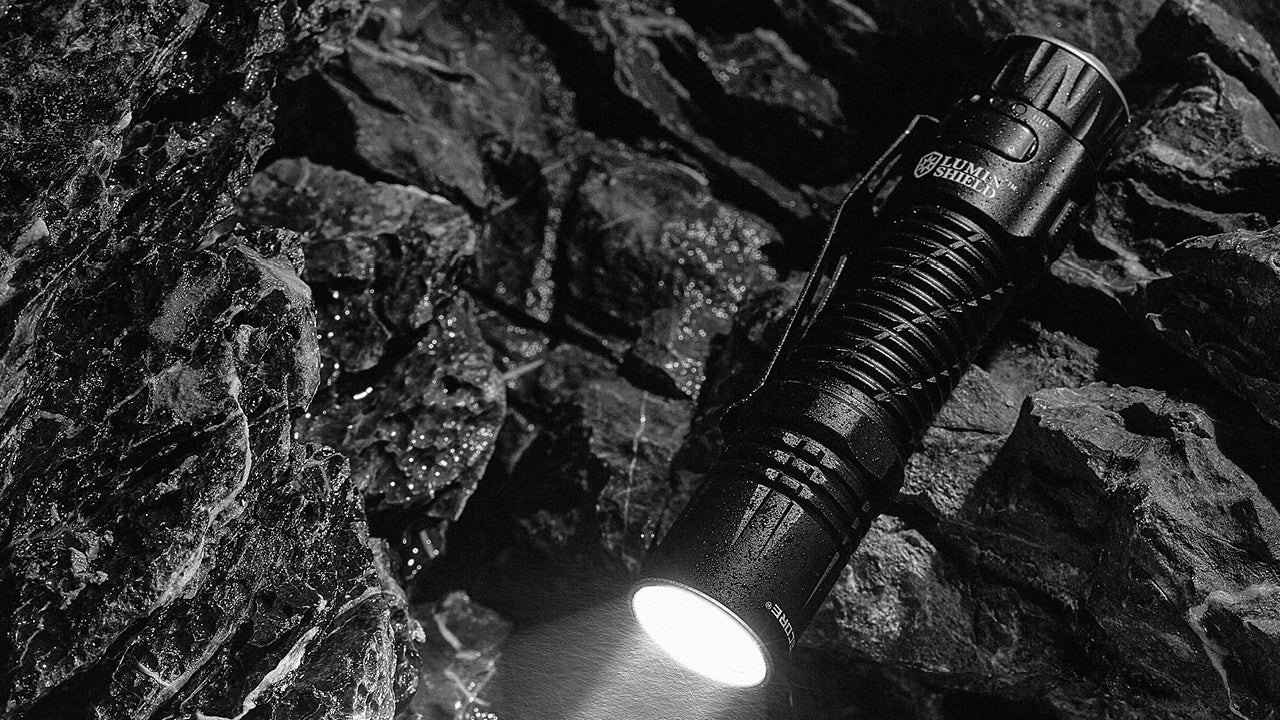

NITECORE today unveiled its year-end flagship product, the Tactical EDC Flashlight EDC33. This launch introduces four groundbreaking technologies: UHi 20 MAX LED, LUMIN SHIELD™, Rapid Lock™, and a 4,000mAh 18650 Li-ion battery, setting a new benchmark in the industry for professional EDC flashlights with its superior performance and user experience.

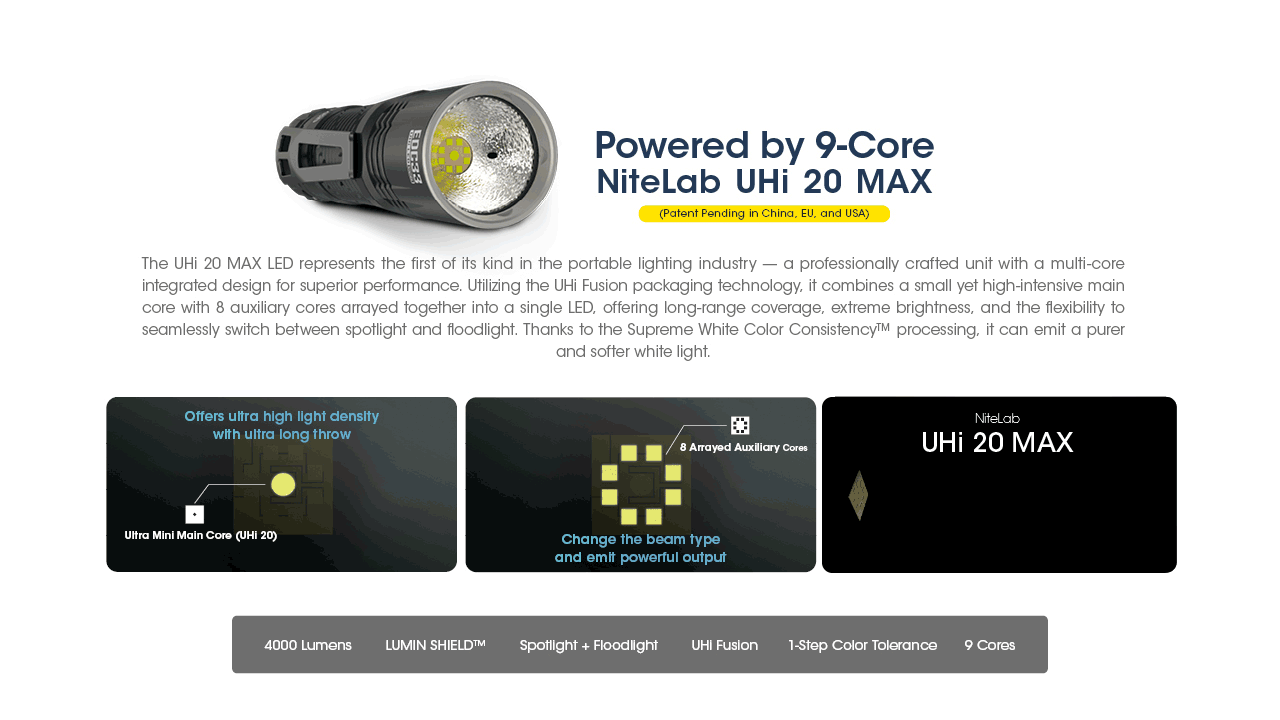

The UHi 20 MAX LED represents the first of its kind in the portable lighting industry — a professionally crafted unit with a multi-core integrated design for superior performance. Utilizing the UHi Fusion packaging technology, it combines a small yet high-intensive main core with 8 auxiliary cores arrayed together into a single LED, offering long-range coverage, extreme brightness, and the flexibility to seamlessly switch between spotlight and floodlight. Thanks to the Supreme White Color Consistency™ processing, it can emit a purer and softer white light.

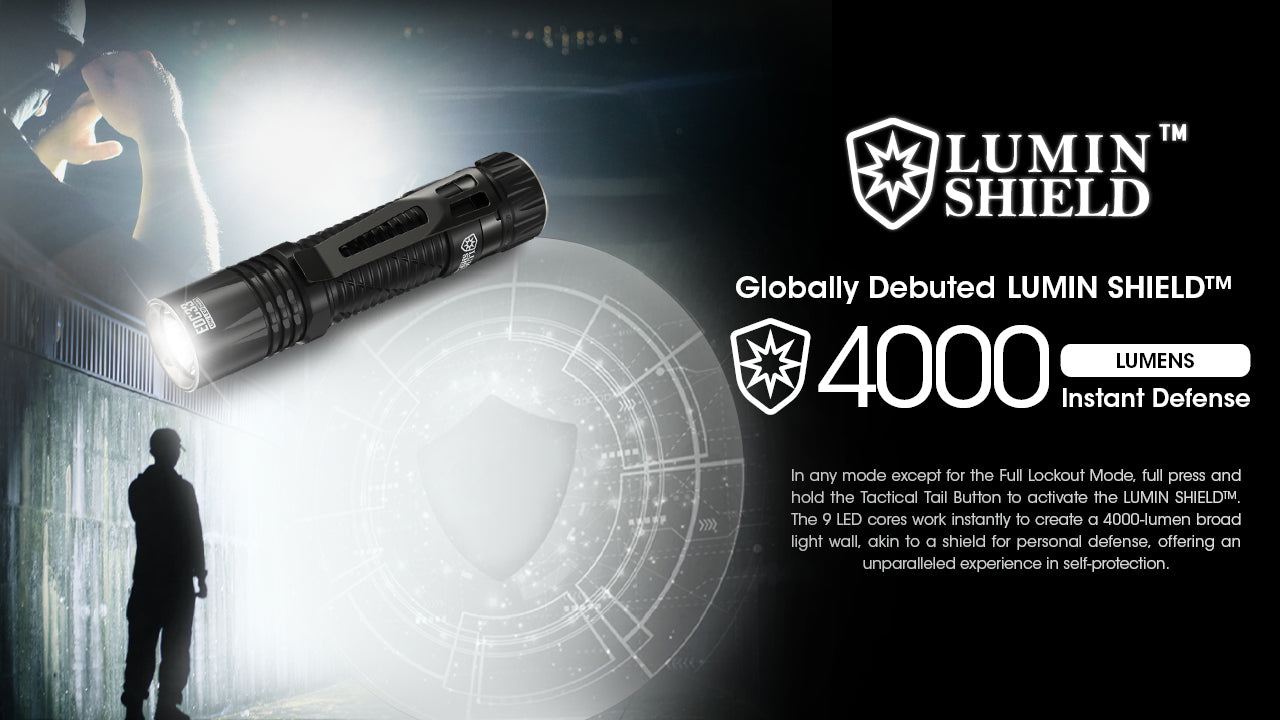

The EDC33 features the first-ever LUMIN SHIELD™. When activated during night-time emergencies, the LUMIN SHIELD™ coordinates 9 LED cores to swiftly generate a 4000-lumen "light wall", akin to a large shield for personal defense, offering an unparalleled experience in self-protection. In any mode except for the Full Lockout Mode, users can full press and hold the Tactical Tail Button to activate the LUMIN SHIELD™ for instant defense.

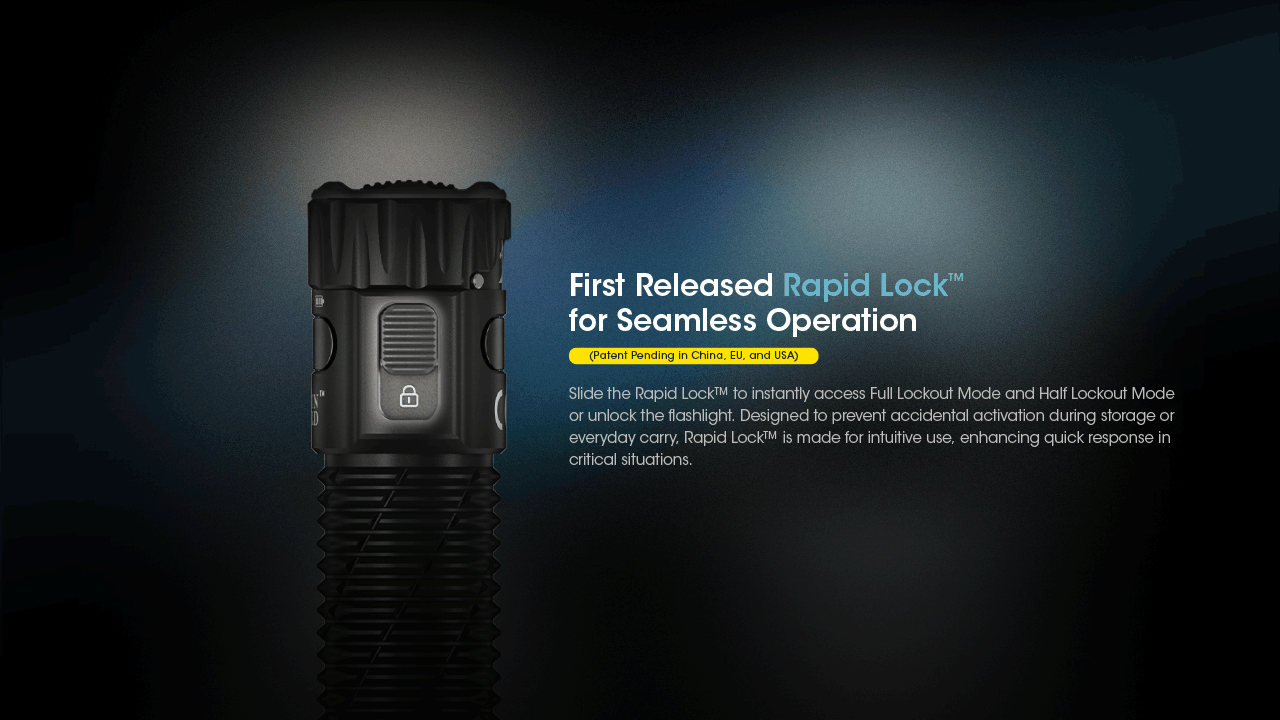

The EDC33 also introduces the innovative Rapid Lock™, ushering in a new phase of swift and seamless operation. Users can instantly access Full Lockout Mode, Half Lockout Mode and unlock the flashlight by simply sliding the Rapid Lock™, all in just one switch. The Full Lockout Mode ensures no accidental activation during storage or everyday carry, while for the Half Lockout Mode, users can activate SEARCH and LUMIN SHIELD™. Designed for intuitive use, the ergonomic design and layout of the Rapid Lock™ are tailored to improve quick responses in emergency situations.

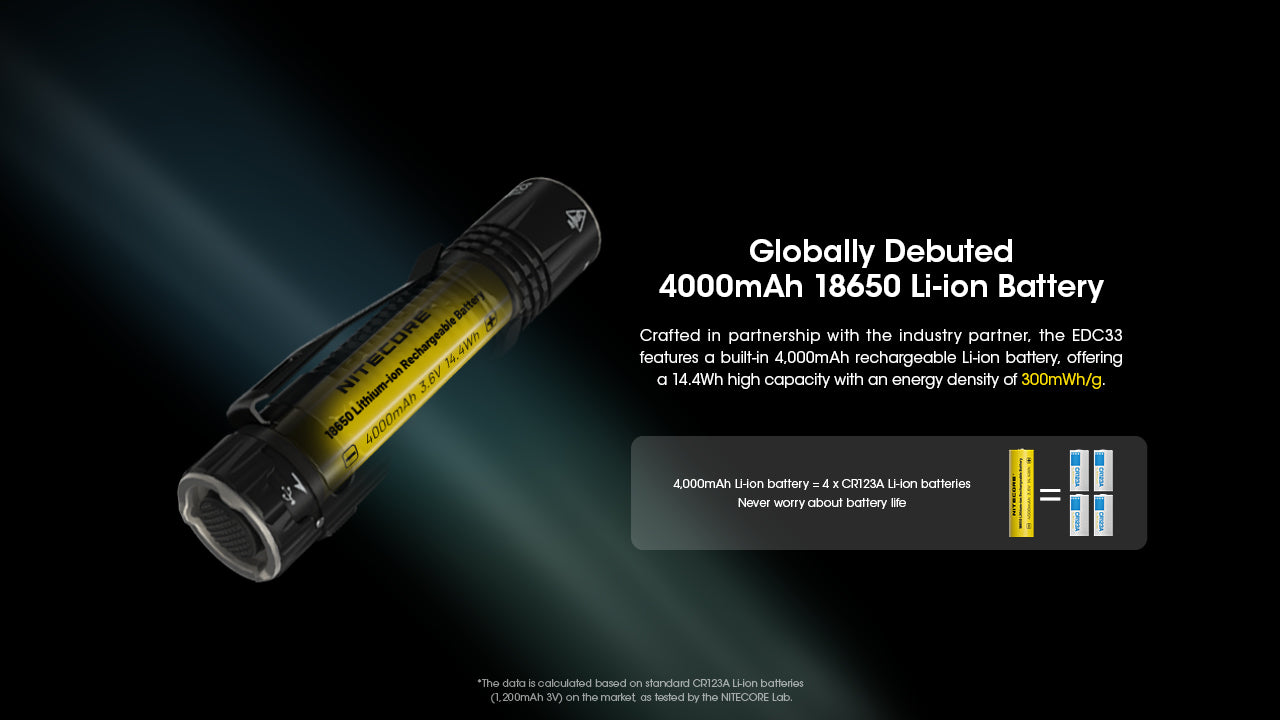

NITECORE is taking a giant leap forward with the 4,000mAh 18650 Li-ion battery. Crafted in partnership with the industry partner, the EDC33 features a built-in 4,000mAh rechargeable Li-ion battery, offering a 14.4Wh high capacity with an energy density of 300mWh/g. This capacity is equal to the energy provided by four CR123A Li-ion batteries, effectively doubling the backup power, so users will never worry about the battery life.
The EDC33 also features Tactical SEARCH Mode with 450-meter long range coverage. In this mode, its main core will emit a powerful beam of 1,700 lumens, capable of illuminating areas up to 450 meters away, with an intensity of 54,500cd. This performance surpasses that of many compact flagship flashlights, providing users with the ability to discern distant objects or potential threats. The Tactical SEARCH Mode can be activated with ease except the Full Lockout Mode, enhancing rapid responses in various unexpected situations.

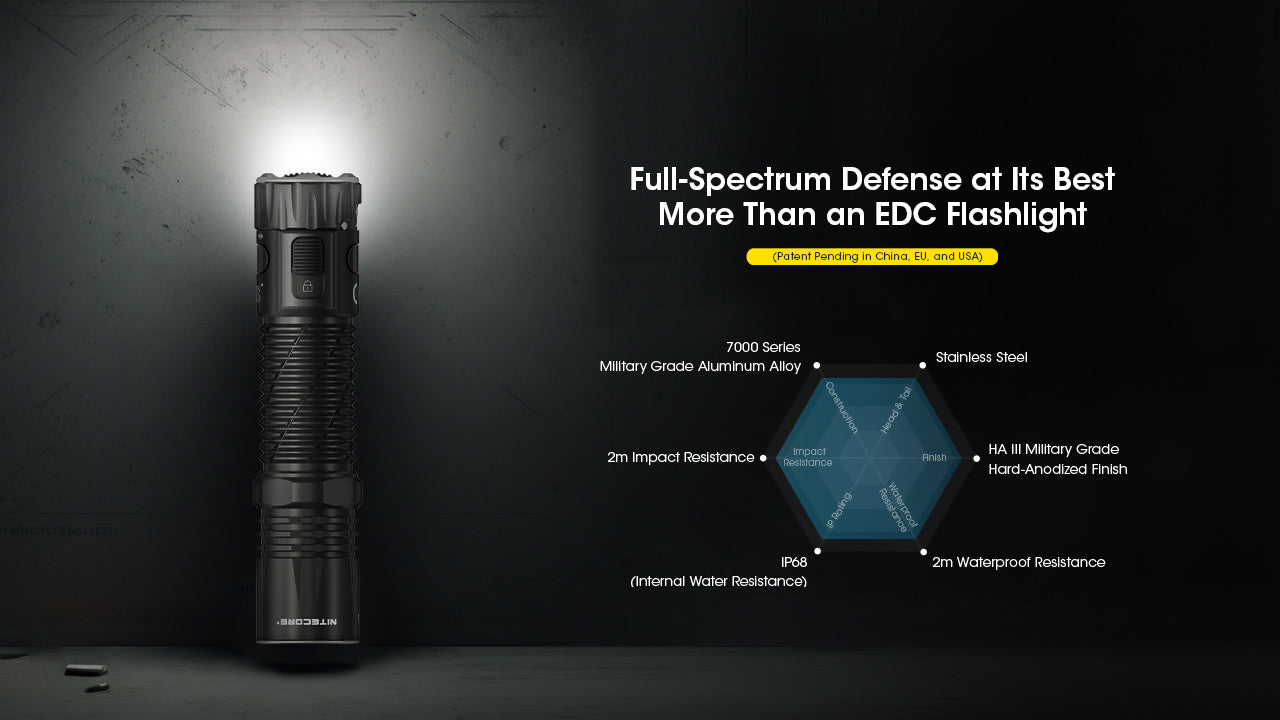

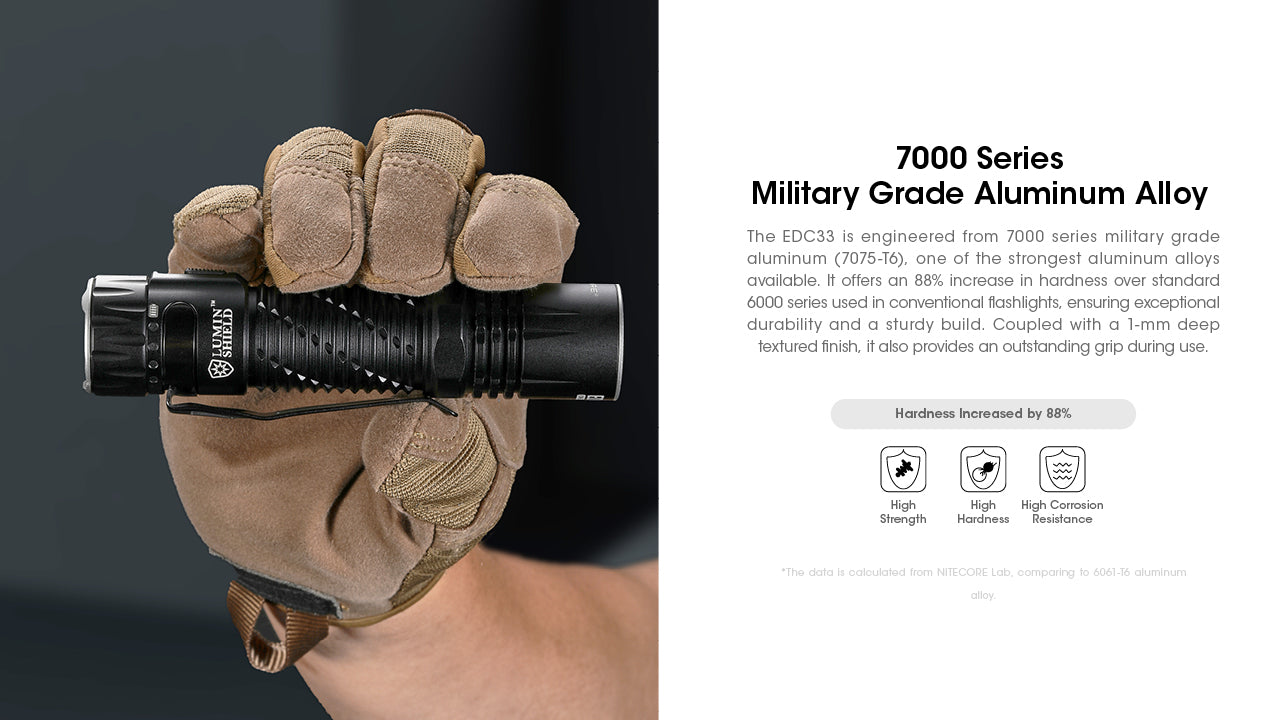

The EDC33 is engineered from 7000 series military grade aluminum (7075-T6), one of the strongest aluminum alloys available. It offers an 88% increase in hardness over standard 6000 series used in conventional flashlights, ensuring exceptional durability and a sturdy build. Coupled with a 1-mm deep textured finish, it also provides an outstanding grip during use. Other highlights include the stainless steel head and tail, HA III military grade hard-anodized finish, IP68 rating (2m submersible), ultra high corrosion resistance, and 2m impact resistance, making it a reliable companion in even the harshest conditions.

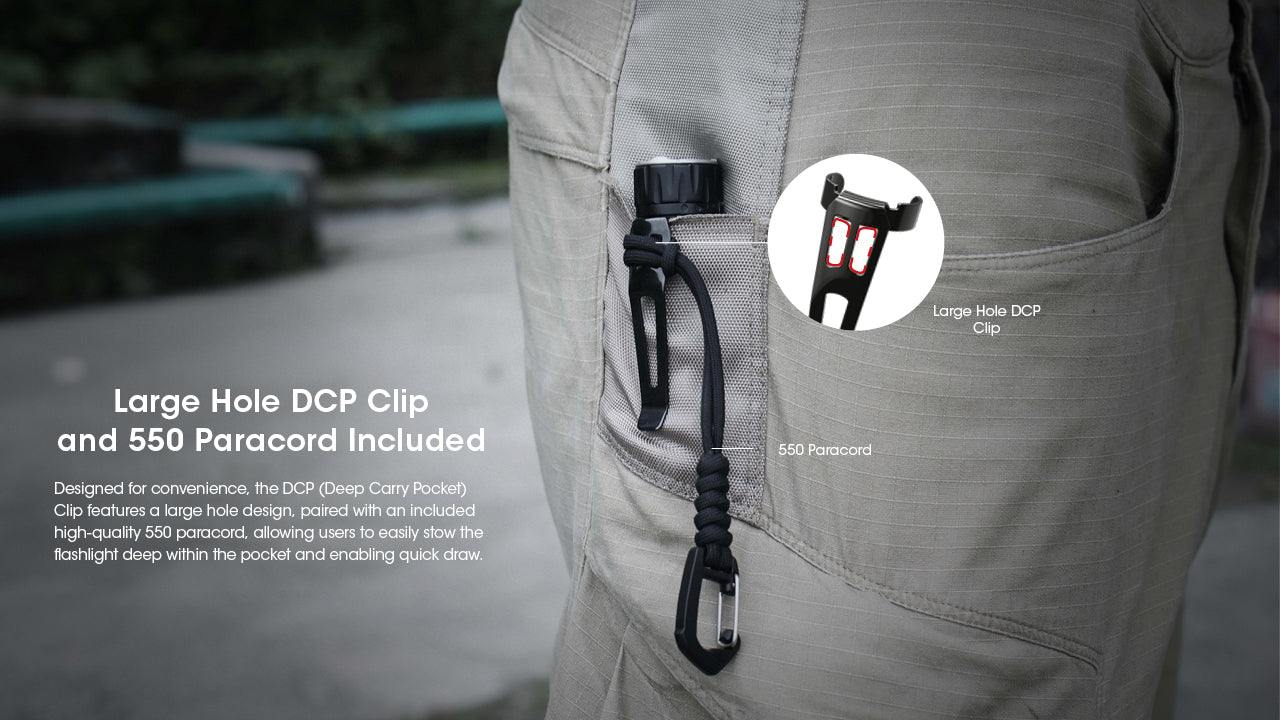

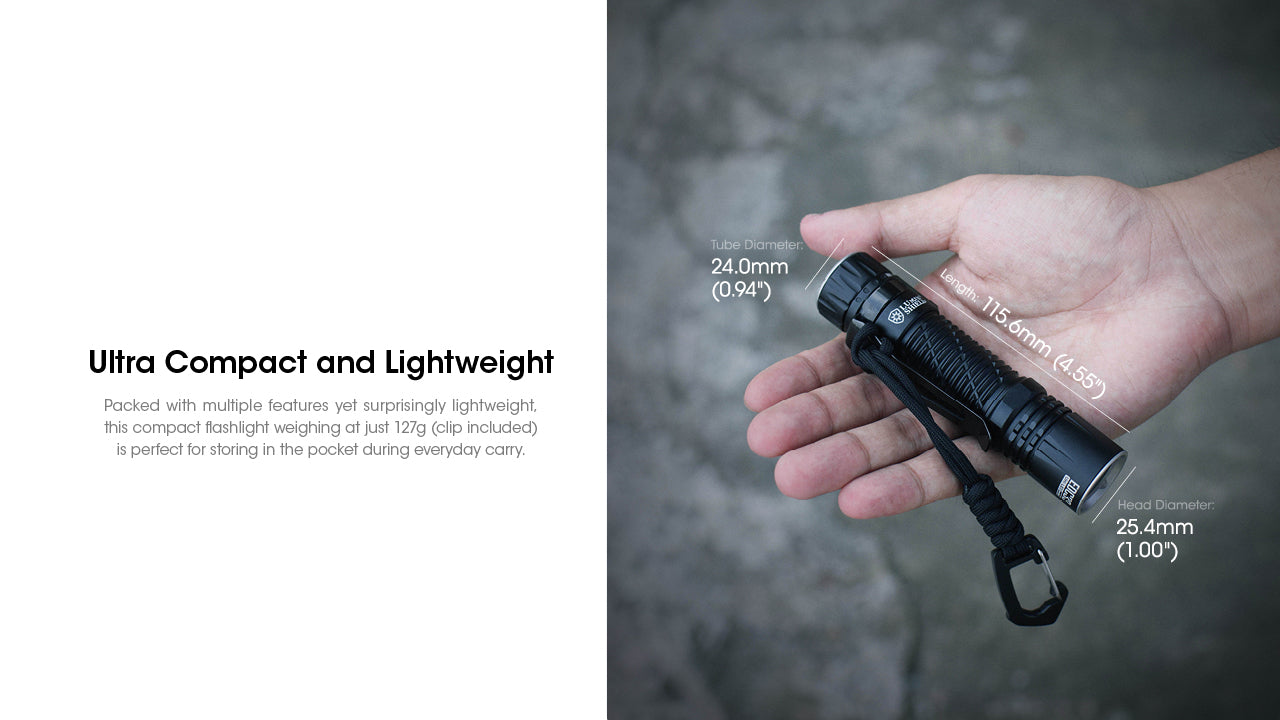

Packed with multiple features yet surprisingly lightweight, the EDC33 weighs only 127g (clip included), perfect for storing in the pocket during everyday carry. It includes a large-hole DCP (Deep Carry Pocket) Clip and a high-quality 550 paracord, allowing users to easily stow the flashlight deep within the pocket and enabling quick draw.

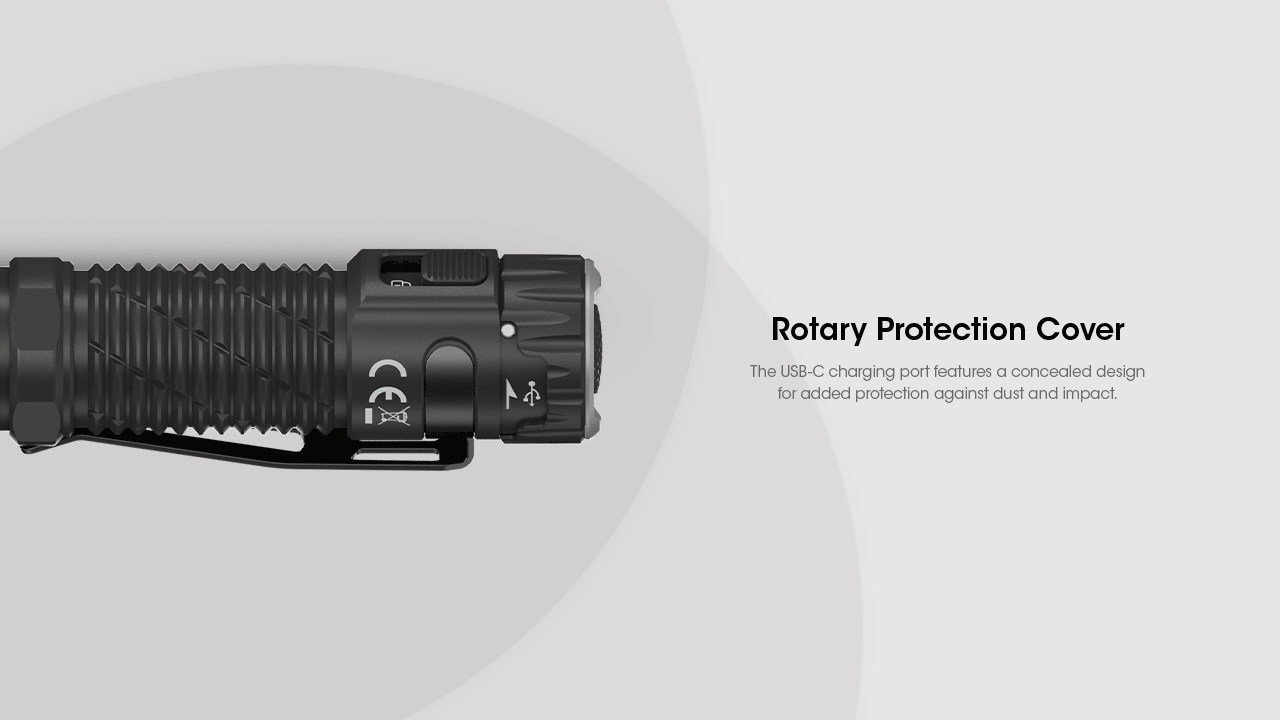

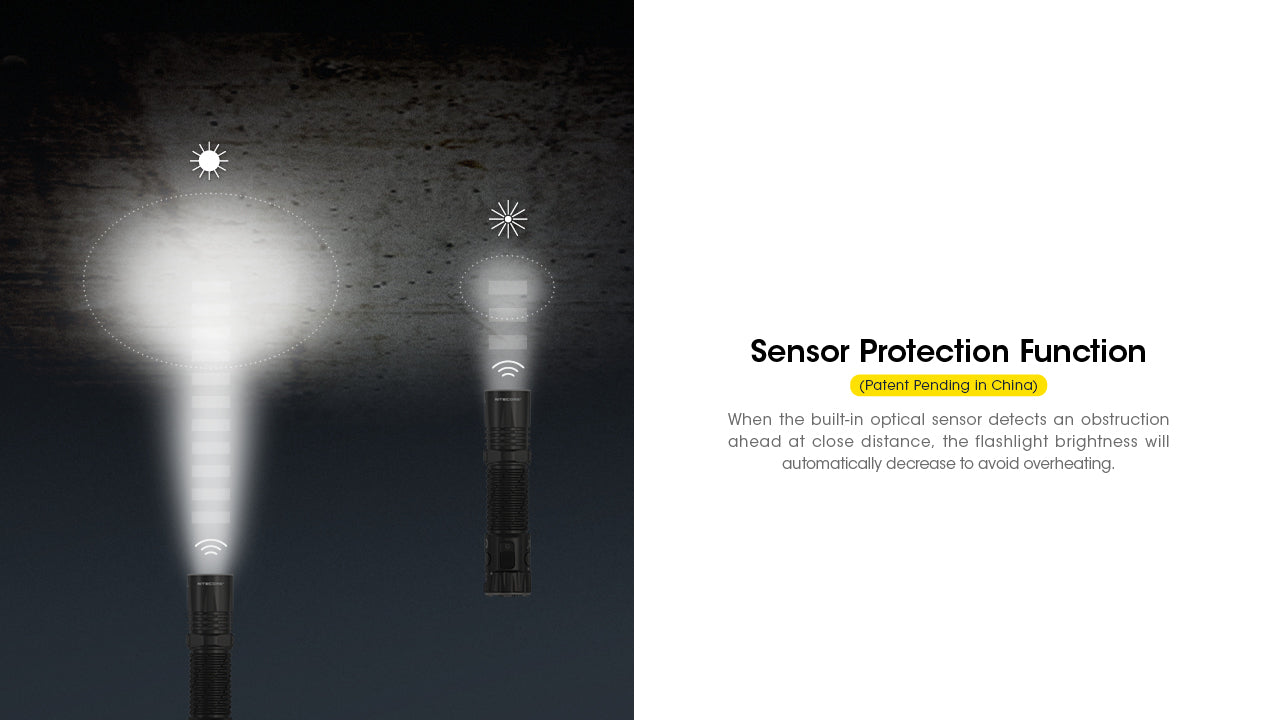

Additionally, the EDC33 is equipped with sensor protection function, rotary protection cover, optical lenses with double-sided scratch resistant coating, and an ATR (Advanced Temperature Regulation) module.
Nitecore EDC33 Specs
Lumin Shield TM (Floodlight) | Search (Spotlight) | High | Mid | Low | Ultralow | |
---|---|---|---|---|---|---|
4,000 Lumens | 1,700 Lumens | 1,200 Lumens | 300 Lumens | 70 Lumens | 5 Lumens | |
__ | __ | 2 h 31 min | 6 h 58 min | 31 h | 63h | |
400 m | 450 m | 208 m | 182 m | 93 m | 25m | |
40,505cd | 54,500cd | 10,500 cd | 8,305cd | 1,903 cd | 163cd | |
2 m (Impact Resistance) | ||||||
IP68, 2m ( Waterproof and Submersible) |
Note: The stated data is measured using the built-in Li-ion battery (4,000mAh) under laboratory conditions. The data may vary in real world use due to different environmental conditions.
-
-
Utilizes a 9-core UHi 20 MAX LED with a max output of 4,000 lumens
- Max peak beam intensity of 54,500cd and max throw of 450 meters
-
4 brightness levels to cycle through; SEARCH and LUMIN SHIELDTM' available
- Powered by a built-in 4,000mAh Li-ion battery to provide a runtime up to 63 hours
- Rapid LockTM available for Half Lockout Mode and Full Lockout Mode
-

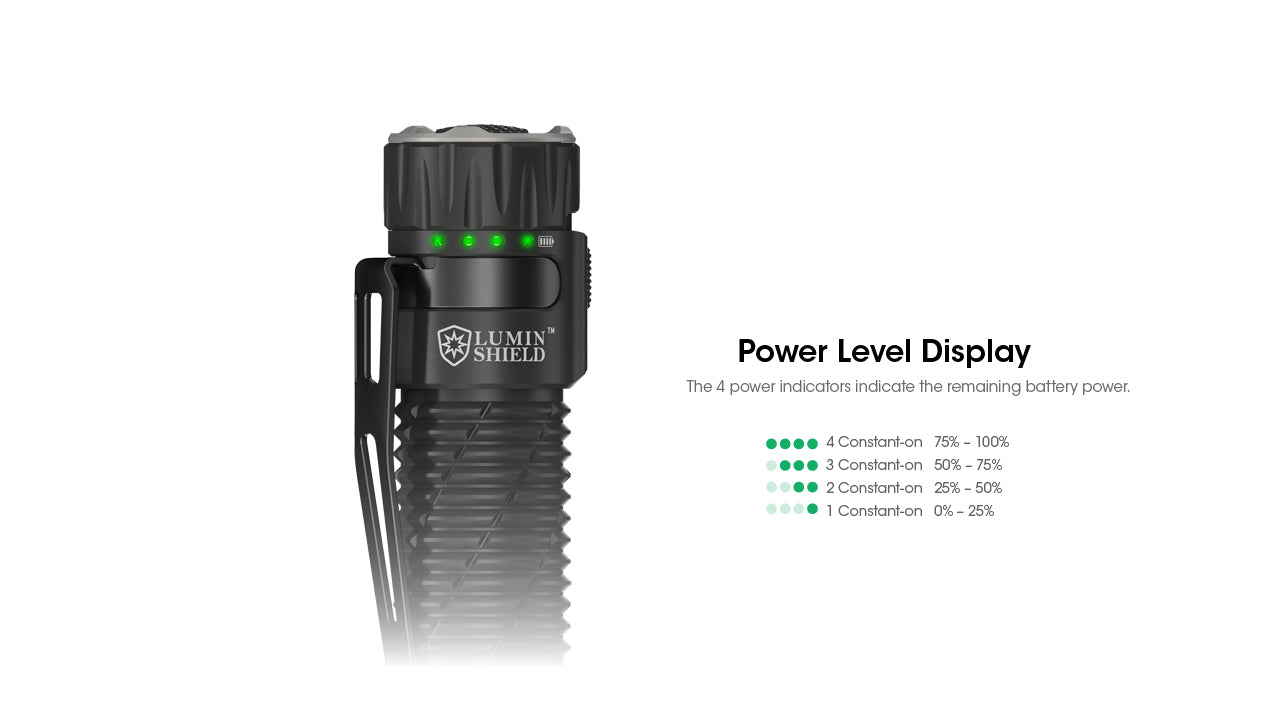

Power indicators indicate the remaining battery power
- Intelligent Li-ion battery charging circuit with a USB-C charging port
-

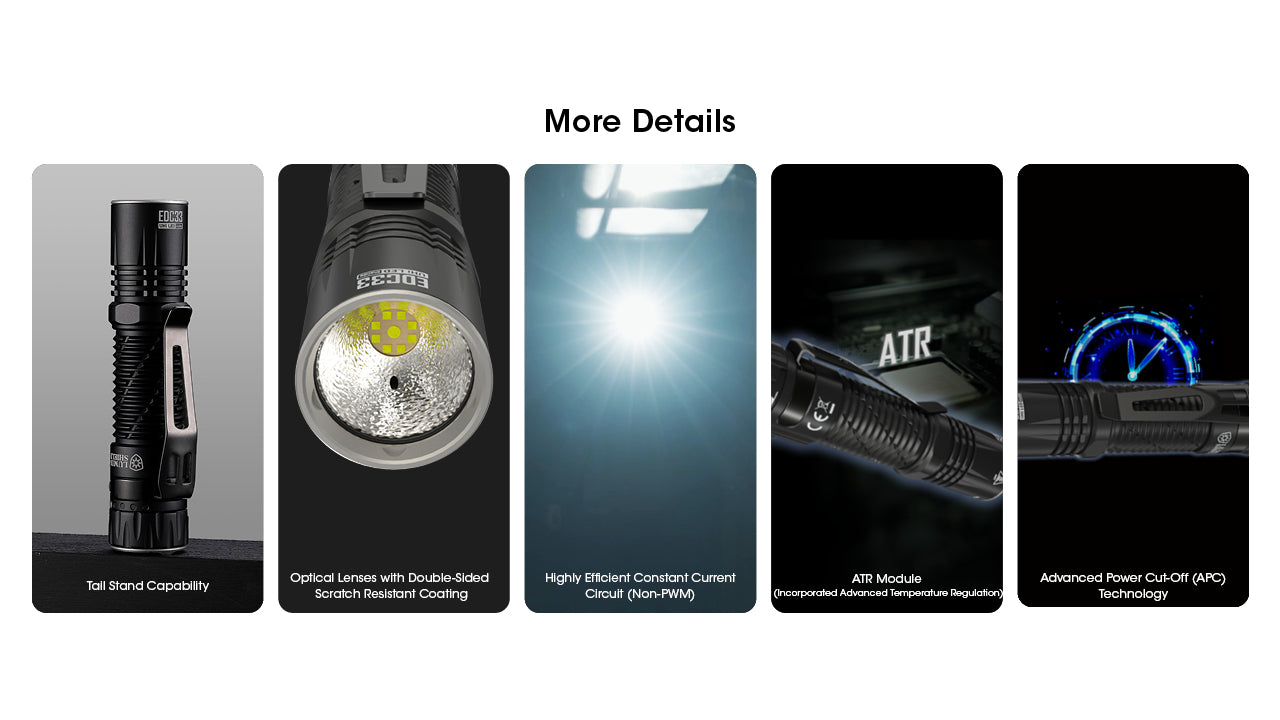

Advanced Power Cut-Off (APC) technology for an ultralow standby power consumption
-
Highly efficient constant current circuit provides a stable output
-
Incorporated Advanced Temperature Regulation (ATR) module (Patent No. ZL201510534543.6)
-
Optical lenses with double-sided scratch resistant coating
- Constructed from military grade aluminum alloy 7075-T6
-
HA III military grade hard-anodized finish
- Tail stand capability
-
Waterproof and dustproof rating in accordance with IP68 (2 meters submersible)
-
Impact resistant to 2 meters
- Length: 115.6 mm (4.55")
- Head Diameter: 25.4mm (1.00”)
- Tube Diameter: 24.0mm (0.94")
- Weight: 121 grams (4.27 oz) (Clip Not Included) 127 grams (4.48 oz) (Clip Included)

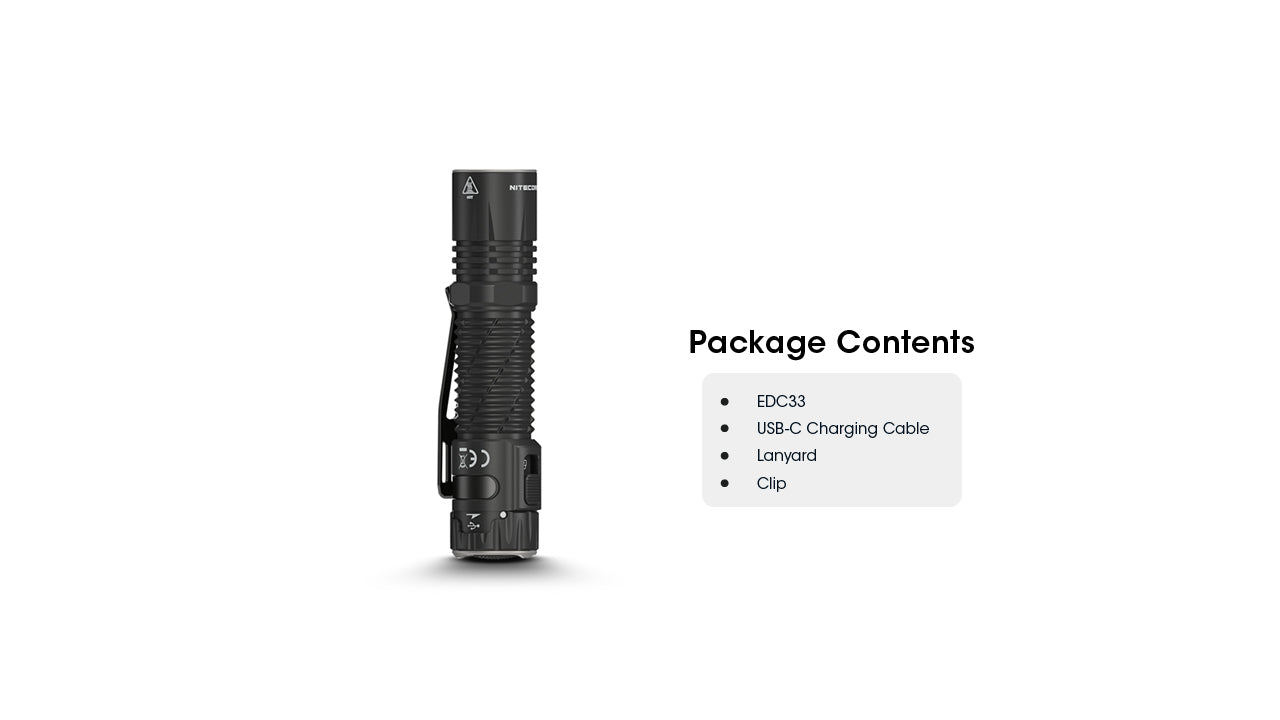

- NITECORE EDC33
- USB - C Charging Cable
-
Lanyard
- Clip
-
-
All NITECORE products are warranted for quality. Any DOA / defective product can be exchanged for a replacement through a local distributor/dealer within 15 days of purchase. After that, all defective / malfunctioning NITECORE& products can be repaired free of charge within 24 months from the date of purchase. Beyond 24 months, a limited warranty applies, covering the cost of labor and maintenance, but not the cost of accessories or replacement parts. The warranty will be nullified if 1. the product(s) is/are broken down, reconstructed and/or modified by unauthorized parties; 2. the product(s) is/are damaged due to improper use.
For the latest information on NITECOREs products and services, please contact a local NITECORF distributor or send an email to service©nitecore.com * All images, texts and statements specified herein this user manual are for reference purposes only. Should any discrepancy occur between this manual and information specified on www.nitecore.com, Sysmax Innovations Co., Ltd. reserves the rights to interpret and amend the content of this document at any time without prior notice.2. The product(s) is/are damaged through improper use.
3. The product(s) is/are damaged by leakage of batteries.
