Special Note on packaging :
Eagletac has not completely upgraded their packaging and is still using the previous packaging of 1130 led lumens.
Only an orange label shown above has the upgraded 1305 led lumens.

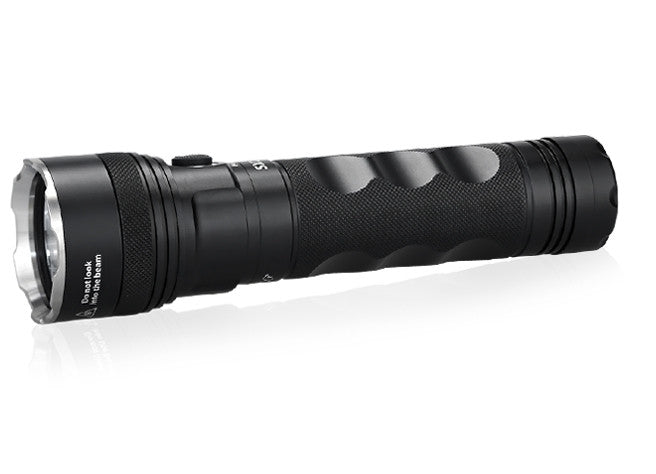

Overview

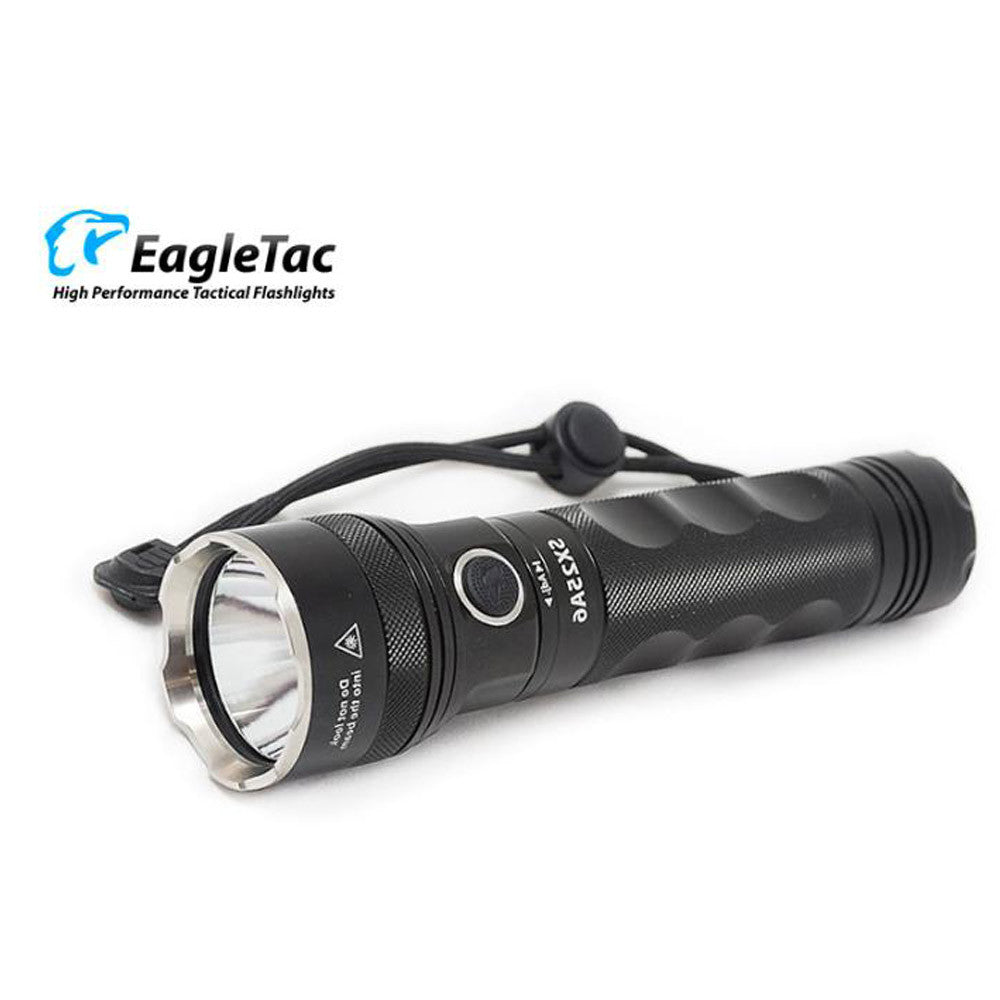

The base model is already a great LED flashlight with its smooth aluminum bezel, CREE XM-L2 U2 LED that can blast out a light beam that has been measured at 1305 lumens and can run for 1.8 hours, C4000 ST circuit that has a synchronous buck with an efficiency of up to 95%, smooth aluminum reflector that works with the LED to get a maximum throw distance of 396 meters and more. It can be a lot more when it is paired up with the YRGB Kit that includes an ET47 diffuser filter, ET47 yellow filter, ET47 red filter, ET47 green filter and ET47 blue filter among others.
Eagletac SX25A6 (6xAA, XM-L2) flashlight review, by Selfbuilt
EagleTac SX25A6 Spec
| LED | Brightness Level | Waterproof | Specifications (Length, Body Diameter, Head Diameter) | Weight | Battery |
|---|---|---|---|---|---|
| CREE XM-L2 | 4/7 output levels | IPX-8 | 173mm (Length) x 47mm (Bezel Diameter) | 260g | 6xAA |
| Four Brightness Level (Regular Mode) | |||
|---|---|---|---|
| Turbo | High | Low | |
| Output (LED lumens) | 1305-1159 | 537 | 10 |
| Output (ANSI FL-1 lumens) | 1049-932 | 439 | 9 |
| Runtime | 1.8h | 3.3h | 200h |
| Distance(396m) | |||
-
Battery Type
6 x AA
1.5V alkaline/lithium or 1.2V NiMH
Compatible battery diameter/length
Diameter: 14-14.6mm
Length : 50-50.5mm

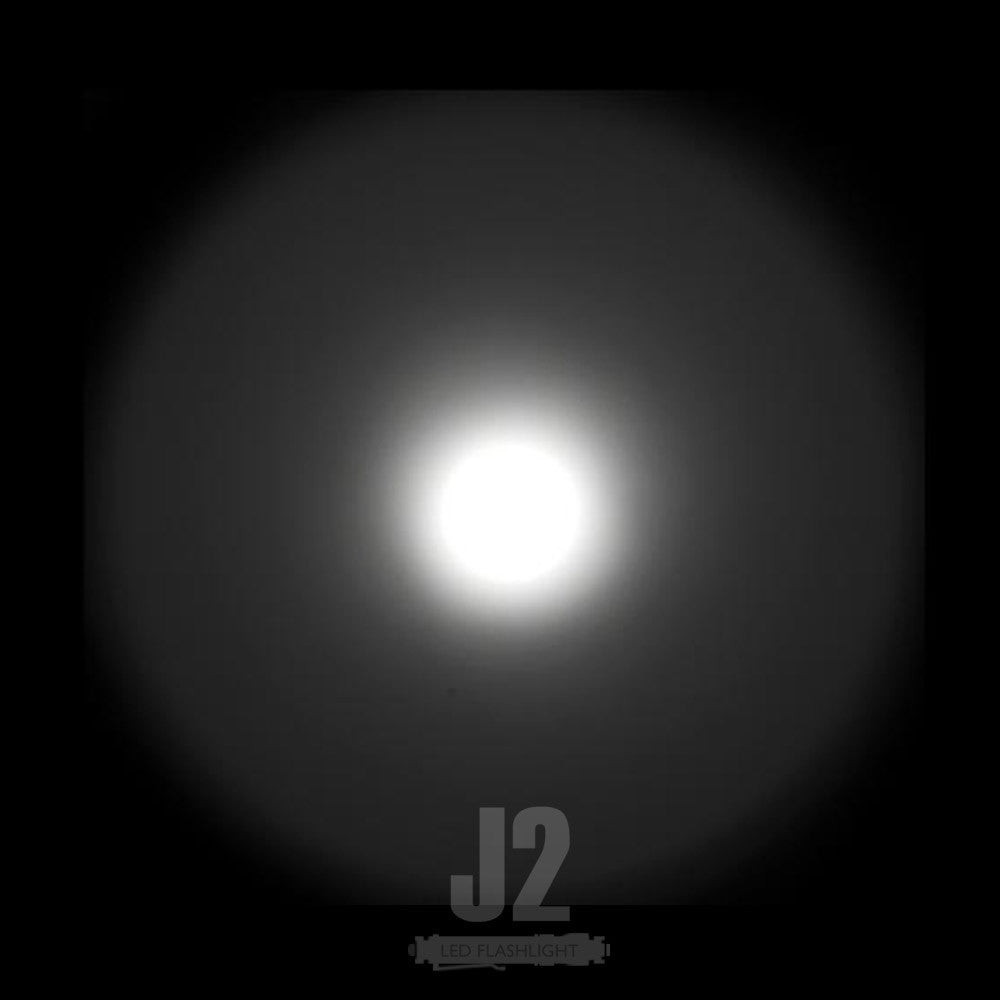

Beam Profile - XM-L2 U2
Center lux: 39,300 lux
Center spot angle: 6°
Spill light angle: 57°
Beam distance: 433 yards / 396 meters
Output and Runtime
Three brightness levels (Regular mode)
Led lumen: 1305-1159/537/10
ANSI FL-1 lumen: 10495-932/439/9
Runtime: 1.8/3.3/200+ hours

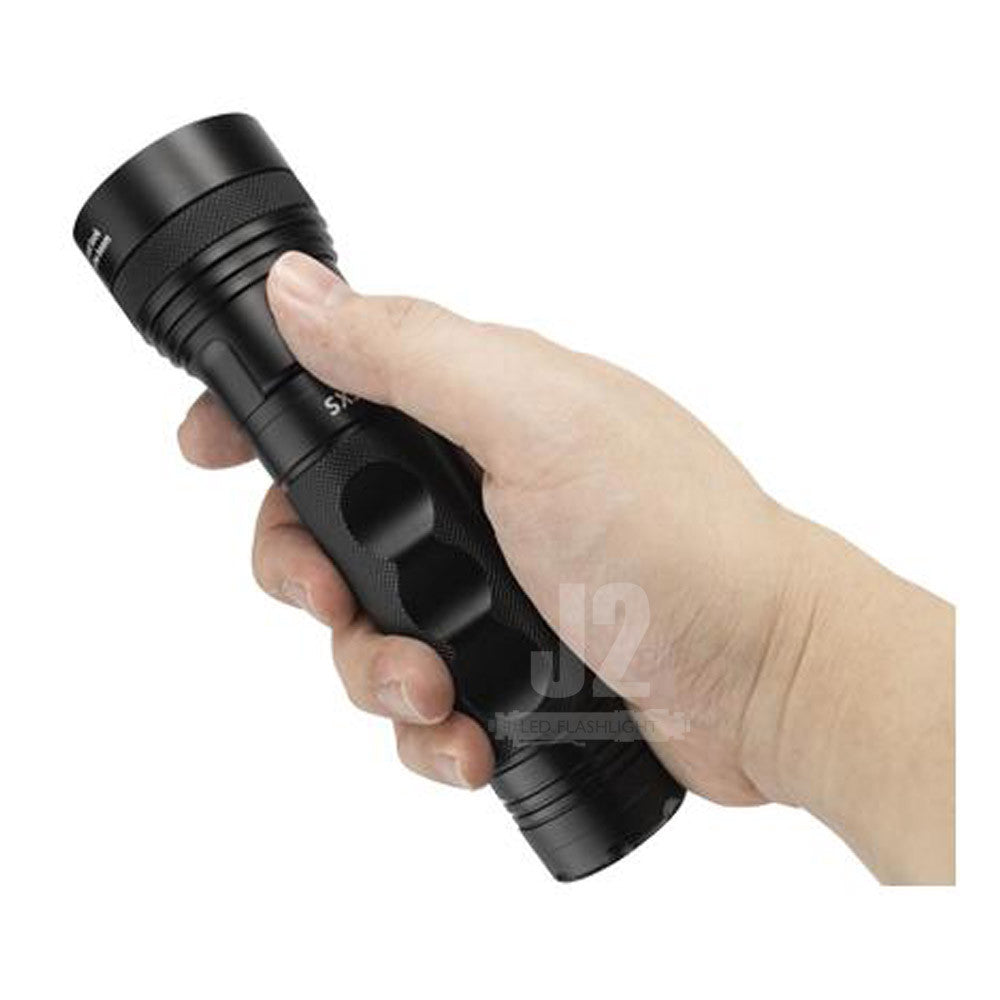

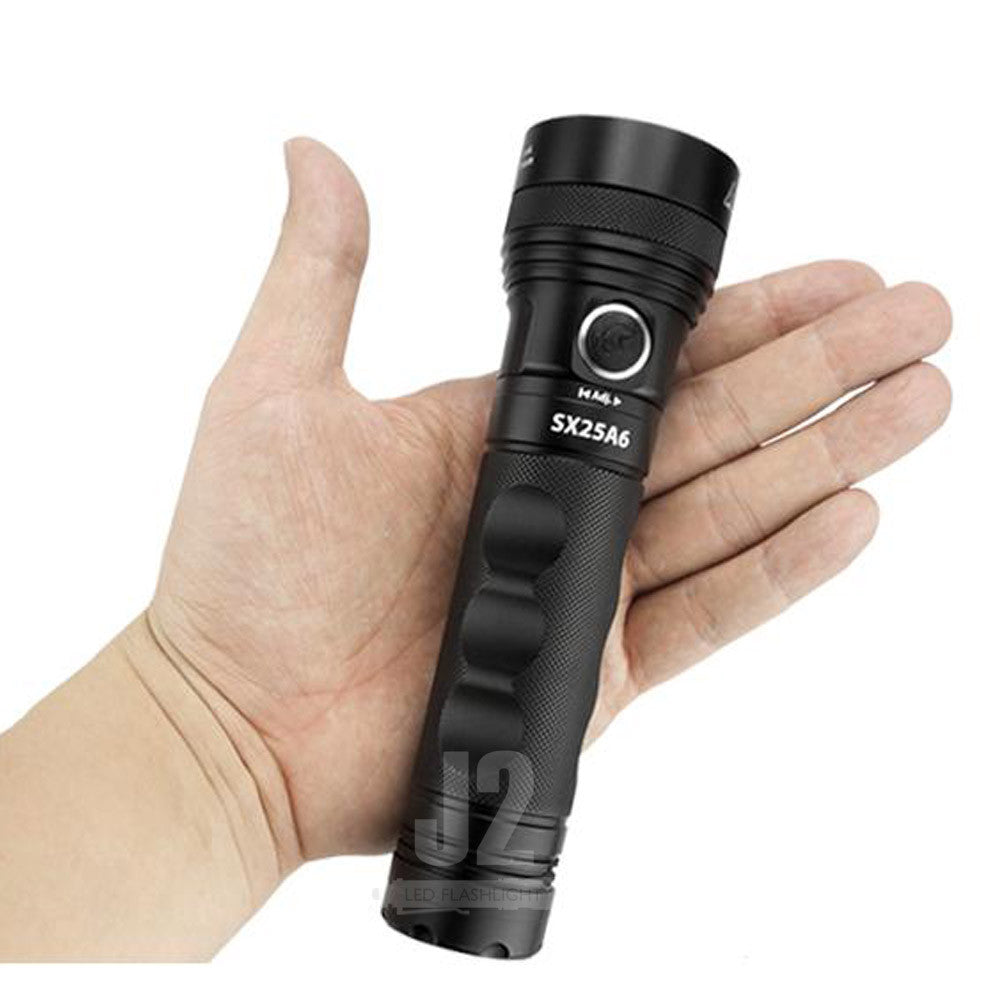

Supreme handling

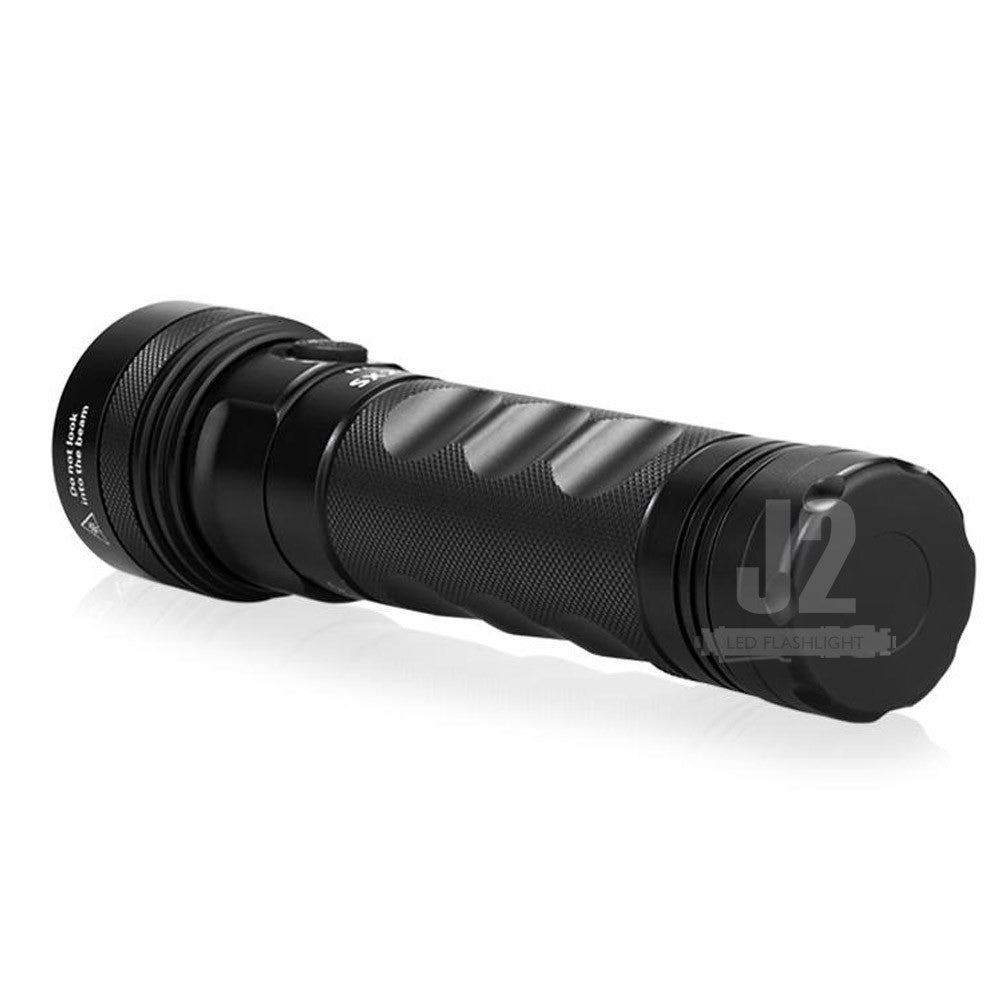

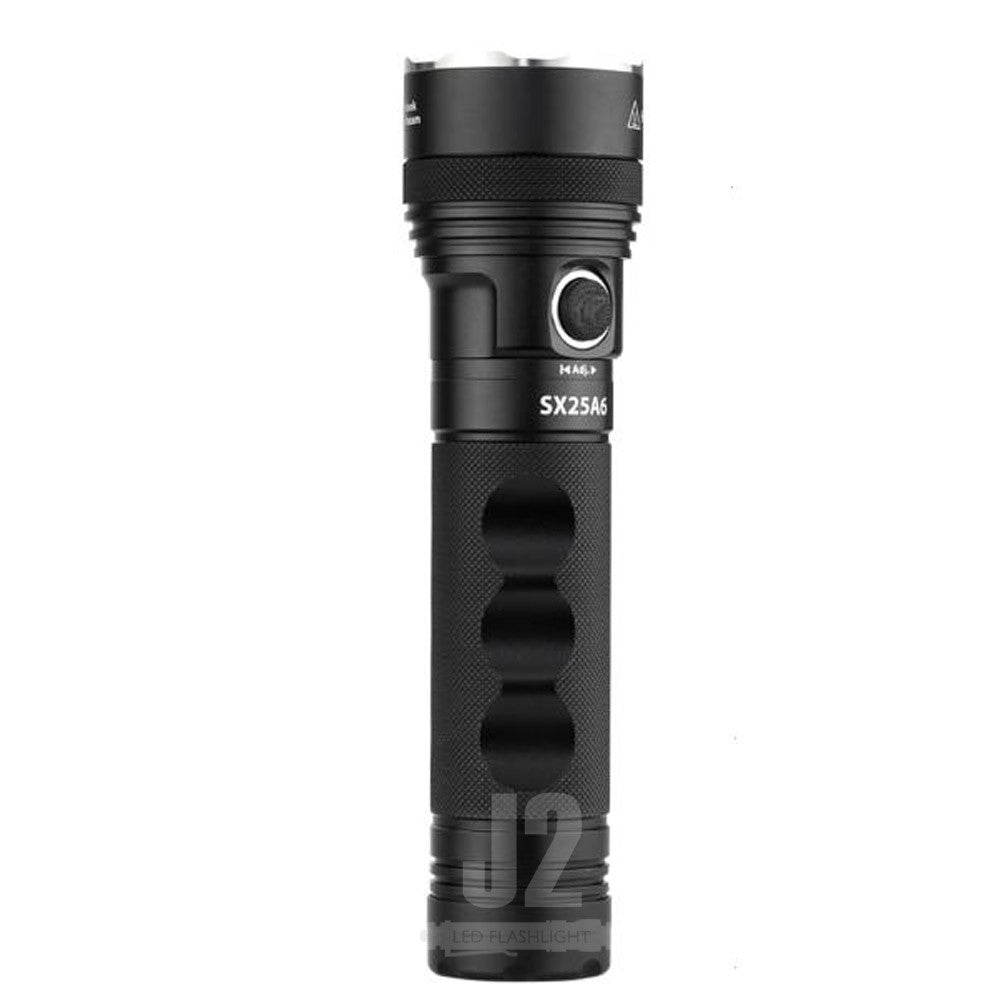

The CNC precisely cut and rolled square-shape knurling provides a sure grip throughout the entire flashlight body. The super compact size and light travelling weight make it very handy to operate, even with one hand. It also allows tail-stand for ceiling bounce.
HA-III hard anodization aerospace aluminum
Innovative design

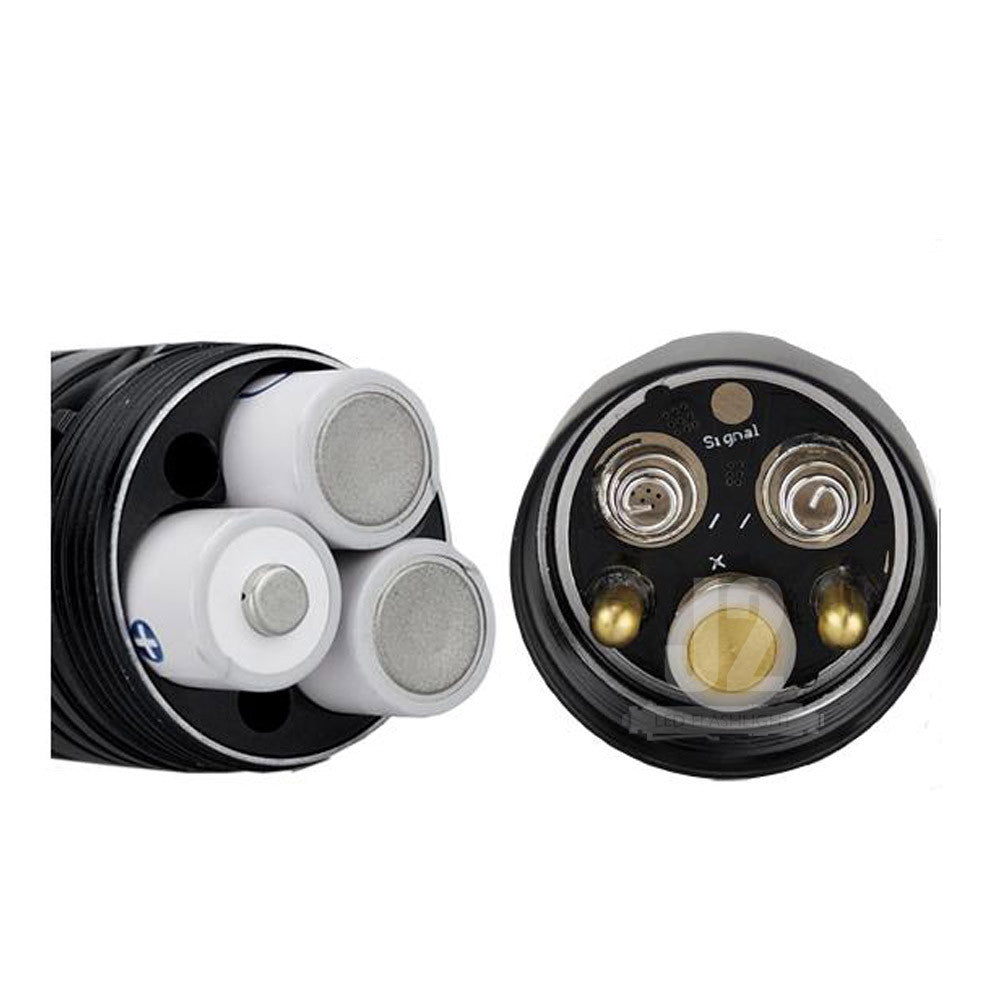

Slot load battery design
This patent pending (US/HK/CN) battery compartment design allows users to directly insert batteries to the flashlight body tube to use without any battery tray or magazine.

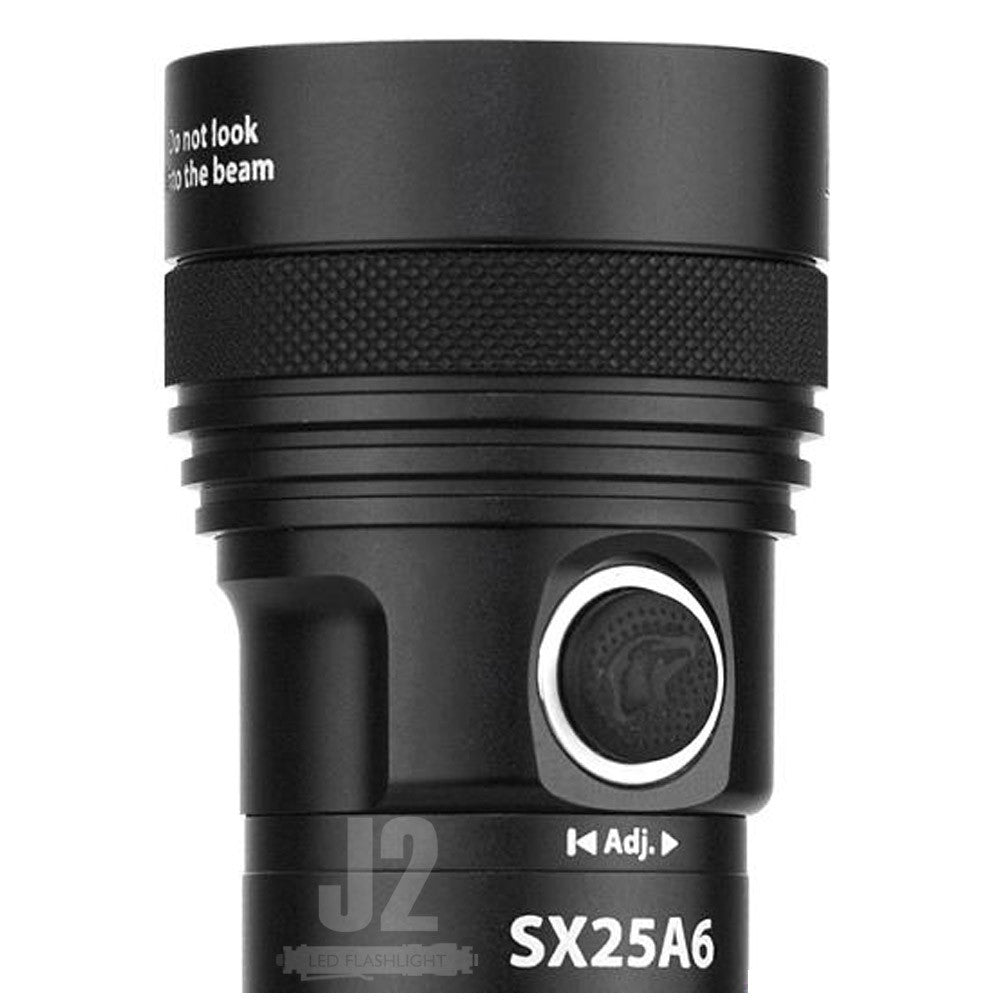

Multiple brightness output

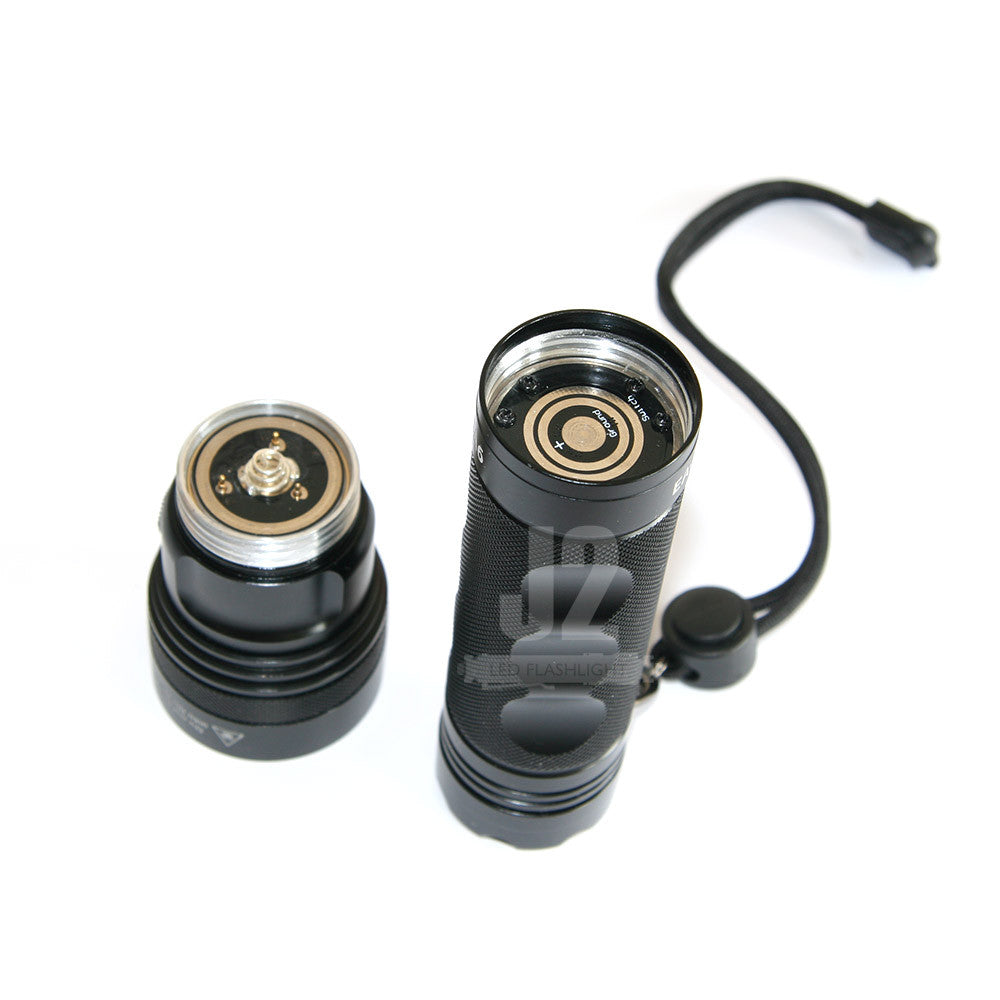

We use heavy duty gold plated brass contact to detect head movement for changing output brightness. This also allow users to pre-select output before turning on the flashlight.
Spring loaded battery w/ reverse polarity protection
Physical structure method is used to protect against battery reverse polarity while ensuring maximum circuit efficiency. Highly conductive silver coated brass springs are used at both positive and negative terminal to ensure solid conductivity.

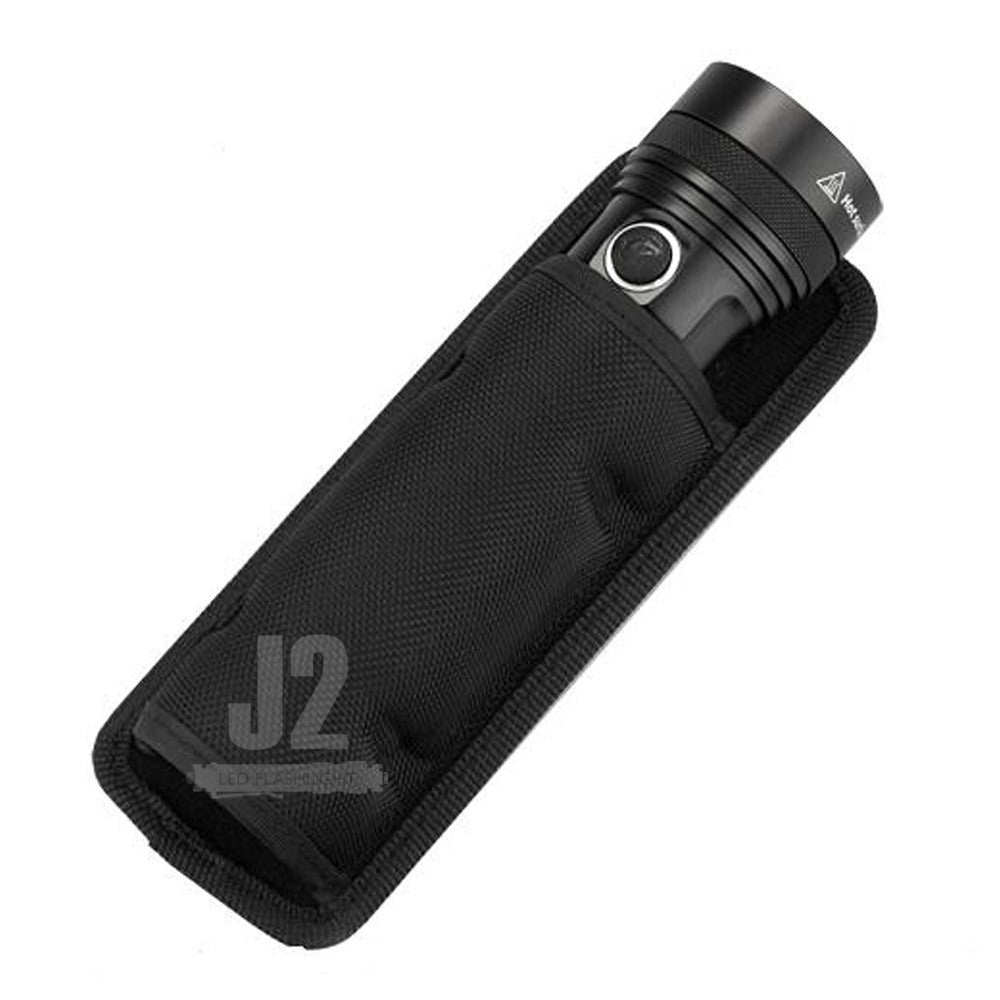

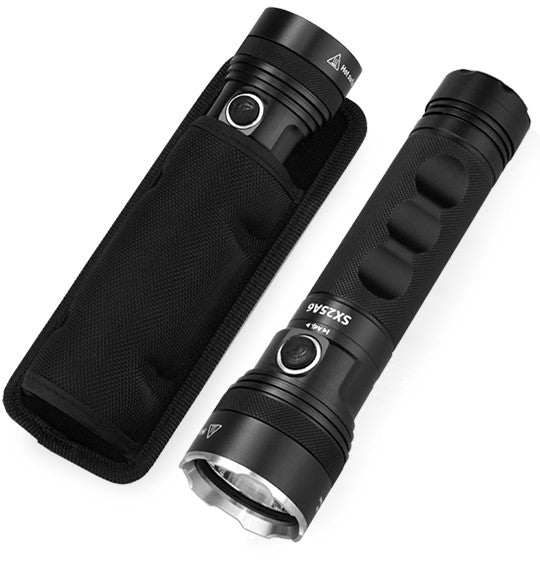

Rigid nylon holster
Heavy duty nylon holster designed for everyday wearing. Open top design makes flashlight withdrawal quick and easy.
Secure Self retention device
Our holster features a locking device to securely hold the flashlight inside the holster.
Easy to use interface
Self intuitive, easy-to-use, nothing to memorize.
Programmable settings
To switch between tactical mode (default) and regular mode, turn on the flashlight at 1st level, dial to 2nd level and then back to 1st level for five times within five seconds.
Turbo boost technology
This is activated every time you turn on at turbo output setting. It offers 25% more power to the LED for the first 200 seconds at turbo mode. It’s normal for the light to get warm at such level. Do not leave the light running unintended.
Excellent runtime & efficiency
SX25A6 runs for 200+ hours on its lowest brightness level. The current regulated circuit design allows constant output throughout its runtime for all output levels without LED flicking.

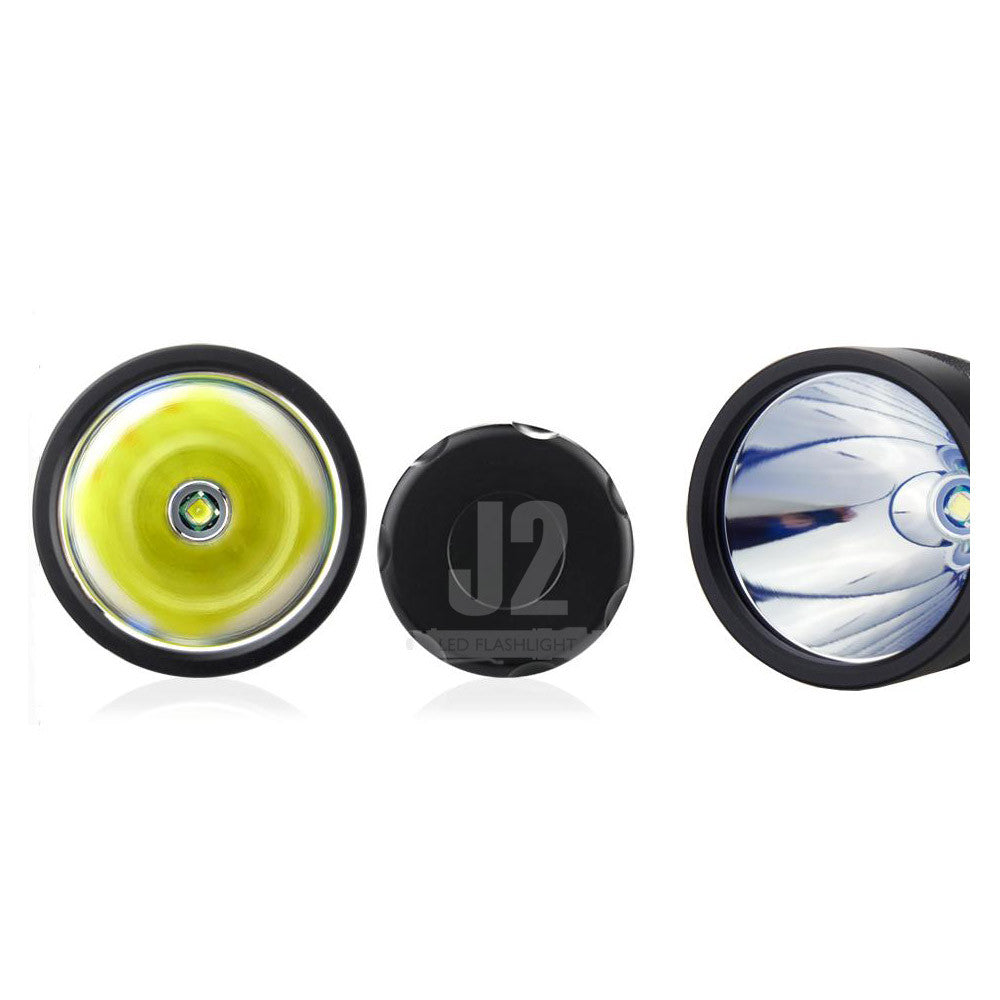

Reflector
Smooth aluminum reflector -
- Head Diameter: 1.8 inches (47 mm)
- Body Diameter: 1.4 inches (36 mm)
- Length: 6.8 inches (173 mm)
- Weight: 9.2 ounces (260 grams), Product weight exclude battery
-

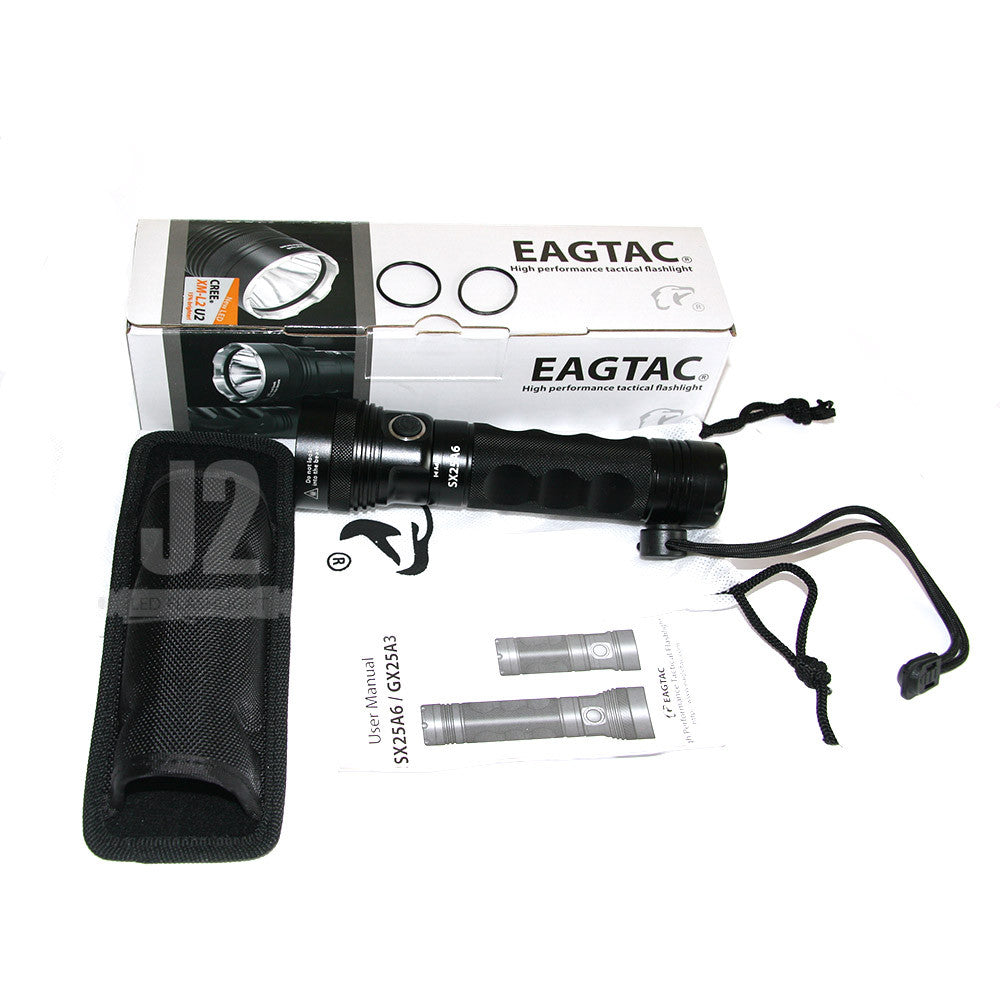

- SX25A6 flashlight
- Spare o-rings
- User Manual
- Mil-Spec Para-cord Lanyard w/ quick attachment clip
- Heavy Duty Nylon Holster w/ self- retention device and open-top design
