Description
Overview

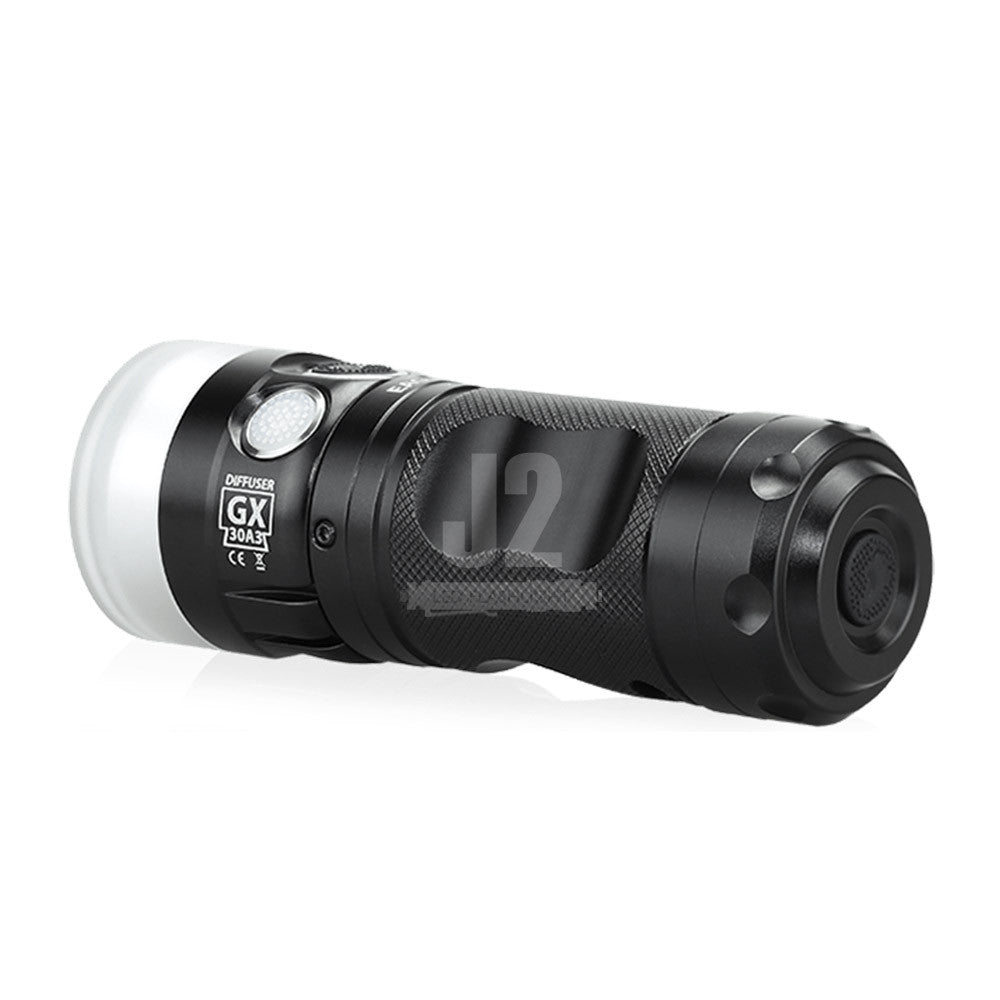

A revolutionary design in flashlight industry which combined both the spot and diffused output in one. Has a diffuser head design and features an innovative two buttons control that allows user to conveniently operate the light with one-hand only. Allows users to directly insert batteries with its slot load battery design.
EagleTac GX30A3D Spec
| Tactical Flashlight | YES |
|---|
| LED | Brightness Level | Waterproof | Specifications (Width, Length, Diameter) | Weight | Battery |
|---|---|---|---|---|---|
| CREE XP-L HI V3 Cool White LED | 5 output levels | IPX-8 | 109mm (L)x35.5mm (Body Dia.)x39.5mm(Head Dia.) | 137g(excludes batteries) | 3 x AA |
| Output and Runtime | Max | High | Med | Low | Very Low |
|---|---|---|---|---|---|
| Five brightness levels (SPOT only) | |||||
| LED Lumen | 1330-1043 | 670 | 252 | 92 | 10 |
| ANSI FL-1 lumen | 980-835 | 540 | 205 | 74 | 8 |
| Runtime(hours) | 0.9h | 1.4h | 3.8h | 11h | 100h |
| Five brightness levels (Diffuser only) | |||||
| LED lumen: | 1000 | 462 | 190 | 63 | 8 |
| Runtime(hours) | 1h | 1.6h | 5h | 18h | 100h |
| Five brightness levels (SPOT + Diffuser) | |||||
| SPOT LED lumen: | 730 | 370 | 132 | 40 | 5 |
| Diffuser LED lumen: | 710 | 355 | 100 | 35 | 4 |
| Runtime: | 1h | 1.5h | 4h | 12h | 100h |
-
- LED direct soldering on copper for maximum heat sink ability
- User replaceable glass lens
- Battery reverse polarity protection
- Ultra low internal resistance phosphor bronze springs (silver coated)

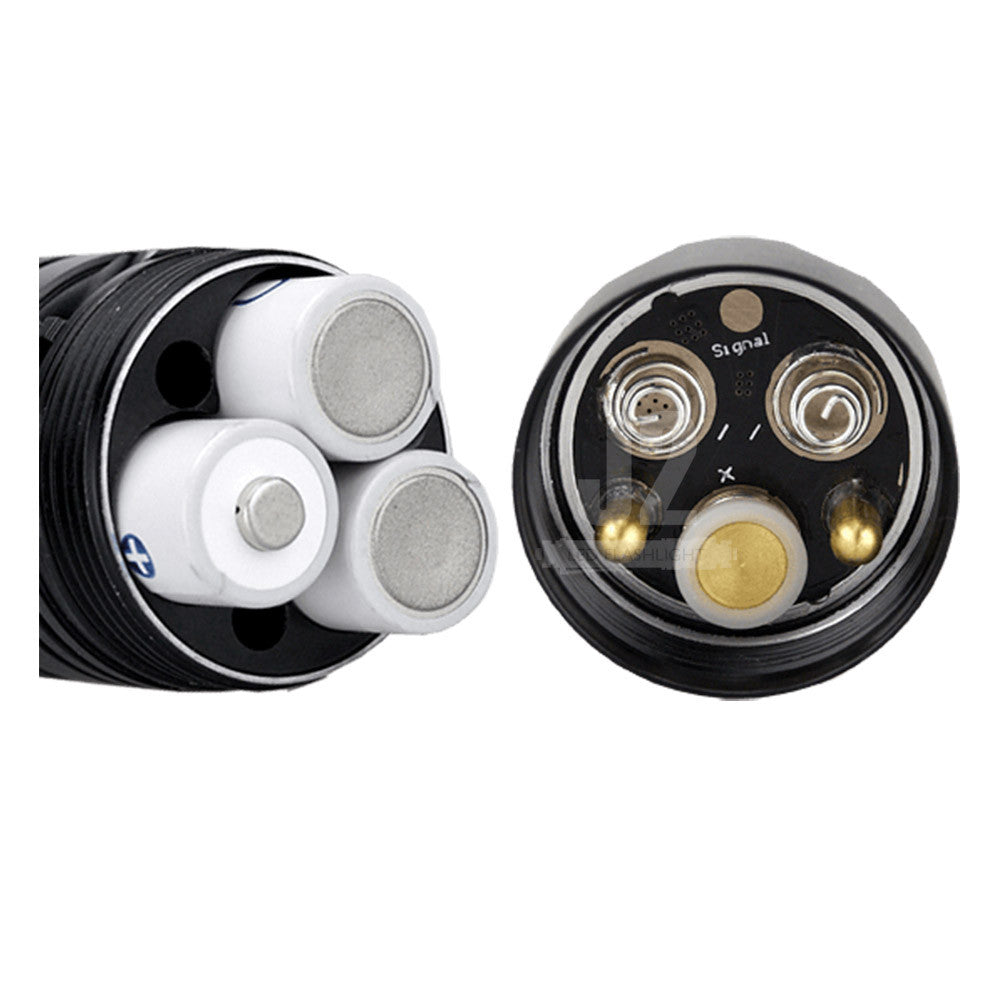

- Spring loaded positive and negative terminal
- Tail stand
- Tail-cap w/ switch for kit model
3 x AA battery
Operating Voltage Range: 2.7 V - 6 V

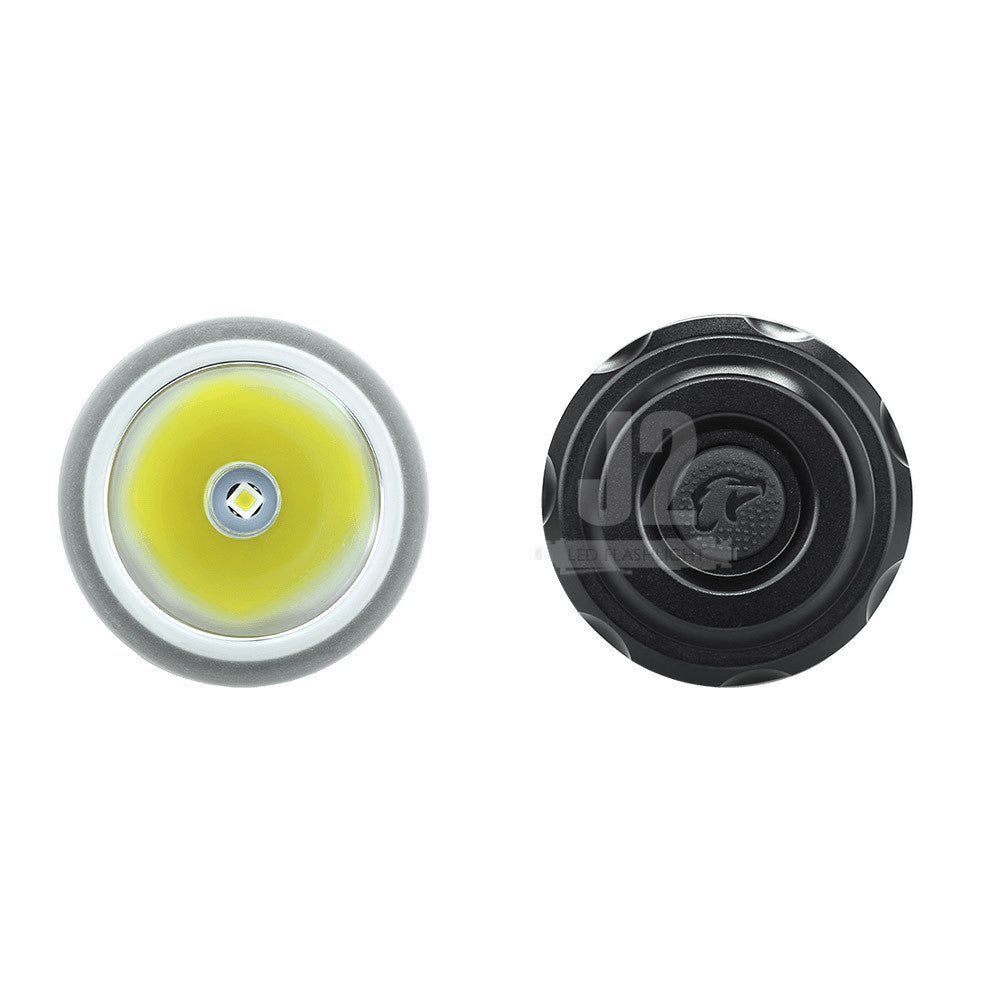

CREE XP-L HI V3 Cool White LED
Max output LED lumen: 1330
Max output ANSI FL-1 lumen: 980
Three hidden auxiliary outputs
Disoriented Strobe/Beacon
(1.67Hz)/S.O.S. -
- Length: 4.3 inches (109 mm)
- Body Diameter: 1.4 inches (35.5 mm)
- Head Diameter: 1.6 inches (39.5 mm)
- Body Weight (excluding batteries): 4.8 ounces (137 grams)
-
- User’s manual
- Mil-Spec Para-cord Lanyard w/ quick attachment clip
- Comes with tailcap w/ switch and tail-standing ability
- Signal connection through the body tube for rear accessories add-on

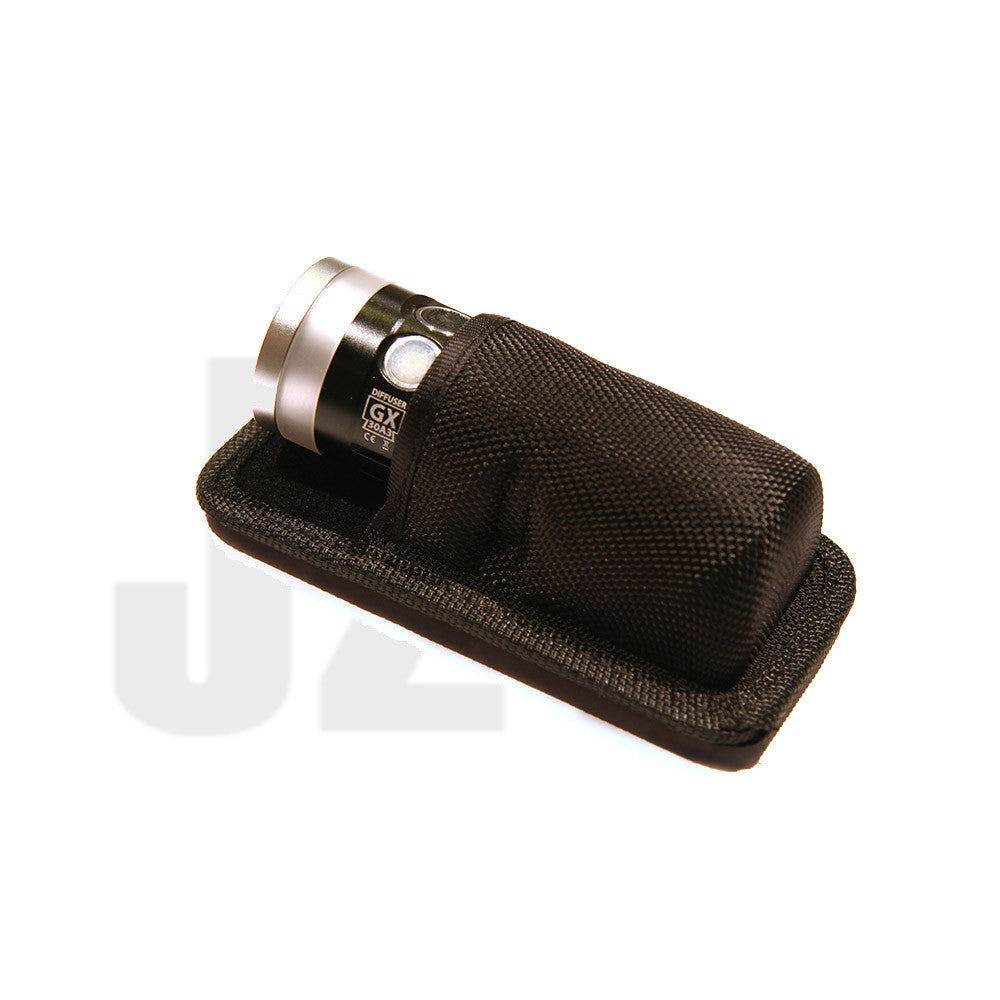

- Heavy duty nylon holster w/ self-retention device and open-top design
-
All EagleTac flashlights are designed to use “button-top” battery (battery with protruding positive terminal). For rechargeable li-ion battery, use only EagleTac li-ion battery, or other protected li-ion battery with compatible length and diameter. Before using the battery, check and ensure the battery outer wrapping (the isolating plastic film that wraps around the metal housing of the battery) is complete. Broken battery wrapping may lead to short circuit and damage to the flashlight.
Lithium and Li-ion battery can explode or cause burns if disassembled, shorted, or exposed to high temperature. Do not mix new and used batteries. Do not mix batteries with different brand, capacity, voltage, or install batteries backwards.
NiMH rechargeable battery may release gas during discharge. If you experience an inflated switch boot or find high pressure being built inside the flashlight, switch off the flashlight immediately. Slowly loosen the tail-cap to reduce the internal pressure and replace all batteries.
